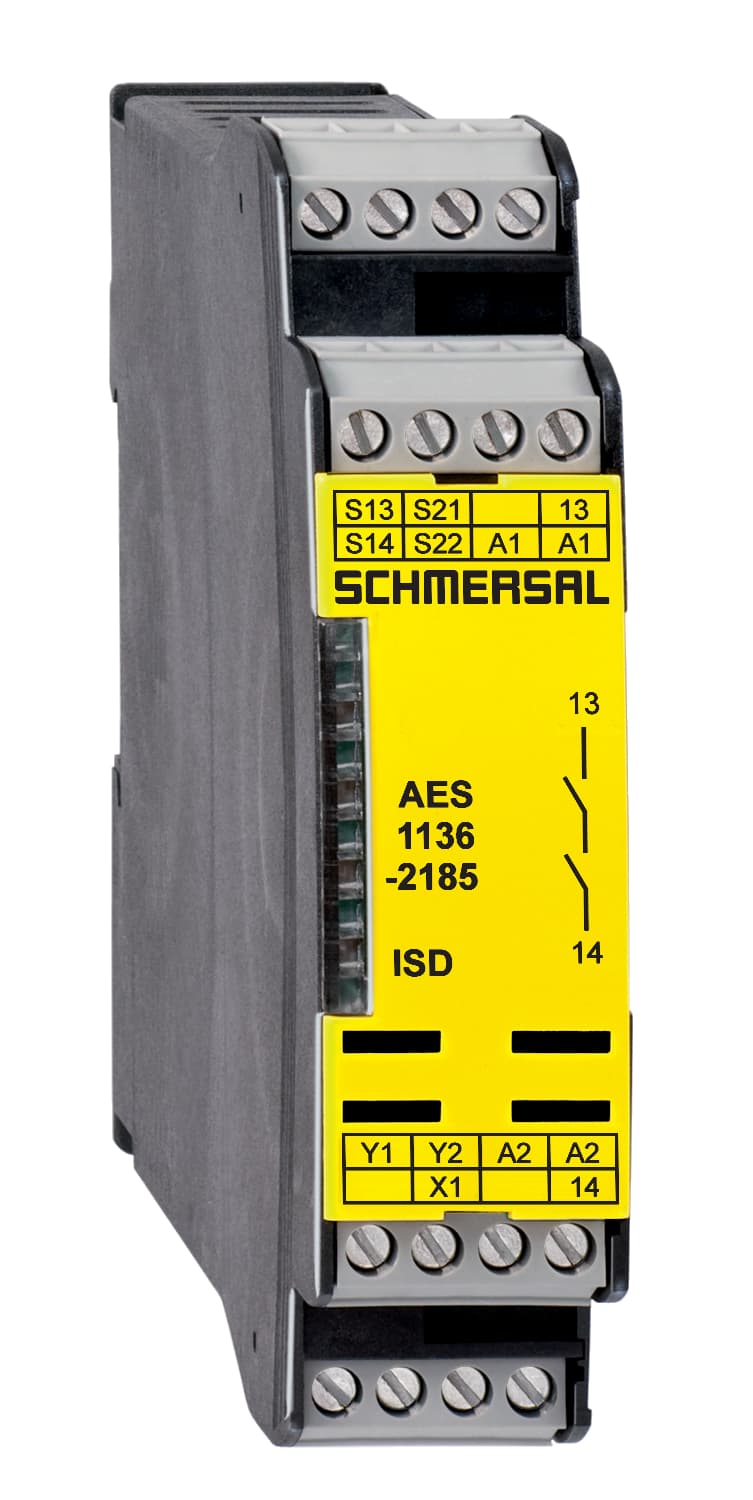

AES 1136-2185 Schmersal Electronic Components

Product Details

• Stop-Category
  0
• Earth connection detection
  Yes
• Depth
  121 mm
• Ambient temperature, minimum
  +0 °C
• Thermal test current
  6 A
• Electrical power consumption
  5 W
• Material of the contacts, electrical
  Ag-Ni 10 and 0.2 µm gold-plated
• Number of undelayed semi-conductor outputs with signaling function
  2
• Tightening torque of Clips
  0.6 Nm
• Degree of protection of the enclosure
  IP40
• Degree of pollution to IEC/EN 60664-1
  2
• Rated AC voltage for controls at DC minimum
  20.4 VDC
• Climatic stress
  EN 60068-2-3, BG-GS-ET-14
• Automatic reset function
  Yes
• Width
  22.5 mm
• Storage and transport temperature, maximum
  +70 °C
• Frequency range
  50 Hz, 60 Hz
• Rated control voltage at DC, maximum
  28.8 VDC
• Pull-in delay at RESET, typically
  20 ms
• Wire breakage detection
  Yes
Start-up test
Yes
Integral System Diagnostics, status
Yes
Terminal Connector
Screw connection, rigid or flexible
Degree of protection of the mounting space
IP54
Rated control voltage at AC 50 Hz, maximum
26.4 VAC
Number of safety contacts
1
Degree of protection of clips or terminals
IP20
Resistance to vibrations to EN 60068-2-6
10...55 Hz, Amplitude 0.35 mm, ± 15 %
Drop-out delay in case of emergency, typically
20 ms
Short-circuit recognition
Yes
Number of LEDs
1
Cable section, minimum
0.25 mm²
Storage and transport temperature, minimum
-25 °C
Overvoltage category
III
Pull-in delay at automatic start, maximum, typically
100 ms
Enclosure material
Glass-fibre reinforced thermoplastic, ventilated
Number of signalling outputs
2
Cable section, maximum
2.5 mm²
Ambient temperature, maximum
+55 °C
Rated operating voltage
24 VAC -15% / +10%, 24 VDC -10%/+20%, residual ripple max. 10%
Contact resistance, maximum
0.1 Ω
Switching capacity, minimum
10 mA
Gross weight
190 g
Number of shutters
1
Terminal designations
IEC/EN 60947-1
Mechanical life, minimum
20,000,000 Operations
Restistance to shock
30 g / 11 ms
Mounting
Snaps onto standard DIN rail to EN 60715
Voltage, Utilisation category AC15
230 VAC
Input signal, HIGH Signal 1
10 … 30 VDC
EMC rating
EMC-Directive
Height
100 mm
Rated AC voltage for controls, 60 Hz, minimum
20.4 VAC
Current, Utilisation category DC12
0.1 A
Number of openers
2
Rated impulse withstand voltage Uimp
4 kV
Voltage, Utilisation category DC13
24 VDC
Input signal, LOW Signal 0
0 … 2 VDC
Standards
IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
Rated control voltage at AC 60 Hz, maximum
26.4 VAC
Rated AC voltage for controls, 50 Hz, minimum
20.4 VAC
Drop-out delay in case of power failure, typically
80 ms
Note (Contact resistance)
in new state
Current, Utilisation category DC13
6 A
Voltage, Utilisation category DC12
24 VDC
Current, Utilisation category AC-15
6 A
Switching capacity, maximum
2 A
Conduction resistance, maximum
40 Ω
