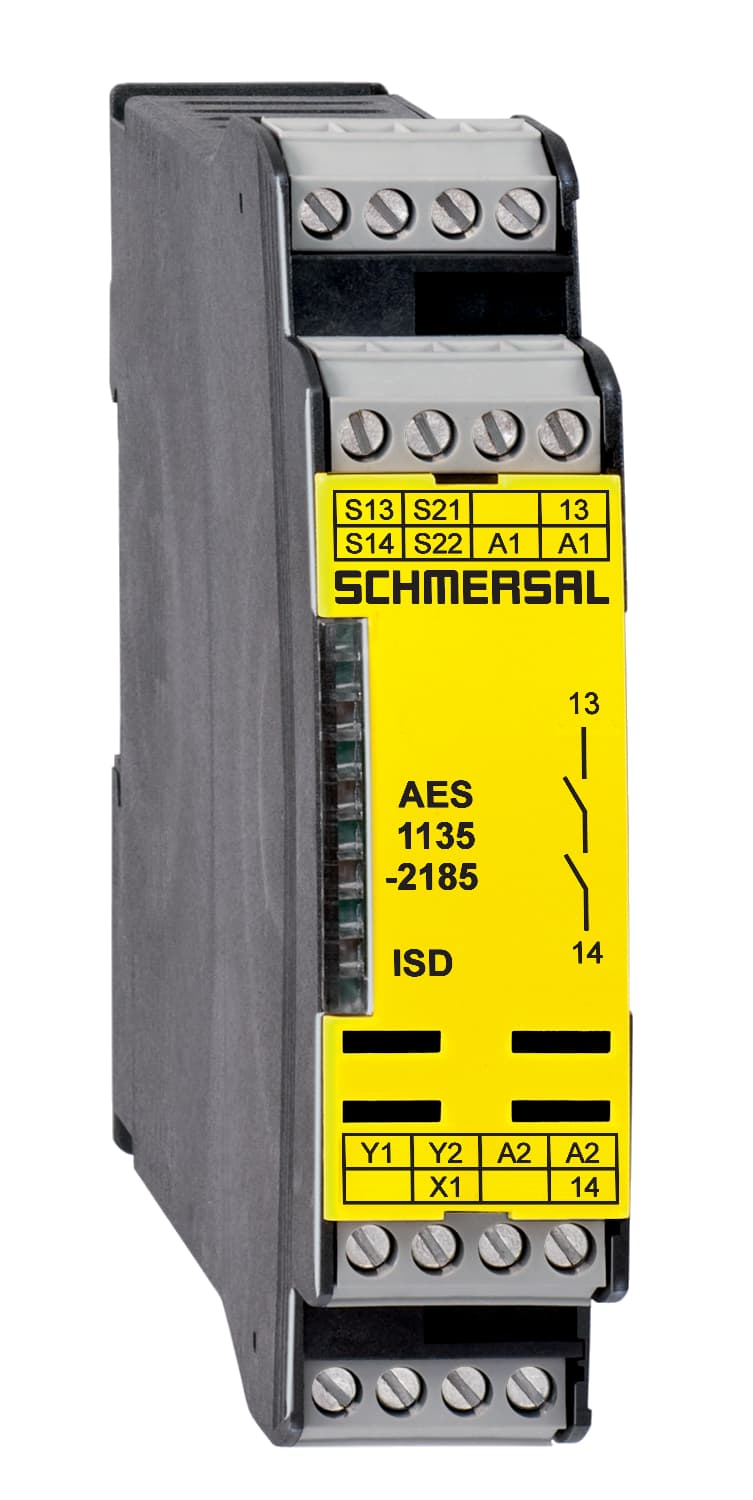

AES 1135-2185 Schmersal Electronic Components

Product Details

• Material of the contacts, electrical
  Ag-Ni 10 and 0.2 µm gold-plated
• Short-circuit recognition
  Yes
• Mechanical life, minimum
  20,000,000 Operations
• Height
  100 mm
• Degree of protection of clips or terminals
  IP20
• Thermal test current
  6 A
• Electrical power consumption
  5 W
• Pull-in delay at automatic start, maximum, typically
  100 ms
• Reset after disconnection of supply voltage
  Yes
• Number of undelayed semi-conductor outputs with signaling function
  2
• Width
  22.5 mm
• Ambient temperature, minimum
  +0 °C
• Rated impulse withstand voltage Uimp
  4 kV
• Rated AC voltage for controls, 60 Hz, minimum
  20.4 VAC
• Earth connection detection
  Yes
• Number of safety contacts
  1
• Overvoltage category
  III
• Enclosure material
  Glass-fibre reinforced thermoplastic, ventilated
• Number of openers
  2
• Wire breakage detection
  Yes
Automatic reset function
Yes
Cable section, maximum
2.5 mm²
Depth
121 mm
Restistance to shock
30 g / 11 ms
Rated AC voltage for controls at DC minimum
20.4 VDC
Drop-out delay in case of emergency, typically
20 ms
Climatic stress
EN 60068-2-3, BG-GS-ET-14
Integral System Diagnostics, status
Yes
Cable section, minimum
0.25 mm²
Degree of protection of the mounting space
IP54
Degree of pollution to IEC/EN 60664-1
2
Rated control voltage at DC, maximum
28.8 VDC
Number of LEDs
1
Gross weight
195 g
Terminal designations
IEC/EN 60947-1
Ambient temperature, maximum
+55 °C
Rated operating voltage
24 VAC -15% / +10%, 24 VDC -10%/+20%, residual ripple max. 10%
Contact resistance, maximum
0.1 Ω
Current, Utilisation category AC-15
6 A
EMC rating
EMC-Directive
Standards
IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
Stop-Category
0
Number of signalling outputs
2
Tightening torque of Clips
0.6 Nm
Storage and transport temperature, maximum
+70 °C
Frequency range
50 Hz, 60 Hz
Rated control voltage at AC 50 Hz, maximum
26.4 VAC
Note (Contact resistance)
in new state
Degree of protection of the enclosure
IP40
Rated control voltage at AC 60 Hz, maximum
26.4 VAC
Resistance to vibrations to EN 60068-2-6
10...55 Hz, Amplitude 0.35 mm, ± 15 %
Switching capacity, minimum
10 mA
Voltage, Utilisation category DC12
24 VDC
Rated AC voltage for controls, 50 Hz, minimum
20.4 VAC
Voltage, Utilisation category DC13
24 VDC
Drop-out delay in case of power failure, typically
80 ms
Input signal, HIGH Signal 1
10 … 30 VDC
Current, Utilisation category DC12
0.1 A
Number of shutters
1
Storage and transport temperature, minimum
-25 °C
Pull-in delay at RESET, typically
20 ms
Switching capacity, maximum
2 A
Mounting
Snaps onto standard DIN rail to EN 60715
Voltage, Utilisation category AC15
230 VAC
Input signal, LOW Signal 0
0 … 2 VDC
Terminal Connector
Screw connection, rigid or flexible
Current, Utilisation category DC13
6 A
Conduction resistance, maximum
40 Ω
