11967 Festo Directional Control Valves
Part#:11967
Manufacturer:Festo
Alt. Part#:MFH-3-3/4
Product Lifecycle:Active
Get a quick Quote!

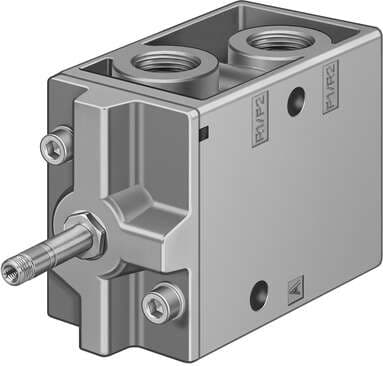

solenoid valve MFH-3-3/4 With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function: 3/2 closed, monostable, Type of actuation: electrical, Width: 68 mm, Standard nominal flow rate: 7500 l/
About the manufacturer: Festo is one of the manufacturers that offers Directional Control Valves that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 11967 Festo price in the box on the right side or send a quick quote.
Product Details
- On switching time 36 ms
- Pneumatic working port G3/4
- Reset method Mechanical spring
- Nominal width 19 mm
- Manual override Detenting
- Operating voltage Via solenoid coil, to be ordered separately
- Degree of protection IP65
- Mounting position Any
- Type of control Pilot-controlled
- Symbol 00991008
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 G3/4
- Note on materials RoHS-compliant
- Lap Underlap
- Standard nominal flow rate 7500 l/min
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Product weight 1260 g
- Electrical connection Via F coil, to be ordered separately
- Seals material NBR
- Valve function 3/2, closed, monostable
- Width 68 mm
- Operating pressure 2 bar ... 8 bar
- Certification c UL us - Recognized (OL)
- Exhaust air function With flow control option
- Pilot air supply port Internal
- Switching time off 32 ms
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Ambient temperature -5 °C ... 40 °C
- Pneumatic connection 2 G3/4
- Housing material Die-cast aluminum
- Actuation type Electrical
- Design Plate seat
- Type code MFH
- Sealing principle Soft
- Flow direction Non-reversible
- Max. positive test pulse with 0 signal 2200 µs
- Coil characteristics See solenoid coil, to be ordered separately
- Type of mounting Optionally: With through-hole
- Storage temperature -20 °C ... 60 °C
- Pilot exhaust air port 82 M5
- Pneumatic connection 3 G3/4
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 11967 Specs
