119603 Festo Pneumatic Components
Part#:119603
Manufacturer:Festo
Alt. Part#:MDH-3/2-24VDC/42VAC
Product Lifecycle:Active
Get a quick Quote!

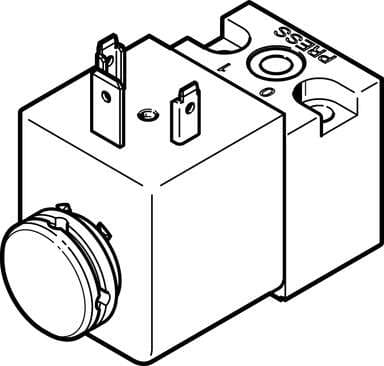

pilot valve MDH-3/2-24VDC/42VAC Directly actuated, with solenoid coil and manual override, without plug socket. Valve function: 3/2 closed, monostable, Type of actuation: electrical, Width: 30 mm, Standard nominal flow rate: 50 l/min, Operating pressure:
About the manufacturer: Festo is one of the manufacturers that offers Pneumatic Components that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 119603 Festo price in the box on the right side or send a quick quote.
Product Details
- Actuation type Electrical
- Pneumatic working port Sub-base, size 30 mm as per ISO 15218
- Degree of protection IP65
- Exhaust air function Without flow control option
- Type of control Direct
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Note on materials RoHS-compliant
- Valve function 3/2, closed, monostable
- Width 30 mm
- Design Plate seat
- Reset method Mechanical spring
- Type code MDH
- Manual override Non-detenting
- On switching time 11 ms
- Switching time off 9 ms
- Permissible voltage fluctuations +/- 10 %
- Product weight 140 g
- Electrical connection Form A as per DIN EN 175301-803
- Pneumatic connection 3 Not ducted
- Operating pressure 1 bar ... 16 bar
- Based on norm ISO 15218
- Mounting position Any
- Symbol 00991308
- Coil characteristics 24 V DC: 8.4 W 42 V AC: 60 Hz, initial power 12.0 VA, holding power 7.0 VA
- Temperature of medium -15 °C ... 80 °C
- Type of mounting On sub-base With through-hole
- Pneumatic connection 2 Sub-base
- Standard nominal flow rate 50 l/min
- Nominal width 1.3 mm
- Sealing principle Soft
- Duty cycle 100%
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -15 °C ... 50 °C
- Pneumatic connection 1 Sub-base
- Seals material FPM
- Lap Underlap
- Operating voltage 24V DC 42V AC
- Width dimension 42 mm
- Conforms to standard ISO 15218
- Flow direction Non-reversible
- Permissible frequency fluctuations +/- 10%
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 119603 Specs
1-year warranty
