SP250GRP Banner Signal Beacons

Banner SP250GRP EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Green Red; Field Wireable
Banner

Part#:SP250GRP

Manufacturer:Banner

Alt. Part#:11693

Product Lifecycle:Active

Get a quick Quote!

EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Green Red; Field Wireable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SP250GRP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight578.783392 g
  • Country Of OriginUS
  • Indication
    Yes
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Max Input Response Time (ms)
    10
  • Product Size (mm)
    Other
  • Mounting Thread
    No Thread
  • Lumens Color 1
    57.0
  • Physical Dimensions (LxWxH or DxH mm)
    176.4 x 87.6 x 109.6
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Supply Voltage
    15-30 V dc
  • Feature: Hazardous Area
    No
  • Primary Housing Material
    Polycarbonate
  • Connection
    Terminal
  • Number of Input Pins/Conductors
    3
  • Housing Style
    Flat Mount - Signal Light
  • Animation Option 1
    Solid On
  • Input Type
    PNP
  • Number of Colors / Segments
    2
  • Color Option 2
    Red
  • Min Op. Temperature (°C)
    -40
  • Modbus RTU
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color 1 - Wavelength/Color Temp/Coordinates
    528 nm
  • Power
    DC
  • Color Option 1
    Green
  • Max Current Color (mA)
    120
  • Feature: Chemical Resistant
    No
  • Feature: Quick Disconnect
    No
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Max Op. Temperature (°C)
    50
  • Application: Traffic Light
    Yes
  • Environmental Rating
    IP65
  • Lumens Color 2
    20.0
  • Indication Intensity
    High Brightness & Daylight Visible
  • Multi-Color Device
    Simultaneous Colors On
  • IO Link
    No
  • Wireless
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SP250GRP Description

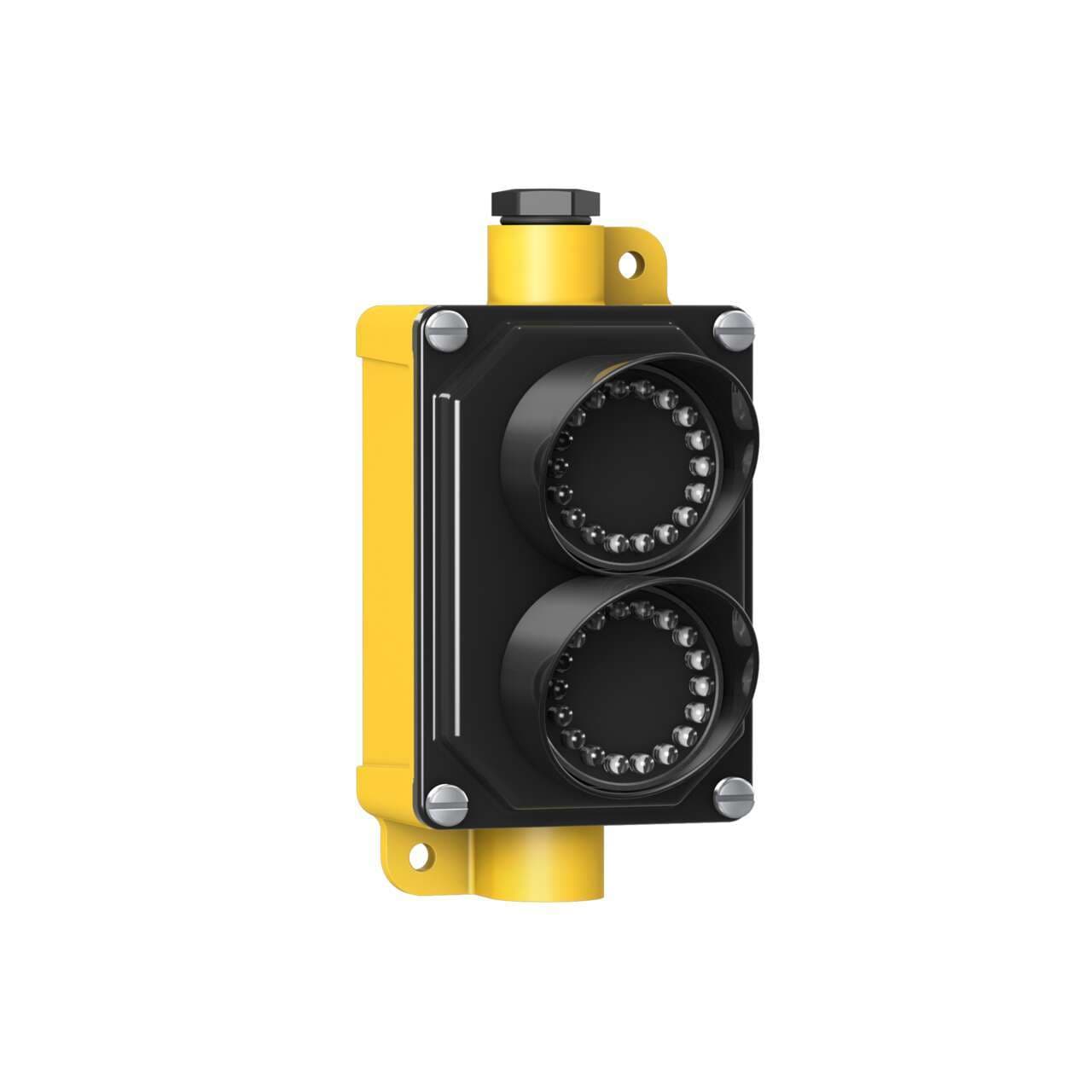

Banner Engineering SP250GRP, part of the EZ-LIGHT series, is a traffic light designed with a 2-tiers 2-color G+R color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and a screw-clamp terminal connection. The housing is colored black/yellow, and it operates on a supply voltage of 15Vdc-30Vdc (24Vdc nominal). It offers flexible mounting options, including surface and wall mounting. The SP250GRP is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated at IP65 for protection against dust and water ingress. Its shape is specifically designed for traffic light applications, with a current consumption of 120mA. Additionally, it includes 2 x digital inputs (15-30Vdc; PNP) for color control.

Related documents SP250GRP Specs

SP250GRP 148879.pdf
