SP250GRNQ Banner Signal Beacons
Part#:SP250GRNQ
Manufacturer:Banner
Alt. Part#:13145
Product Lifecycle:Active
Get a quick Quote!
EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: NPN; Colors: Green Red; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP250GRNQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight582.412128 g
- Country Of OriginUS
- Indication Yes
- Color Option 2 Red
- Physical Dimensions (LxWxH or DxH mm) 192.8 x 87.6 x 109.6
- IO Link No
- Primary Housing Material Polycarbonate
- Quick Disconnect Type M12 (Euro)
- Input Type NPN
- Feature: Chemical Resistant No
- Max Input Response Time (ms) 10
- Wireless No
- Housing Style Flat Mount - Signal Light
- Lumens Color 1 57.0
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Min Op. Temperature (°C) -40
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 528 nm
- Supply Voltage 15-30 V dc
- Modbus RTU No
- Mounting Thread No Thread
- Animation Option 1 Solid On
- Max Op. Temperature (°C) 50
- Indication Intensity High Brightness & Daylight Visible
- Power DC
- Cable Length (m) 0.5
- Lumens Color 2 20.0
- Feature: Audible No
- Feature: Quick Disconnect Yes
- Number of Colors / Segments 2
- Connection Integral QD
- Environmental Rating IP65
- Application: Traffic Light Yes
- Power Source DC
- Color Technology Standard LED
- Max Current Color (mA) 120
- Feature: Hazardous Area No
- Color Option 1 Green
- Product Size (mm) Other
- Number of Input Pins/Conductors 4
- Multi-Color Device Simultaneous Colors On
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SP250GRNQ Description

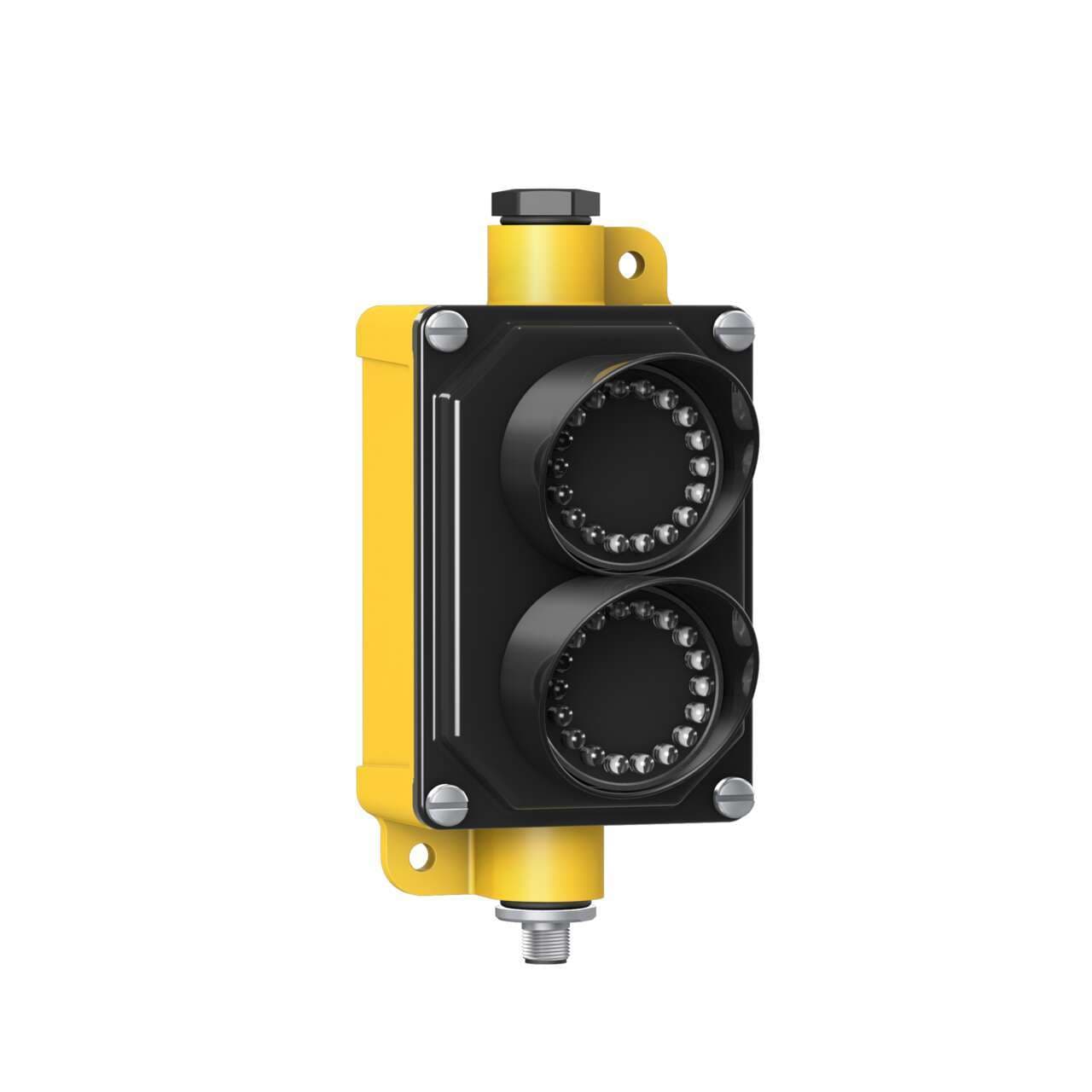

Banner Engineering SP250GRNQ, part of the EZ-LIGHT series, is a traffic light designed with a 2-tiers 2-color G+R color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The housing is black/yellow, and it operates on a supply voltage of 15Vdc-30Vdc (24Vdc nom.). It can be mounted on surfaces or walls and is designed to operate in ambient air temperatures ranging from -40°C to +50°C. With an IP65 degree of protection, it is safeguarded against dust and low-pressure water jets. The shape is specifically that of a traffic light, and it has a current consumption of 120mA. Additionally, it includes 2 x digital inputs (15-30Vdc; NPN) for color control.
