60036OT3G449TS-RFW40 WEG AC Motors
Part#:60036OT3G449TS-RFW40
Manufacturer:WEG
Alt. Part#:7909322453873
Product Lifecycle:Active
Get a quick Quote!

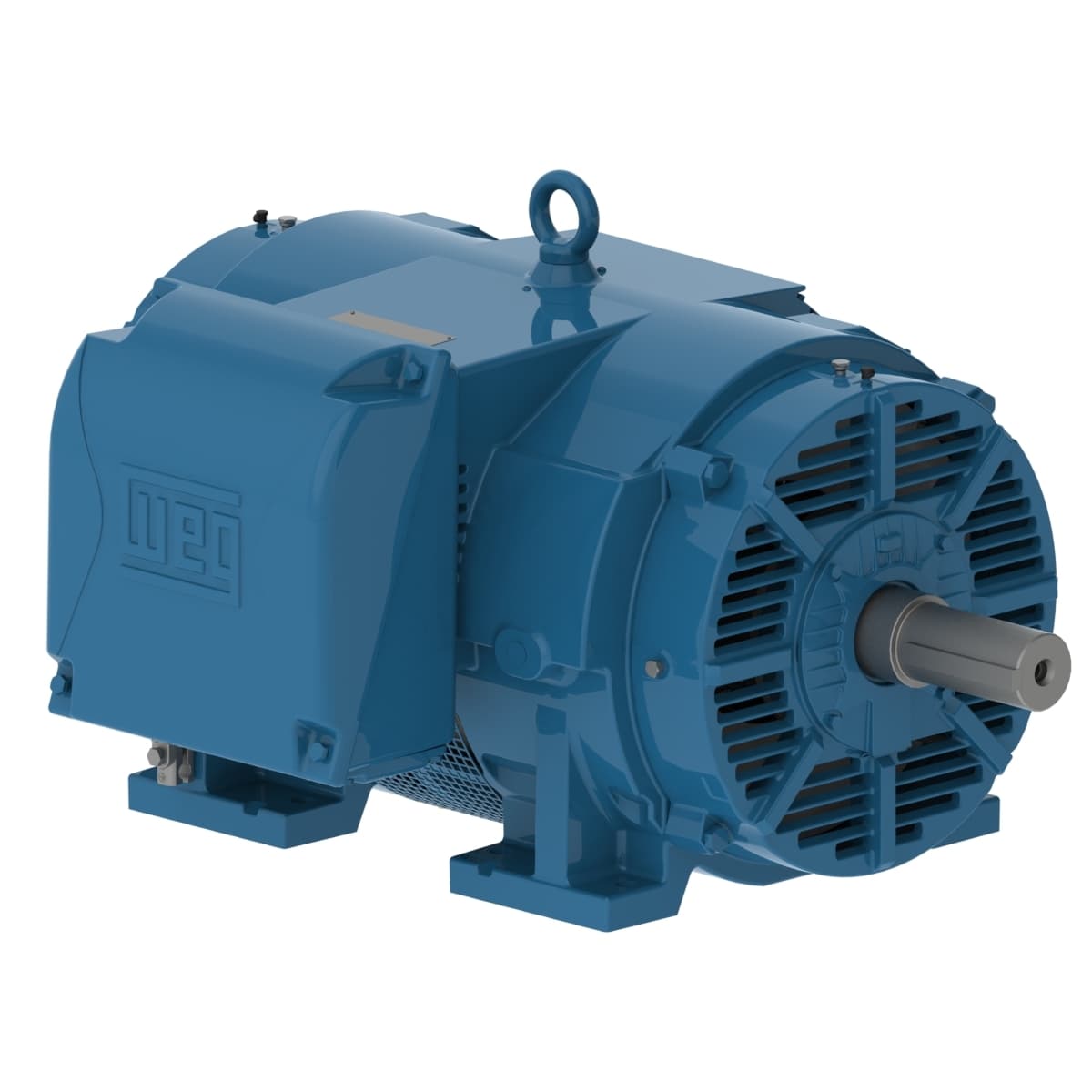

W40 NEMA Premium Efficiency 600 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 60036OT3G449TS-RFW40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating600 HP
- Rated Speed3565 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Number of Poles 2
- Locked rotor torque 190 %
- Enclosure IC01 - ODP
- Voltage 460 V
- Frame 447/9TS
- Breakdown torque 250 %
- Duty Cycle Cont.(S1)
- Flange Without
- Rated current 645 A
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Output 600 HP (440 kW)
- L. R. Amperes 5096 A
- Rated torque 884 ft.lb
- Approx. weight³ 2383 lb
- Rated voltage 460 V
- No load current 158 A
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Slip 0.97 %
- Moment of inertia (J) 53.6 sq.ft.lb
- Noise level² 87.0 dB(A)
- Rated speed 3565 rpm
- Service factor 1.15
- Mounting F-1
- Synchronous speed 3600 rpm
- LRC 7.9x(Code H)
- Insulation Class F
- Temperature rise 80 K
- Output rating 600 HP
- Frequency 60 Hz
- Locked rotor time 23s (cold) 13s (hot)
- Degree of Protection IP23
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 60036OT3G449TS-RFW40 Specs
