40012ET3G586/7-W22 WEG AC Motors
Part#:40012ET3G586/7-W22
Manufacturer:WEG
Alt. Part#:7891327483064
Product Lifecycle:Active
Get a quick Quote!

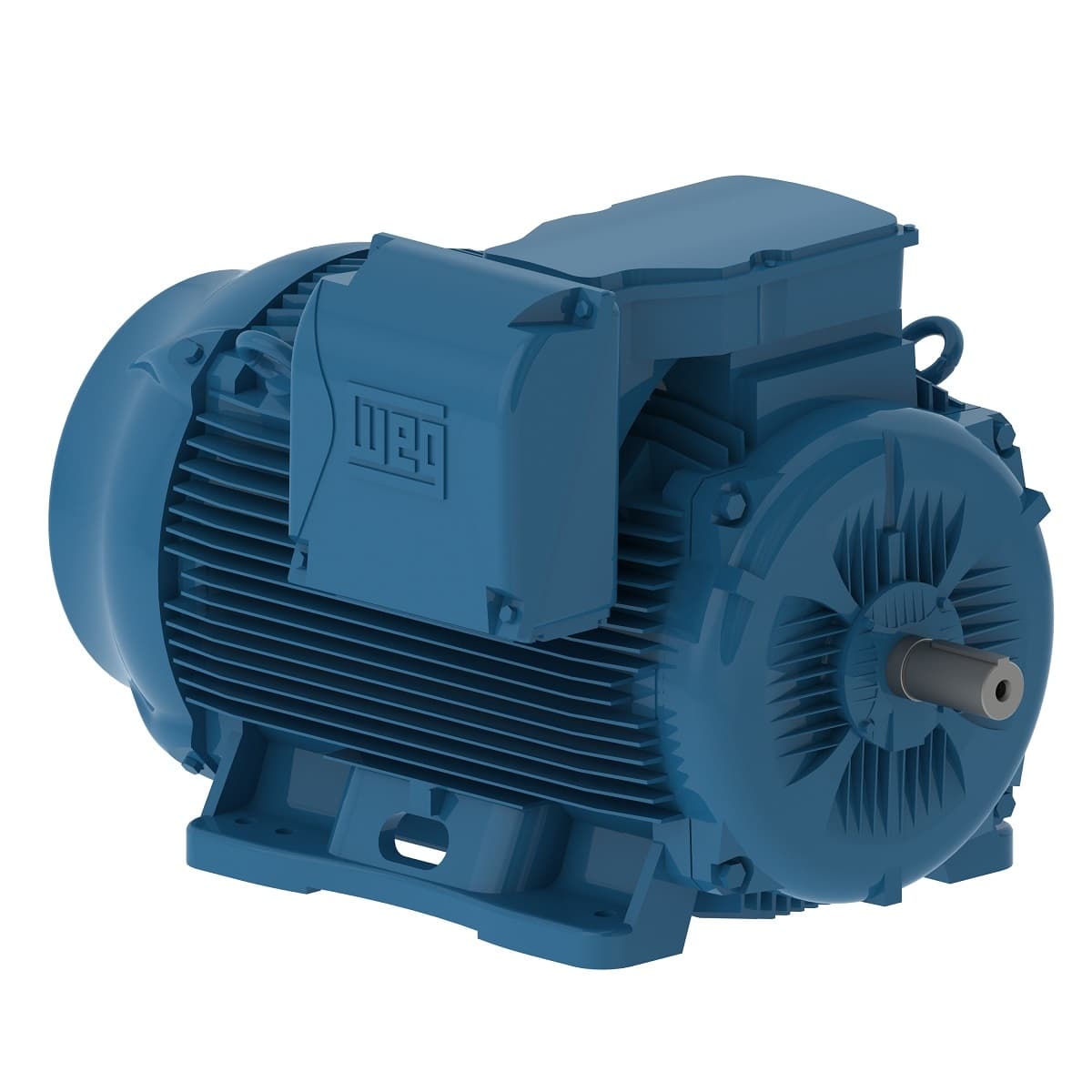

W22 NEMA Premium Efficiency 400 HP 6P 586/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 40012ET3G586/7-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating400 HP
- Rated Speed1192 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- Output 400 HP (300 kW)
- Altitude 1000 m.a.s.l.
- Flange Without
- Temperature rise 80 K
- Rated voltage 460 V
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Rated speed 1192 rpm
- Breakdown torque 210 %
- Enclosure IC411 - TEFC
- No load current 190 A
- Starting Method Direct On Line
- Voltage 460 V
- Frame 586/7T
- Rated torque 1760 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Slip 0.67 %
- Locked rotor time 52s (cold) 29s (hot)
- Noise level² 77.0 dB(A)
- Synchronous speed 1200 rpm
- LRC 6.0x(Code G)
- Mounting F-1
- Number of Poles 6
- Insulation Class F
- Locked rotor torque 200 %
- Approx. weight³ 4367 lb
- Rated current 483 A
- Terminal box¹ Left position
- Degree of Protection IP55
- Frequency 60 Hz
- Ambient temperature -20°C to +40°C
- Number of poles 6
- Moment of inertia (J) 368 sq.ft.lb
- L. R. Amperes 2898 A
- Output rating 400 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 40012ET3G586/7-W22 Specs
