25018OP3GFP445TS WEG AC Motors
Part#:25018OP3GFP445TS
Manufacturer:WEG
Alt. Part#:7909322557243
Product Lifecycle:Active
Get a quick Quote!

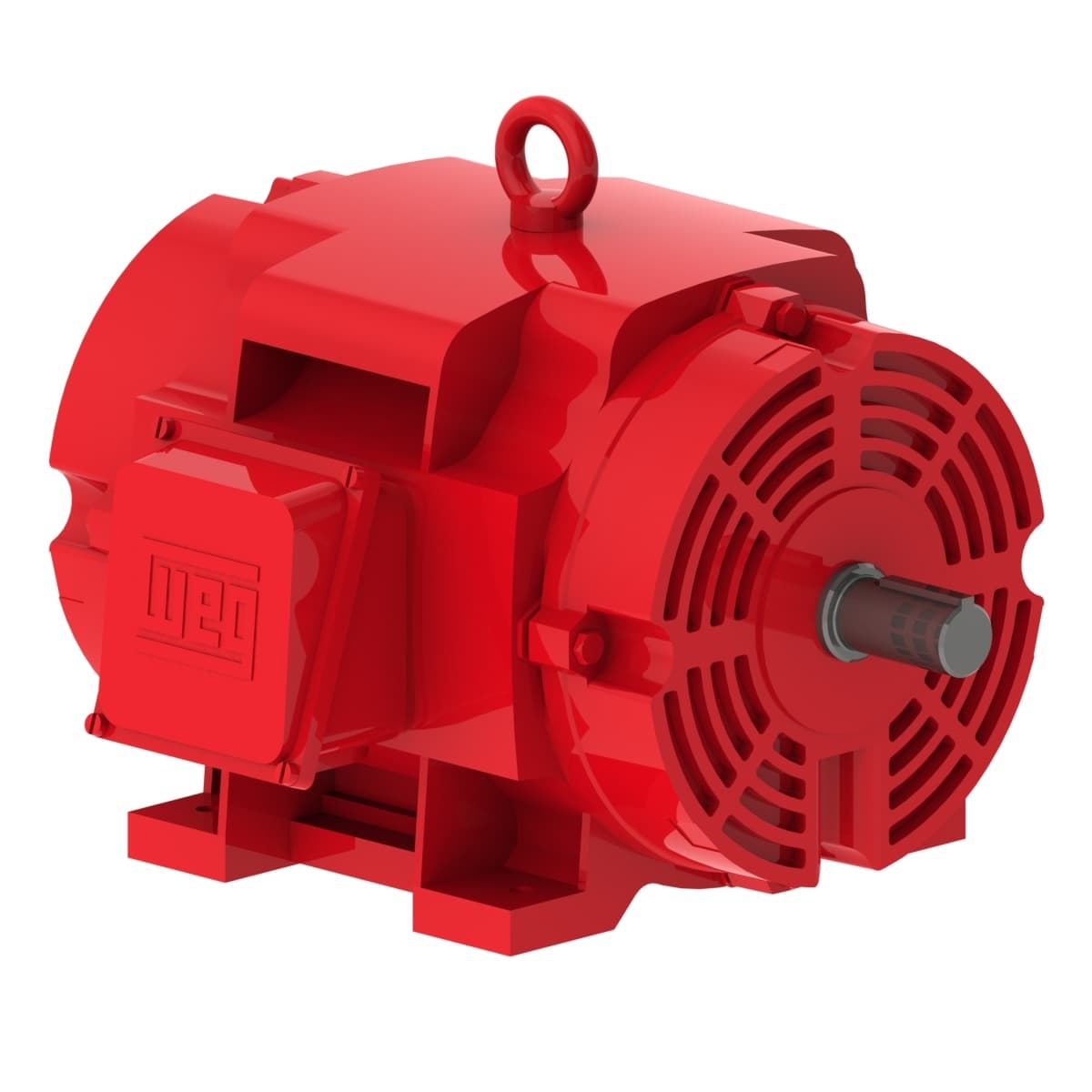

ODP High Efficiency 250 HP 4P 444/5TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 25018OP3GFP445TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Rated speed 1780 rpm
- Number of Poles 4
- Service factor 1.15
- Frame 444/5TS
- No load current 76.0 A
- Duty Cycle Cont.(S1)
- Mounting F-1
- Moment of inertia (J) 53.4 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 250 HP
- Enclosure IC01 - ODP
- Slip 1.11 %
- Rated torque 738 ft.lb
- Degree of Protection IP23
- Approx. weight³ 1507 lb
- Standard NEMA MG-1
- L. R. Amperes 1868 A
- Starting Method Direct On Line
- Voltage 460 V
- Output 250 HP (185 kW)
- Rated current 283 A
- Terminal box¹ Left position
- Rated voltage 460 V
- Breakdown torque 229 %
- Design B
- Flange Without
- Locked rotor torque 200 %
- Temperature rise 105 K
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- LRC 6.6x(Code G)
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Synchronous speed 1800 rpm
- Locked rotor time 27s (cold) 15s (hot)
- Insulation Class F
- Noise level² 79.0 dB(A)
