15036OT3H405TS-W40 WEG AC Motors
Part#:15036OT3H405TS-W40
Manufacturer:WEG
Alt. Part#:7909323906415
Product Lifecycle:Active
Get a quick Quote!

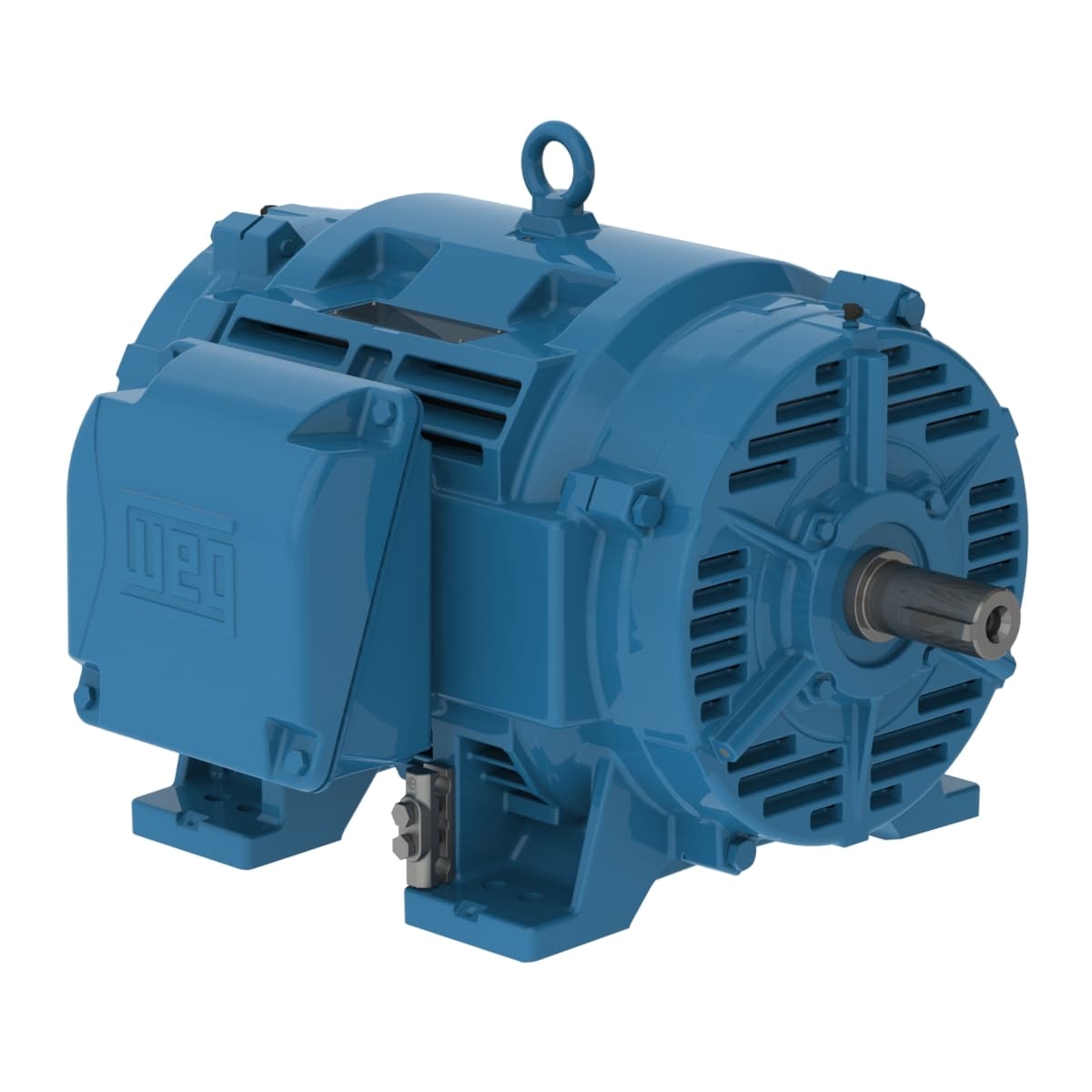

W40 NEMA Premium Efficiency 150 HP 2P 404/5TS 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 15036OT3H405TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating150 HP
- Rated Speed3552 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Rated current 134 A
- No load current 32.0 A
- Duty Cycle Cont.(S1)
- Voltage 575 V
- Synchronous speed 3600 rpm
- Number of Poles 2
- Service factor 1.25
- Noise level² 84.0 dB(A)
- Frequency 60 Hz
- Insulation Class F
- Degree of Protection IP23
- Flange Without
- L. R. Amperes 882 A
- Locked rotor time 16s (cold) 9s (hot)
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Frame 404/5TS
- Temperature rise 80 K
- Approx. weight³ 910 lb
- Rated speed 3552 rpm
- Breakdown torque 250 %
- Mounting F-1
- LRC 6.6x(Code G)
- Design B
- Enclosure IC01 - ODP
- Rated voltage 575 V
- Slip 1.33 %
- Moment of inertia (J) 8.80 sq.ft.lb
- Rated torque 222 ft.lb
- Altitude 1000 m.a.s.l.
- Starting Method Direct On Line
- Output rating 150 HP
- Standard NEMA MG-1
- Output 150 HP (110 kW)
- Locked rotor torque 200 %
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 15036OT3H405TS-W40 Specs
1-year warranty
