15012ET3G447T-W22 WEG AC Motors
Part#:15012ET3G447T-W22
Manufacturer:WEG
Alt. Part#:7894171933778
Product Lifecycle:Active
Get a quick Quote!

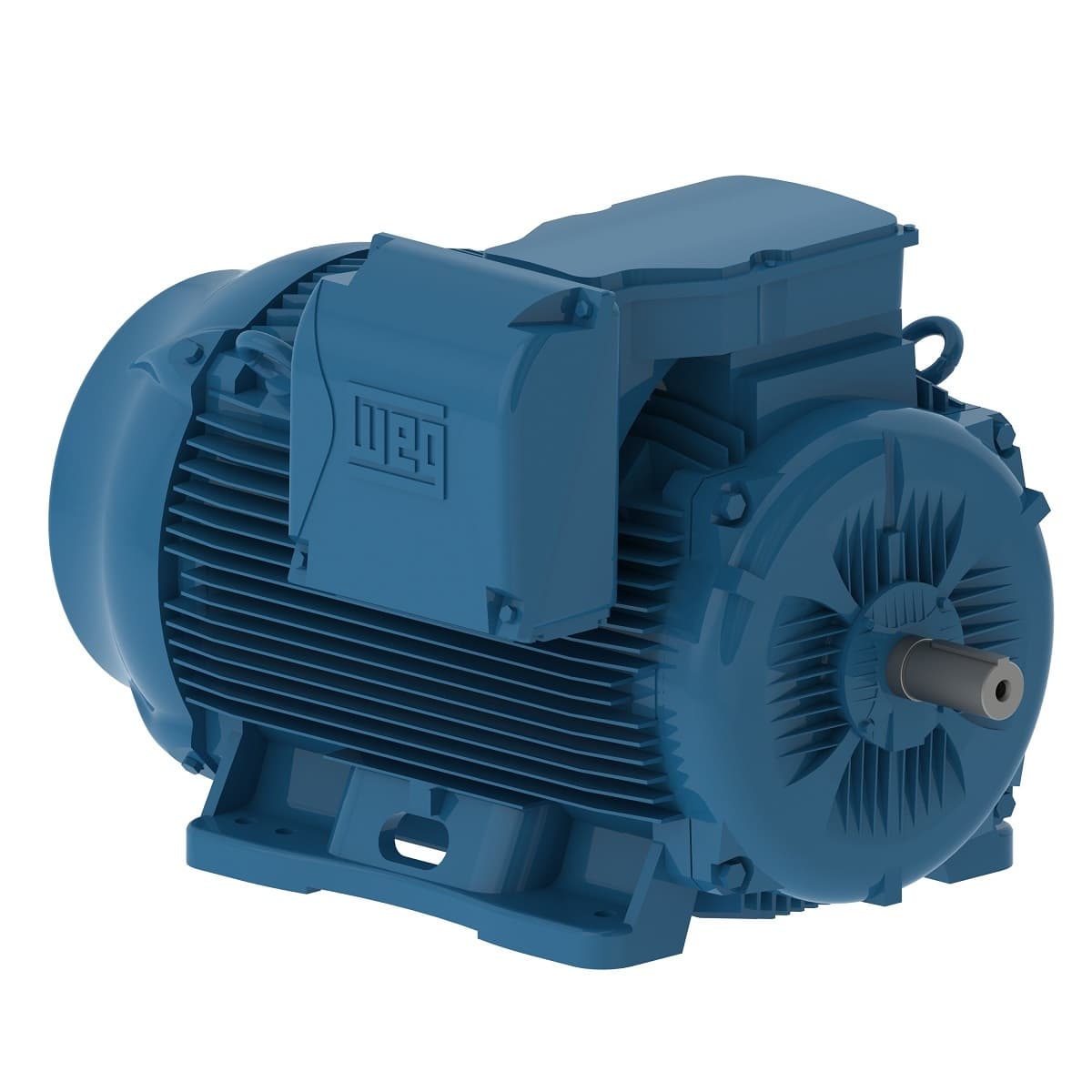

W22 NEMA Premium Efficiency 150 HP 6P 445/7T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 15012ET3G447T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating150 HP
- Rated Speed1189 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- Rated speed 1189 rpm
- Rated torque 662 ft.lb
- Degree of Protection IP55
- Number of poles 6
- Frequency 60 Hz
- Insulation Class F
- Enclosure IC411 - TEFC
- Rated voltage 460 V
- LRC 6.2x(Code G)
- Temperature rise 80 K
- Standard NEMA MG-1
- L. R. Amperes 1090 A
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Voltage 460 V
- Frame 445/7T
- Design B
- Mounting F-1
- Output rating 150 HP
- Number of Poles 6
- Duty Cycle Cont.(S1)
- Approx. weight³ 2271 lb
- Output 150 HP (110 kW)
- Locked rotor time 36s (cold) 20s (hot)
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Slip 0.92 %
- Breakdown torque 250 %
- Noise level² 69.0 dB(A)
- Flange Without
- Rated current 176 A
- Moment of inertia (J) 134 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- No load current 68.0 A
- Locked rotor torque 240 %
- Starting Method Direct On Line
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 15012ET3G447T-W22 Specs
