12518OT3G405TC-W40 WEG AC Motors
Part#:12518OT3G405TC-W40
Manufacturer:WEG
Alt. Part#:7909323907115
Product Lifecycle:Active
Get a quick Quote!

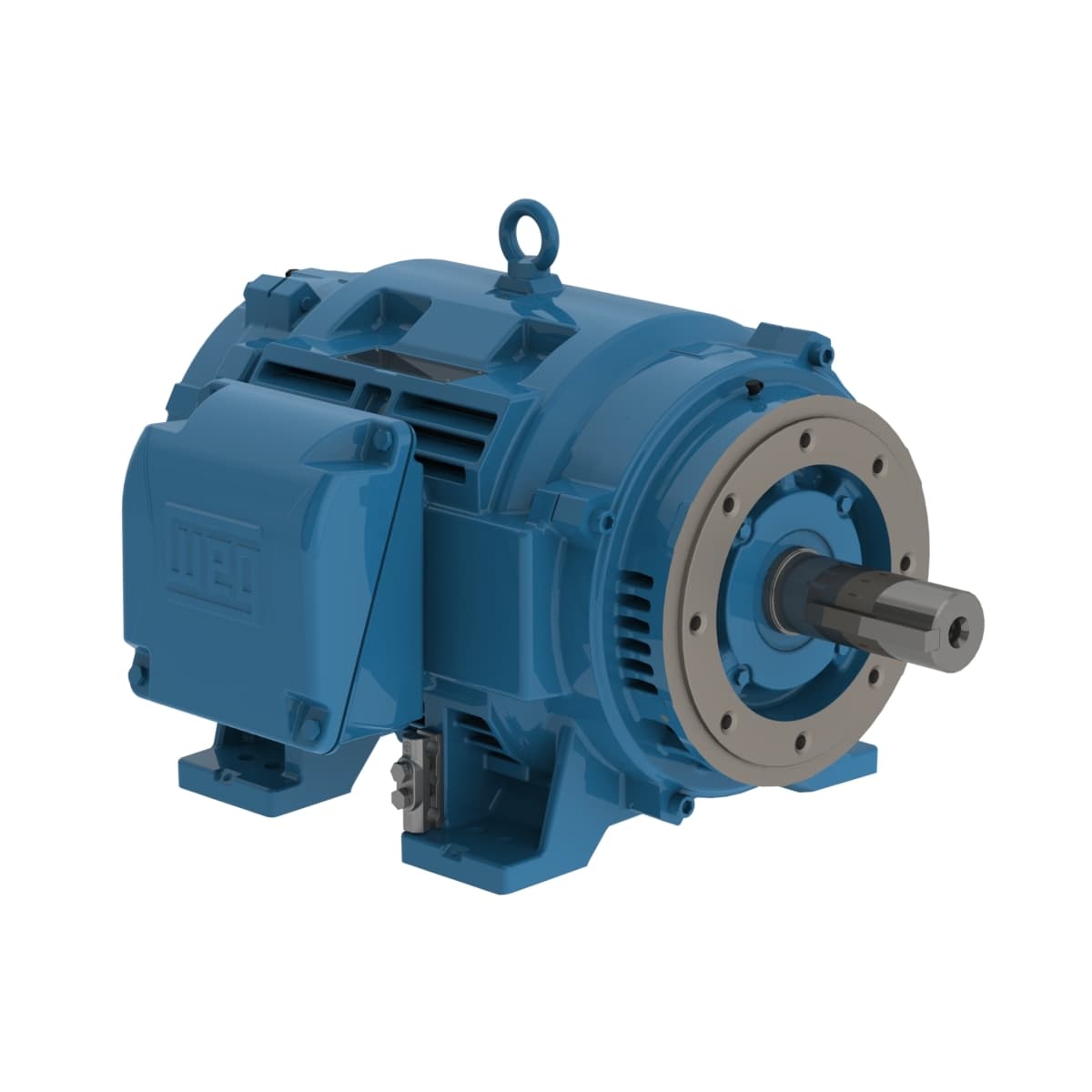

W40 NEMA Premium Efficiency 125 HP 4P 404/5TC 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 12518OT3G405TC-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeC
- Rated current 138 A
- Breakdown torque 260 %
- Mounting F-1
- Number of Poles 4
- No load current 47.0 A
- Service factor 1.25
- Duty Cycle Cont.(S1)
- Voltage 460//380 V
- Frequency 60 Hz
- Locked rotor torque 270 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- L. R. Amperes 952 A
- Rated speed 1780 rpm
- Moment of inertia (J) 25.5 sq.ft.lb
- Starting Method Direct On Line
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Output rating 125 HP
- Frame 404/5TC
- LRC 6.9x(Code G)
- Locked rotor time 18s (cold) 10s (hot)
- Enclosure IC01 - ODP
- Rotation¹ Both (CW and CCW)
- Flange C
- Approx. weight³ 1084 lb
- Output 125 HP
- Rated torque 369 ft.lb
- Temperature rise 80 K
- Number of poles 4
- Rated voltage 460 V
- Design B
- Degree of Protection IP23
- Slip 1.11 %
- Insulation Class F
- Noise level² 69.0 dB(A)
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12518OT3G405TC-W40 Specs
1-year warranty
