10674523 WEG AC Motors
Part#:10674523
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

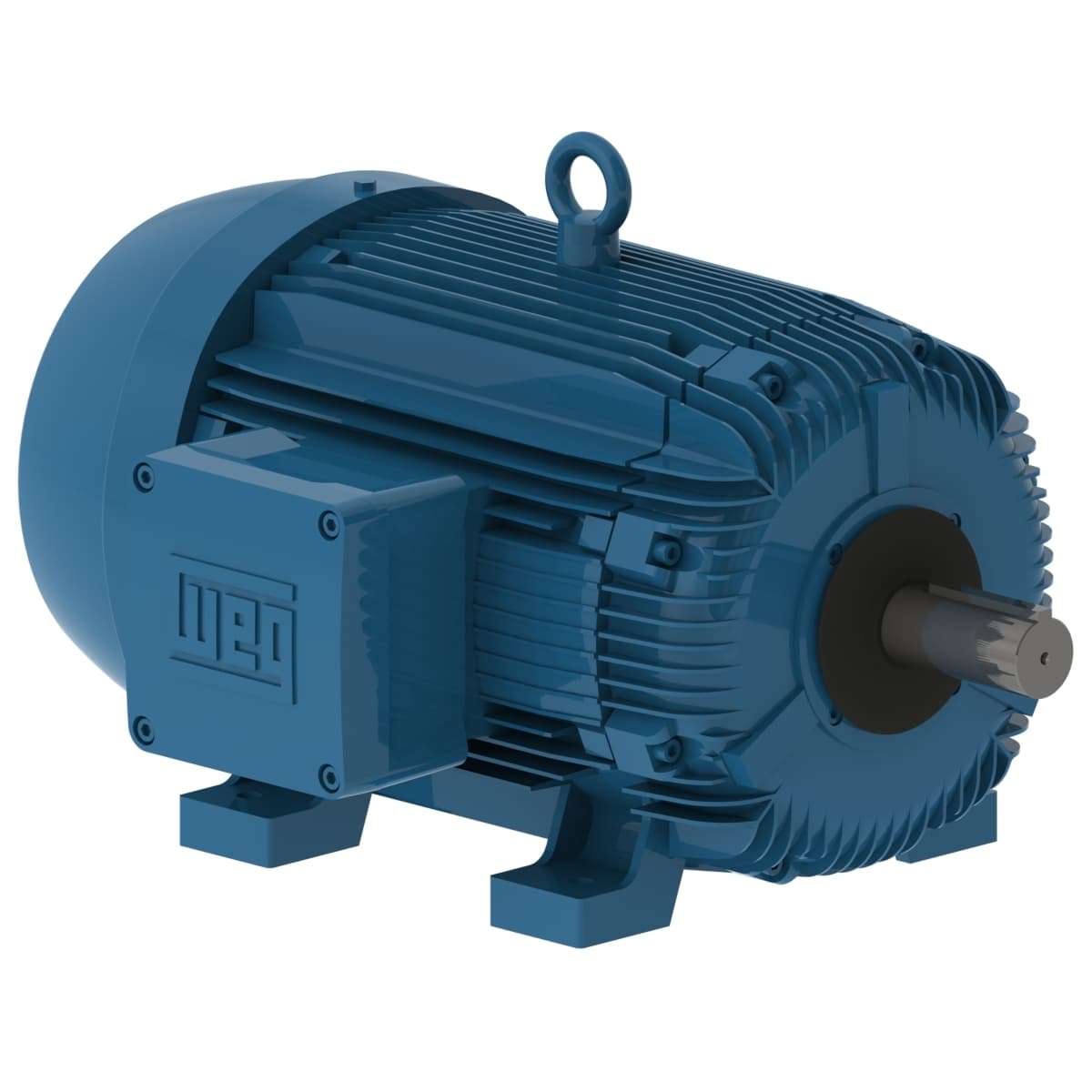

W21 Explosion-proof Motor High Efficiency 20 HP 8P 324T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 10674523 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 720 rpm
- Locked rotor time 45s (cold) 25s (hot)
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- LRC 3.8x(Code D)
- Design B
- Degree of Protection IP55
- Synchronous speed 900 rpm
- Slip 4.00 %
- Moment of inertia (J) 9.79 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 20 HP
- Frequency 50 Hz
- Locked rotor torque 150 %
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
- Frame 324T
- Rated current 33.0 A
- Duty Cycle Cont.(S1)
- Flange Without
- Output 20 HP (15 kW)
- Rated torque 146 ft.lb
- Starting Method Direct On Line
- Number of poles 8
- Rated voltage 380 V
- Breakdown torque 150 %
- Mounting F-1
- Terminal box¹ Left position
- L. R. Amperes 125 A
- Insulation Class F
- Noise level² 56.0 dB(A)
- Number of Poles 8
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- No load current 13.0 A
- Temperature rise 80 K
- Approx. weight³ 608 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 10674523 Specs
1-year warranty
