04512ET3Y280S/M-W22 WEG AC Motors
Part#:04512ET3Y280S/M-W22
Manufacturer:WEG
Alt. Part#:7909265040024
Product Lifecycle:Active
Get a quick Quote!

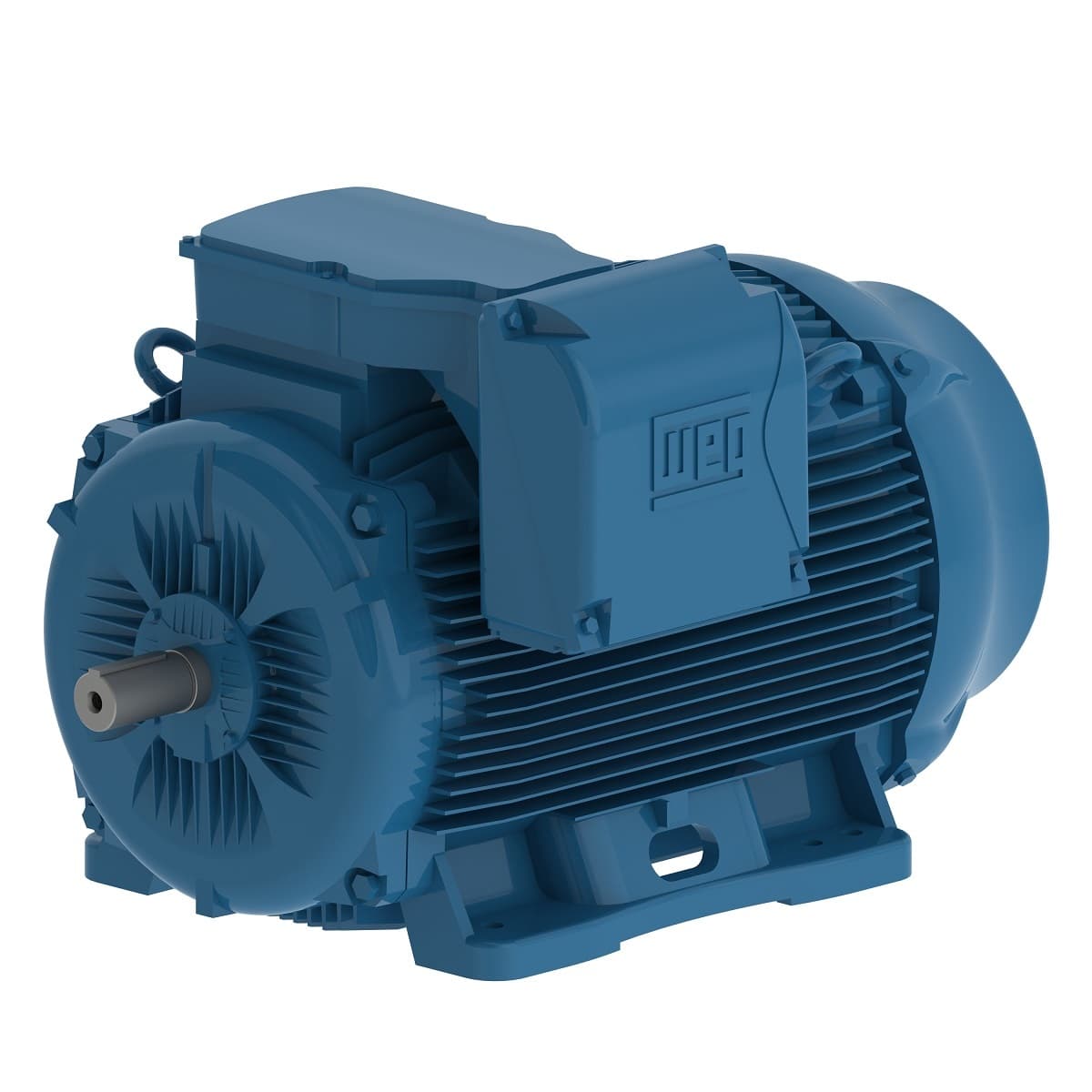

W22 Tru-Metric IE3 60 HP 6P 280S/M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Check out the 04512ET3Y280S/M-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating60 HP
- Rated Speed990 rpm
- Number of Poles6 Pole
- Voltage380 V
- Flange TypeWithout
- Frame 280S/M
- Moment of inertia (J) 66.5 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Output rating 60 HP
- Frequency 50 Hz
- Insulation Class F
- Standard NEMA MG-1
- Rated torque 318 ft.lb
- Rotation¹ Both (CW and CCW)
- Flange Without
- Number of Poles 6
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Output 60 HP (45 kW)
- No load current 38.0 A
- Design N
- Mounting B3L(E)
- Rated voltage 380 V
- Breakdown torque 240 %
- Duty Cycle S1
- Number of poles 6
- Slip 1.00 %
- Locked rotor torque 190 %
- Noise level² 65.0 dB(A)
- Voltage 460//380-415 V
- Rated current 89.8 A
- Temperature rise 80 K
- Starting Method Direct On Line
- L. R. Amperes 611 A
- LRC 6.8
- Approx. weight³ 1391 lb
- Rated speed 990 rpm
- Locked rotor time 39s (cold) 22s (hot)
- Enclosure IC411 - TEFC
- Degree of Protection IP55
- Terminal box¹ Right position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
