02512AT3PCT324TF1-W2 WEG AC Motors
Part#:02512AT3PCT324TF1-W2
Manufacturer:WEG
Alt. Part#:7909492065739
Product Lifecycle:Active
Get a quick Quote!

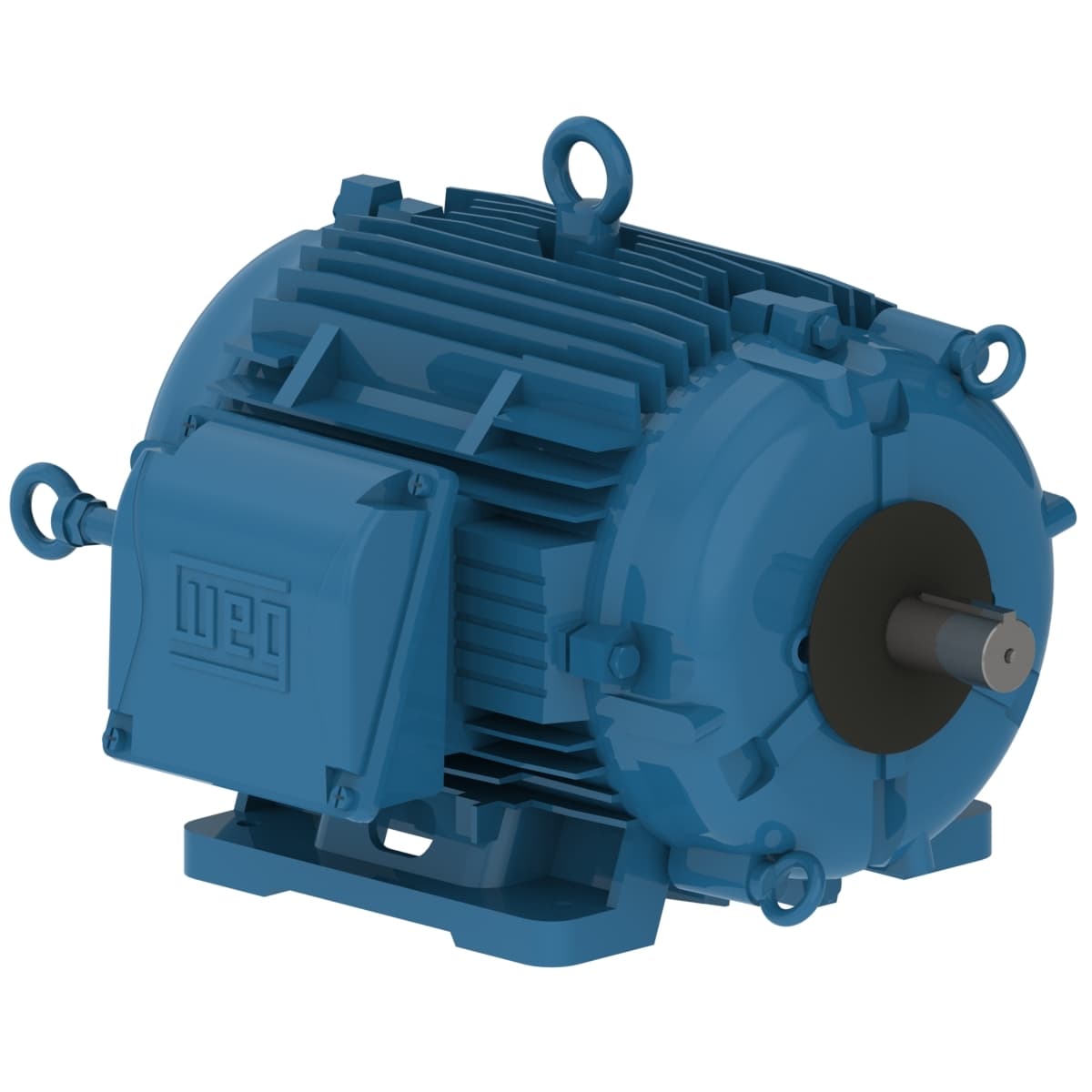

W22 Cooling Tower NEMA Premium Efficiency 25 HP 6P 324T 3Ph 200 V 60 Hz IC418 - TEAO - Foot-mounted
Check out the 02512AT3PCT324TF1-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating25 HP
- Rated Speed1180 rpm
- Number of Poles6 Pole
- Voltage200 V
- Flange TypeWithout
- Rated voltage 200 V
- Slip 1.67 %
- Locked rotor time 46s (cold) 26s (hot)
- Breakdown torque 260 %
- Enclosure IC418 - TEAO
- Flange Without
- Altitude 1000 m.a.s.l.
- Output rating 25 HP
- Rated current 70.9 A
- Locked rotor torque 210 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 1200 rpm
- Output 25 HP (18.5 kW)
- Moment of inertia (J) 11.5 sq.ft.lb
- Mounting F-1
- Design B
- LRC 6.2x(Code G)
- Noise level² 62.0 dB(A)
- Rated speed 1180 rpm
- No load current 32.2 A
- Duty Cycle Cont.(S1)
- Voltage 200 V
- Frame 324T
- Insulation Class F
- Standard NEMA MG-1
- Number of Poles 6
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Service factor 1.25
- Degree of Protection IP55
- Number of poles 6
- L. R. Amperes 439 A
- Rated torque 111 ft.lb
- Starting Method Direct On Line
- Approx. weight³ 517 lb
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
