02036ST3HIE256T-W22 WEG AC Motors
Part#:02036ST3HIE256T-W22
Manufacturer:WEG
Alt. Part#:7891327135208
Product Lifecycle:Active
Get a quick Quote!

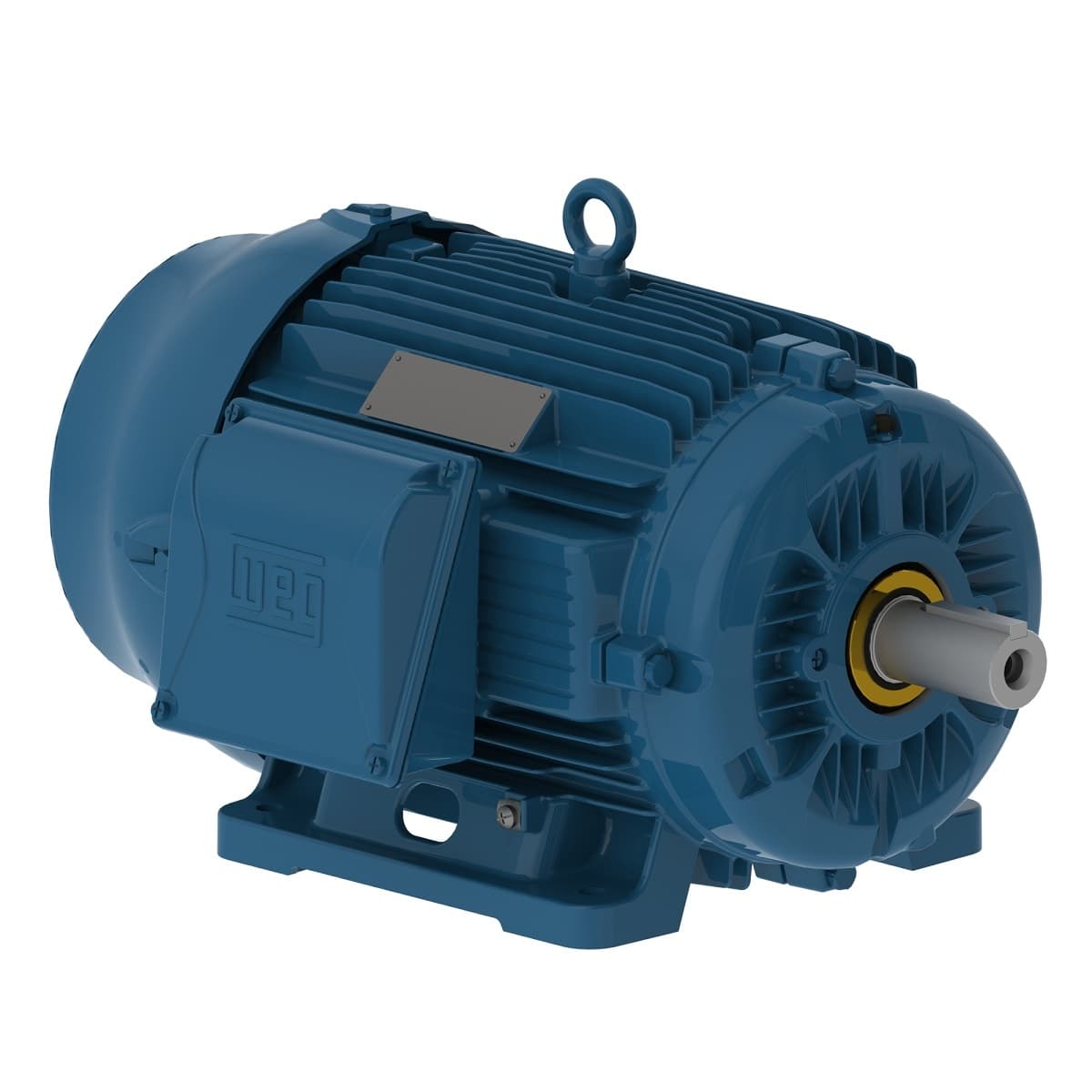

W22 IEEE 841 NEMA Premium Efficiency 20 HP 2P 254/6T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02036ST3HIE256T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed3520 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Frame 254/6T
- Locked rotor torque 220 %
- Temperature rise 80 K
- Noise level² 72.0 dB(A)
- Output 20 HP (15 kW)
- Rated torque 29.8 ft.lb
- Starting Method Direct On Line
- Voltage 575 V
- Number of Poles 2
- Breakdown torque 250 %
- Ambient temperature -20°C to +40°C
- Approx. weight³ 310 lb
- Rated current 18.6 A
- No load current 5.20 A
- Mounting F-1
- Flange Without
- L. R. Amperes 113 A
- Rated speed 3520 rpm
- Locked rotor time 34s (cold) 19s (hot)
- Service factor 1.25
- Degree of Protection IP56
- Standard NEMA MG-1
- Output rating 20 HP
- Rated voltage 575 V
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- LRC 6.1x(Code G)
- Design B
- Enclosure IC411 - TEFC
- Number of poles 2
- Slip 2.22 %
- Moment of inertia (J) 1.54 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Frequency 60 Hz
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 02036ST3HIE256T-W22 Specs
1-year warranty
