02009ET3E286T-W22 WEG AC Motors
Part#:02009ET3E286T-W22
Manufacturer:WEG
Alt. Part#:7909322298368
Product Lifecycle:Active
Get a quick Quote!

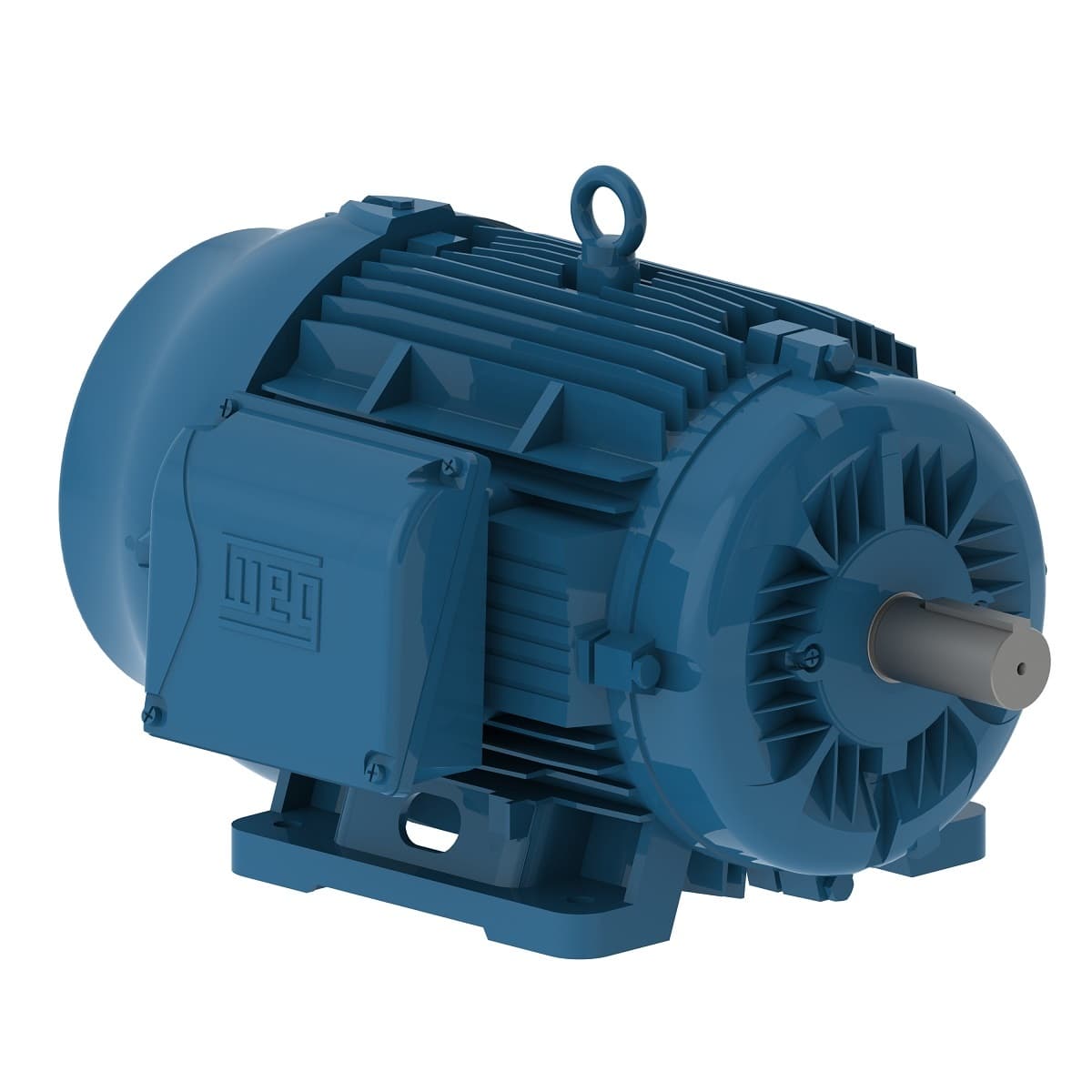

W22 NEMA Premium Efficiency 20 HP 8P 284/6T 3Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 02009ET3E286T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating20 HP
- Rated Speed880 rpm
- Number of Poles8 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- Slip 2.22 %
- Locked rotor time 36s (cold) 20s (hot)
- Rated speed 880 rpm
- Rated torque 119 ft.lb
- Voltage 208-230/460 V
- Number of Poles 8
- Breakdown torque 229 %
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- L. R. Amperes 374-338/169 A
- No load current 29.9-27.0/13.5 A
- Frequency 60 Hz
- Design A
- Approx. weight³ 472 lb
- LRC 6.0x(Code H)
- Duty Cycle Cont.(S1)
- Frame 284/6T
- Moment of inertia (J) 8.70 sq.ft.lb
- Mounting F-1
- Output 20 HP (15 kW)
- Service factor 1.00
- Standard NEMA MG-1
- Rated current 62.4-56.4/28.2 A
- Starting Method Direct On Line
- Number of poles 8
- Insulation Class F
- Locked rotor torque 220 %
- Flange Without
- Rated voltage 208-230/460 V
- Ambient temperature -20°C to +40°C
- Synchronous speed 900 rpm
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Noise level² 54.0 dB(A)
- Output rating 20 HP
- Degree of Protection IP55
- Enclosure IC411 - TEFC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
