00736ET3J213TCF3-W22 WEG AC Motors
Part#:00736ET3J213TCF3-W22
Manufacturer:WEG
Alt. Part#:7909323349885
Product Lifecycle:Active
Get a quick Quote!

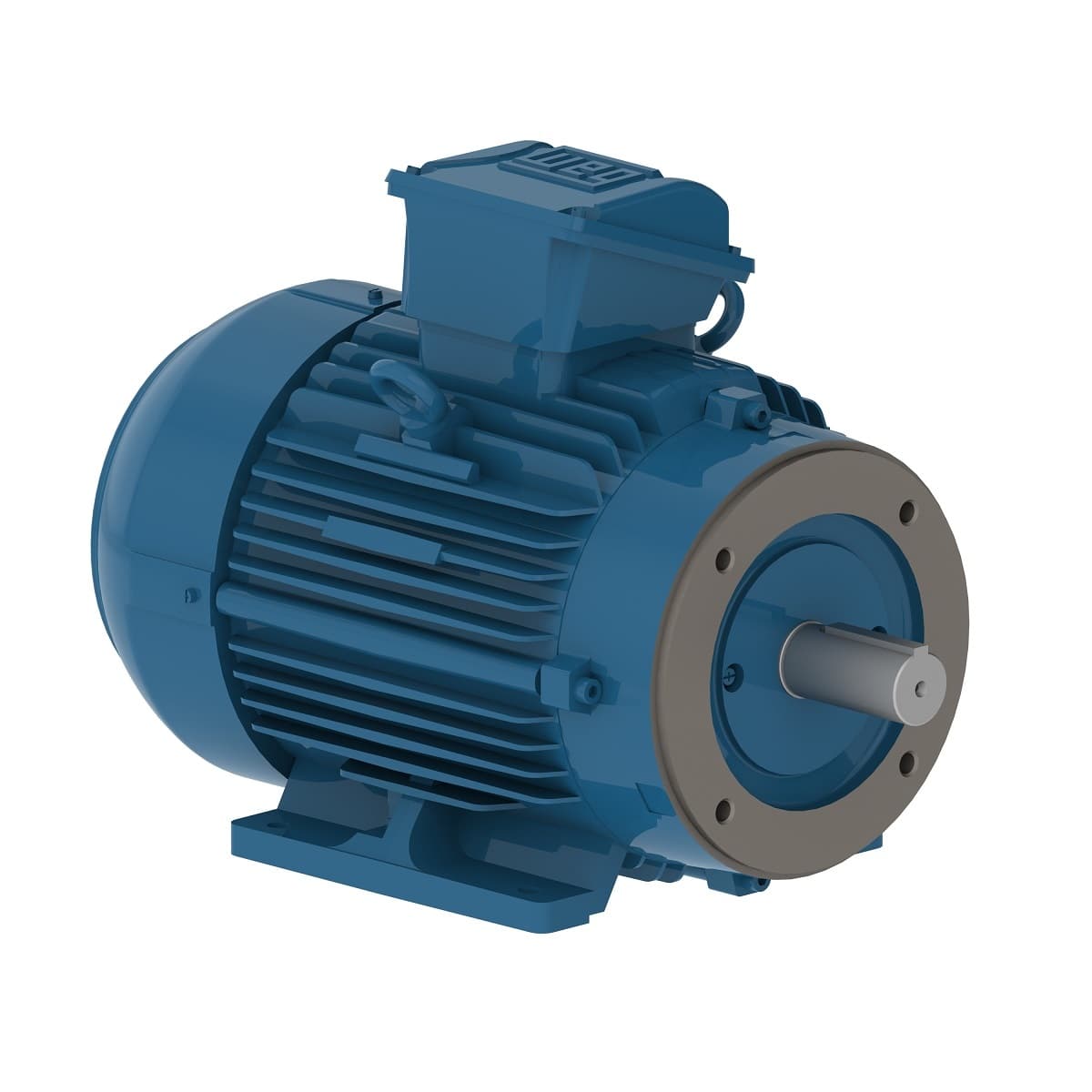

W22 NEMA Premium Efficiency 7.5 HP 2P 213TC 3Ph 380 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 00736ET3J213TCF3-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating7.5 HP
- Rated Speed3530 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeC
- LRC 7.2x(Code H)
- Temperature rise 80 K
- Flange C
- L. R. Amperes 76.4 A
- Locked rotor torque 210 %
- Output rating 7.5 HP
- Frame 213TC
- Rated torque 11.2 ft.lb
- Duty Cycle Cont.(S1)
- Noise level² 68.0 dB(A)
- Rated voltage 380 V
- Frequency 60 Hz
- Moment of inertia (J) 0.4665 sq.ft.lb
- Locked rotor time 36s (cold) 20s (hot)
- Ambient temperature -20°C to +40°C
- Rated current 10.6 A
- Rated speed 3530 rpm
- Design B
- Service factor 1.25
- Output 7.5 HP (5.5 kW)
- Insulation Class F
- Mounting F-3
- Slip 1.94 %
- Breakdown torque 300 %
- Starting Method Direct On Line
- Standard NEMA MG-1
- Number of Poles 2
- No load current 3.63 A
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Enclosure IC411 - TEFC
- Terminal box¹ Top
- Voltage 380 V
- Rotation¹ Both (CW and CCW)
- Degree of Protection IP55
- Approx. weight³ 139 lb
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
