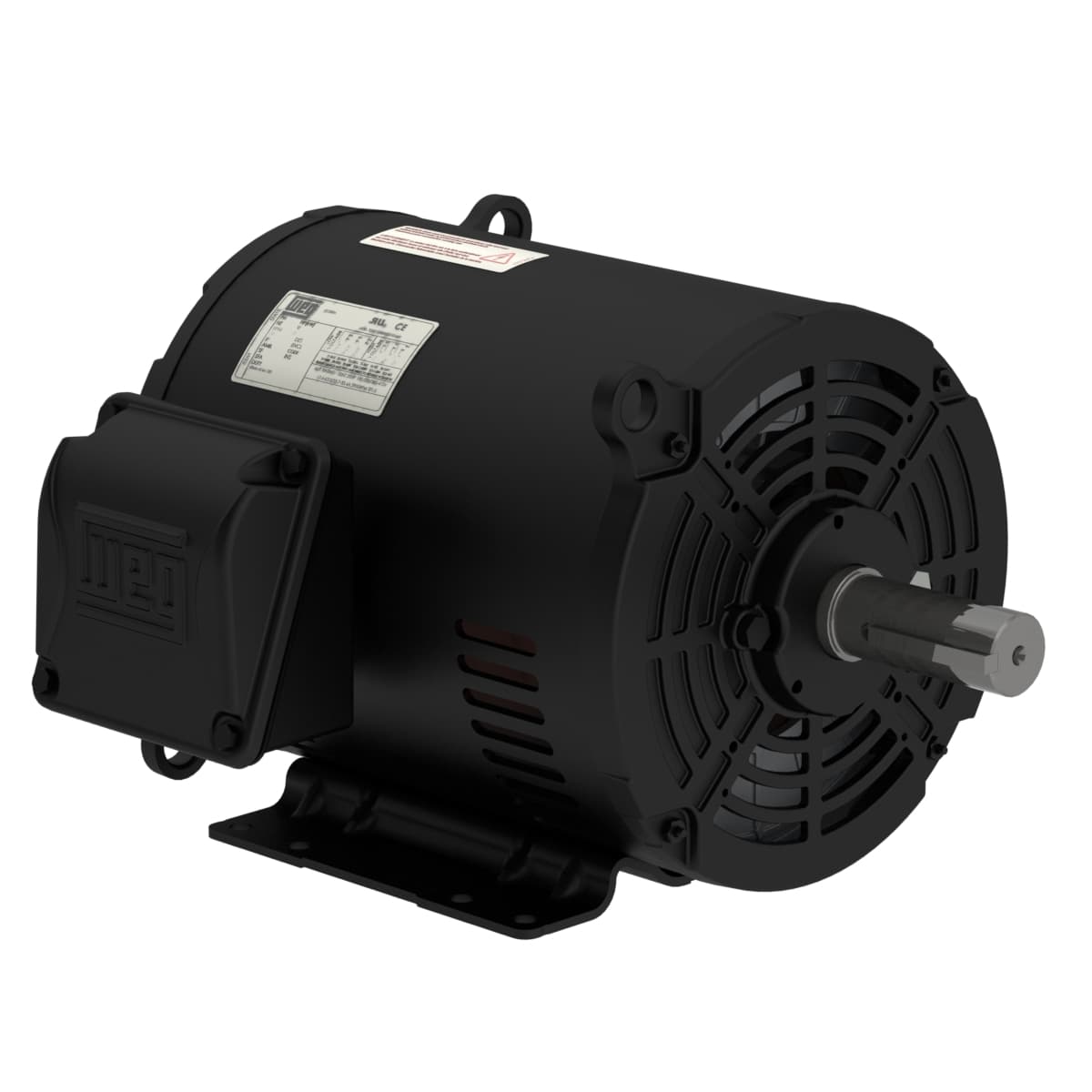

00518OT3E184T-S WEG AC Motors
Part#:00518OT3E184T-S
Manufacturer:WEG
Alt. Part#:7909158438297
Product Lifecycle:Active
Get a quick Quote!
Rolled Steel NEMA Premium Efficiency 5 HP 4P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00518OT3E184T-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating5 HP
- Rated Speed1760 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeWithout
- Frame 182/4T
- Rated torque 14.9 ft.lb
- Duty Cycle Cont.(S1)
- Number of poles 4
- Terminal box¹ Left position
- L. R. Amperes 91.2/45.6 A
- Locked rotor torque 200 %
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Rated current 12.7/6.33 A
- Frequency 60 Hz
- Locked rotor time 21s (cold) 12s (hot)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Altitude 1000 m.a.s.l.
- Output rating 5 HP
- Rated voltage 230/460 V
- Number of Poles 4
- LRC 7.2x(Code J)
- Breakdown torque 310 %
- Temperature rise 80 K
- Noise level² 55.0 dB(A)
- Approx. weight³ 79.6 lb
- Rated speed 1760 rpm
- Service factor 1.15
- Starting Method Direct On Line
- Mounting F-1
- Synchronous speed 1800 rpm
- Flange Without
- Output 5 HP (3.7 kW)
- Slip 2.22 %
- No load current 6.29/3.15 A
- Moment of inertia (J) 0.4003 sq.ft.lb
- Design B
- Enclosure IC01 - ODP
- Voltage 230/460//190-220/380-415 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00518OT3E184T-S Specs
