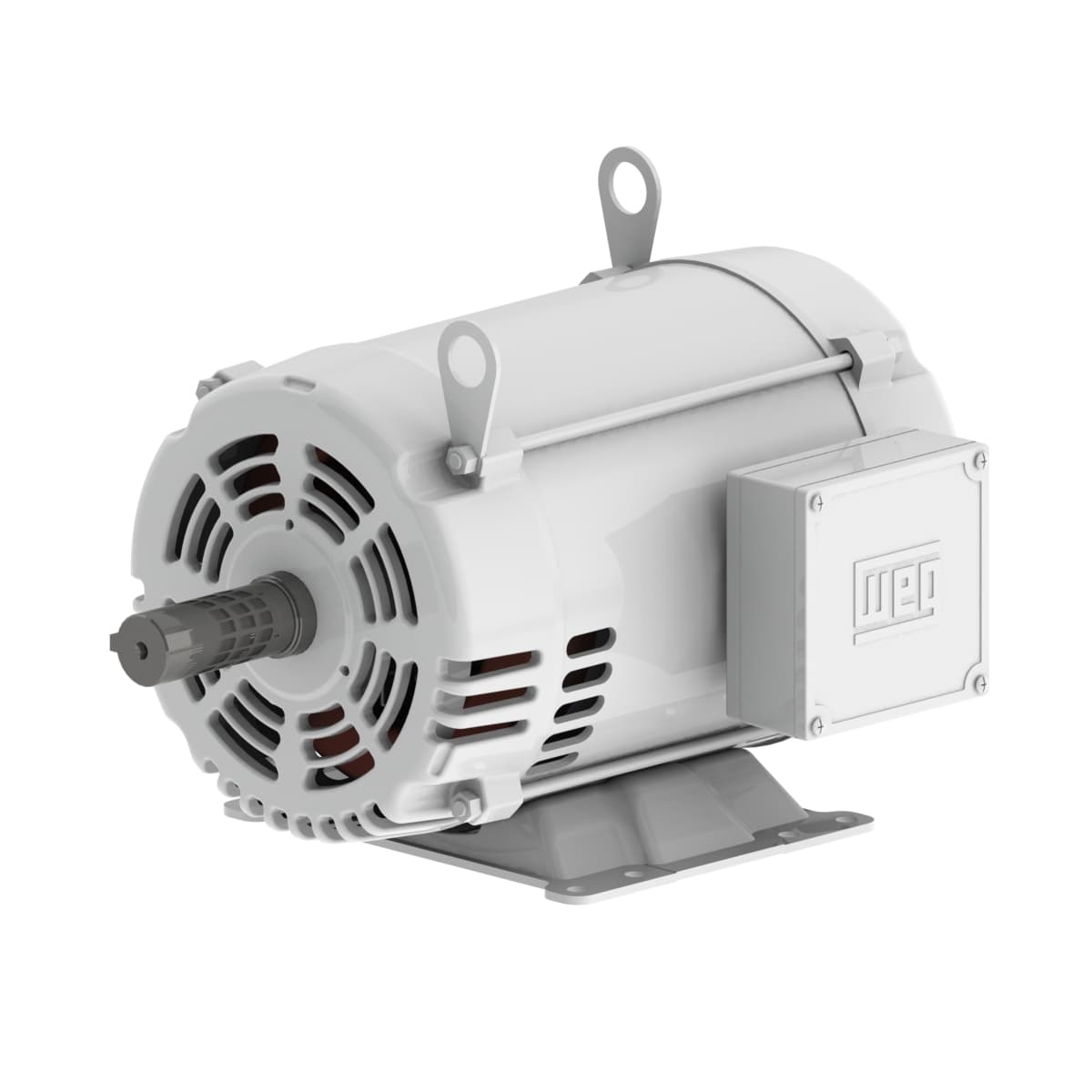

00312OS3EOW213T WEG AC Motors
Part#:00312OS3EOW213T
Manufacturer:WEG
Alt. Part#:7890208358767
Product Lifecycle:Active
Get a quick Quote!
General Standard Efficiency 3 HP 6P 213/5T 3Ph 208-230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 00312OS3EOW213T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating3 HP
- Rated Speed1115 rpm
- Number of Poles6 Pole
- Voltage208-230/460 V
- Flange TypeWithout
- L. R. Amperes 59.1-53.5/26.7 A
- Moment of inertia (J) 0.9198 sq.ft.lb
- Noise level² 58.0 dB(A)
- Voltage 208-230/460 V
- Output 3 HP (2.2 kW)
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Frequency 60 Hz
- No load current 6.63-6.00/3.00 A
- Temperature rise 80 K
- Approx. weight³ 99.0 lb
- Slip 7.08 %
- LRC 5.7x(Code H)
- Enclosure IC01 - ODP
- Service factor 1.00
- Locked rotor torque 380 %
- Number of poles 6
- Number of Poles 6
- Breakdown torque 0 %
- Starting Method Direct On Line
- Output rating 3 HP
- Rated speed 1115 rpm
- Locked rotor time 39s (cold) 22s (hot)
- Mounting F-2
- Terminal box¹ Right position
- Frame 213/5T
- Rated torque 14.1 ft.lb
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Rated current 10.4-9.38/4.69 A
- Design D
- Altitude 1000 m.a.s.l.
- Flange Without
- Rated voltage 208-230/460 V
- Insulation Class F
- Degree of Protection IP21
- Synchronous speed 1200 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 00312OS3EOW213T Specs
1-year warranty
