.5012ES1B56CFL-S WEG AC Motors
Part#:.5012ES1B56CFL-S
Manufacturer:WEG
Alt. Part#:7909492928546
Product Lifecycle:Active
Get a quick Quote!

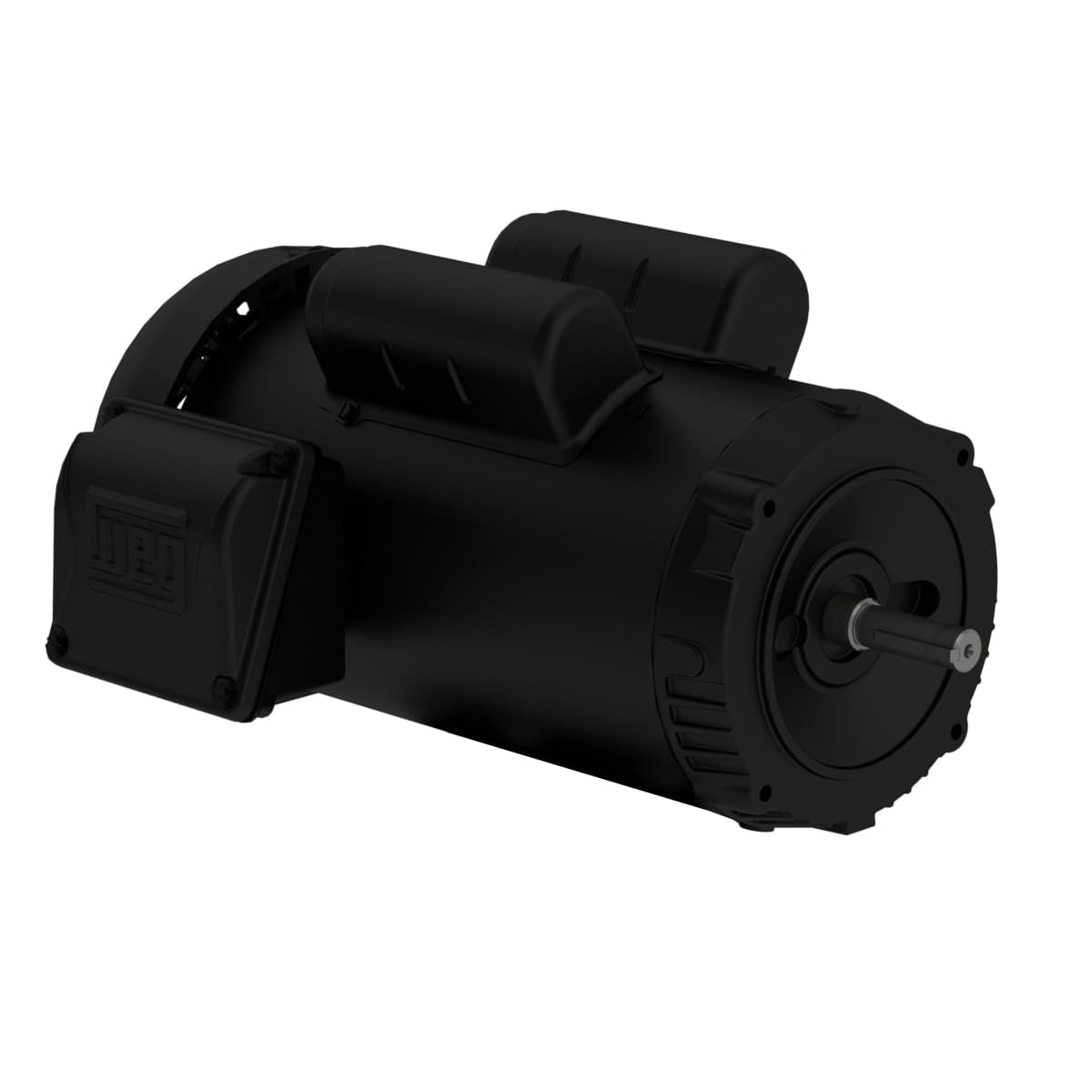

Rolled Steel 0.5 HP 6P 56C 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Footless
Check out the .5012ES1B56CFL-S WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating0.5 HP
- Rated Speed1170 rpm
- Number of Poles6 Pole
- Voltage115/208-230 V
- Flange TypeC
- Slip 2.50 %
- Rated torque 2.24 ft.lb
- Altitude 1000 m.a.s.l.
- Rated current 6.40/3.54-3.20 A
- Design N
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Frequency 60 Hz
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Flange C
- L. R. Amperes 42.2/23.4-21.1 A
- Breakdown torque 260 %
- Rotation¹ Both (CW and CCW)
- Frame 56C
- Service factor 1.15 (1.00 @ 208V)
- Approx. weight³ 32.0 lb
- Output rating 0.5 HP
- Rated voltage 115/208-230 V
- No load current 4.40/1.90-2.20 A
- Duty Cycle Cont.(S1)
- Number of poles 6
- Output 0.5 HP (0.37 kW)
- Locked rotor torque 240 %
- Starting Method Direct On Line
- Voltage 115/208-230 V
- LRC 6.6x(Code L)
- Insulation Class F
- Noise level² 54.0 dB(A)
- Number of Poles 6
- Moment of inertia (J) 0.1241 sq.ft.lb
- Degree of Protection IP55
- Synchronous speed 1200 rpm
- Rated speed 1170 rpm
- Locked rotor time 32s (cold) 18s (hot)
- Mounting F-1
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents .5012ES1B56CFL-S Specs
