BDL26025LU Schneider Electric Industrial Automation Components
Part#:BDL26025LU
Manufacturer:Schneider Electric
Product Lifecycle:Active
Get a quick Quote!

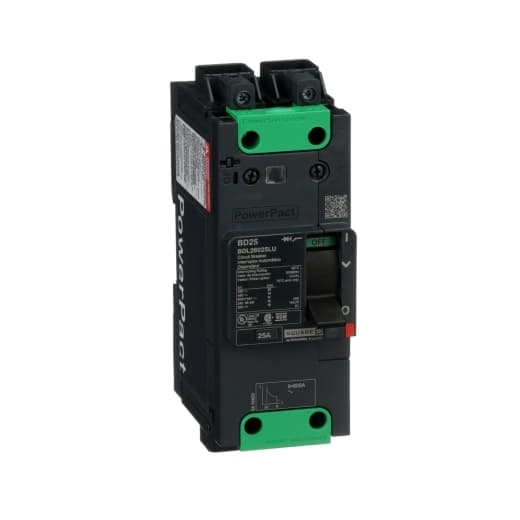

Square D by Schneider Electric BDL26025LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 25A 600Y/347Vac 14kA design. It includes Everlink (Creep compensating) lugs on both line and load sides and a Control Wire terminal (CWT) on the line side only. This MCCB offers a degree of protection of IP40 and has a rated current of 25A with a rated voltage of 600Vac 600Y/347Vac. It is designed for fixed mounting on a DIN rail or as an individual unit mount on a plate, with a 2-pole (2P) configuration. The net dimensions are 137 mm in height, 80 mm in depth, and 54 mm in width. It falls under utilisation category A and features over-current protection fixed at 25A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V, and it provides thermal and magnetic protection functions. The trip current rating is 25 AT, with a frame current rating of 100 AF. It operates via a toggle (manual) mode and has a short circuit breaking rating of up to 25kA at 240Vac, 18kA at 480Vac, and 14kA at 600Y/347Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.
About the manufacturer: Schneider Electric is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. We provide digital solutions for energy and automation that improve efficiency and support sustainability. Our comprehensive solutions include cutting-edge energy technologies, real-time automation, software, and services for residential, commercial, and industrial settings.
Check out the BDL26025LU Schneider Electric price in the box on the right side or send a quick quote.
Product Details
- Device Short Name BD 025
- Suitability For Isolation Yes conforming to IEC 60947-2
- Connection Pitch 1.06 in (27 mm)
- 9 Mm Pitches 6
- Control Type Toggle
- [Ui] Rated Insulation Voltage 800 V IEC 60947-2
- Local Signalling for presence of auxiliary contacts flag (green)
- Depth 3.15 in (80 mm)
- Continuous Current Rating 80 %
- Line Rated Current 25 A
- Product Name PowerPact B
- [Ue] Rated Operational Voltage 525 V AC 50/60 Hz UL 489
- Mechanical Durability 15000 cycles IEC 947-1 Annex K ed 5.2
- Color Grey (RAL 7016)
- Number Of Poles 2P
- [Uimp] Rated Impulse Withstand Voltage 8 kV IEC 60947-2
- Electrical Durability 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Power Wire Stripping Length 0.79 in (20 mm)
- Device Application Distribution
- Trip Unit Technology Thermal-magnetic
- Width 2.13 in (54 mm)
- Protected Poles Description 2t
- Product Or Component Type Circuit breaker
- Trip Unit Name TM-D
- Height 5.39 in (137 mm)
- Range PowerPact
- Breaking Capacity Code D
- Utilisation Category Category A
- Quantity Per Set Set of 1
- Net Weight 1.70 lb(US) (0.769 kg)
- Mounting Mode Clip-on 35 mm symmetrical DIN rail) By screws plate)
- AWG Gauge AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Number Of Slots 1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in)
- Tightening Torque 44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
- Electrical Connection Everlink lug line Everlink lug load
- [Ics] Rated Service Breaking Capacity 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Breaking Capacity 25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents BDL26025LU Specs
