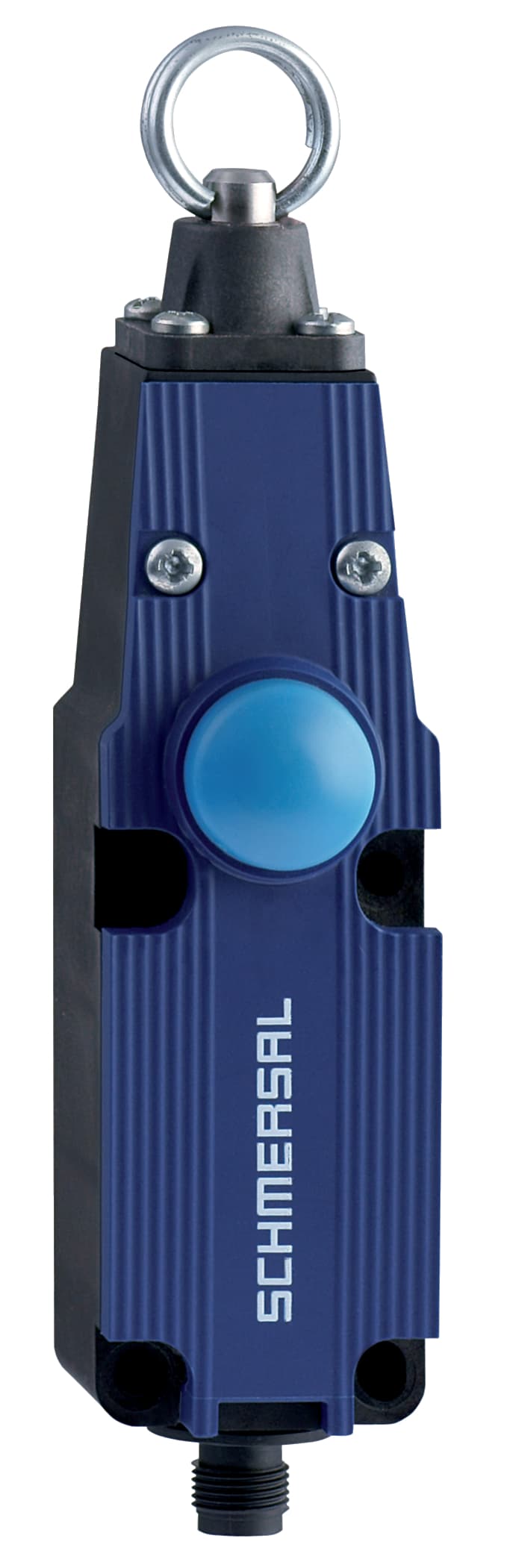

ZQ 700 FK-AS Schmersal Electronic Components
Part#:ZQ 700 FK-AS
Manufacturer:Schmersal
Alt. Part#:101215845
Product Lifecycle:Active
Get a quick Quote!
AS interface safety at work (archive); Safety switches; AS interface Connection for flat cable, bottom, can be rotated; Thermoplastic enclosure; One tension force for cable lengths up to 10 m; Release push button; Position indicator; Twisting of towing ey
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the ZQ 700 FK-AS Schmersal price in the box on the right side or send a quick quote.
Product Details
- Actuating travel 400 mm
- Actuating force, maximum 200 N
- Note (Relative humidity) non-condensing, non-icing
- Degree of pollution to VDE 0100 3
- Note (AS-i Operating voltage) Protection against polarity reversal
- AS-i Input, Channel 2 Data bits DI 2 / DI 3 = dynamic code transmission
- Gross weight 265 g
- Ambient temperature, minimum -25 °C
- Rated insulation voltage Ui 32 V
- AS-i Version V 3.0
- AS-i Parameter bits, P2 No function
- Length of the wire, maximum 10 m
- Degree of protection IP67 to EN 60529
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz, amplitude 0.35 mm / 5 g
- AS-i Operating voltage AS-i maximum 31.6 VDC
- AS-i, ID-Code 0xB
- AS-i Input module address 0
- Mechanical life, minimum 100,000 Operations
- Width of sensor 40.5 mm
- Restistance to shock 15 g / 11 ms
- Switching principle Snap switch element
- AS-i Parameter bits, P0 Channel 2 switched
- Height of sensor 182.5 mm
- Storage and transport temperature, maximum +85 °C
- Reaction time, maximum 100 ms
- AS-i, ID-Code1 0xF
- AS-i Parameter bits, P1 No function
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Ambient temperature, maximum +60 °C
- Overvoltage category III
- AS-i Operating voltage, minimum 18 VDC
- AS-i Input, Channel 1 Data bits DI 0 / DI 1 = dynamic code transmission
- Note (AS-i Input module address) Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
- Material of the cover Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Storage and transport temperature, minimum -25 °C
- Rated impulse withstand voltage Uimp 0.8 kV
- AS-i, IO-Code 0x0
- AS-i Parameter bits, P3 No function
- Length of sensor 51 mm
- Relative humidity, maximum 95 %
- Protection rating II
- AS-i Profile S-0.B.F.F
- AS-i Outputs, DO 0 … DO 3 No Function
- Standards IEC 61508, EN 60947-5-1, EN 50295
- Terminal Connector Connection for flat cable
- Relative humidity, minimum 30 %
- Operating Current 50 mA
- Switching frequency 3,600 /h
- AS-i, ID-Code2 0xF
- Note (AS-i Parameter bits) Set the parameter outputs to "1111" (0xF), FID: periphery error
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents ZQ 700 FK-AS Specs
