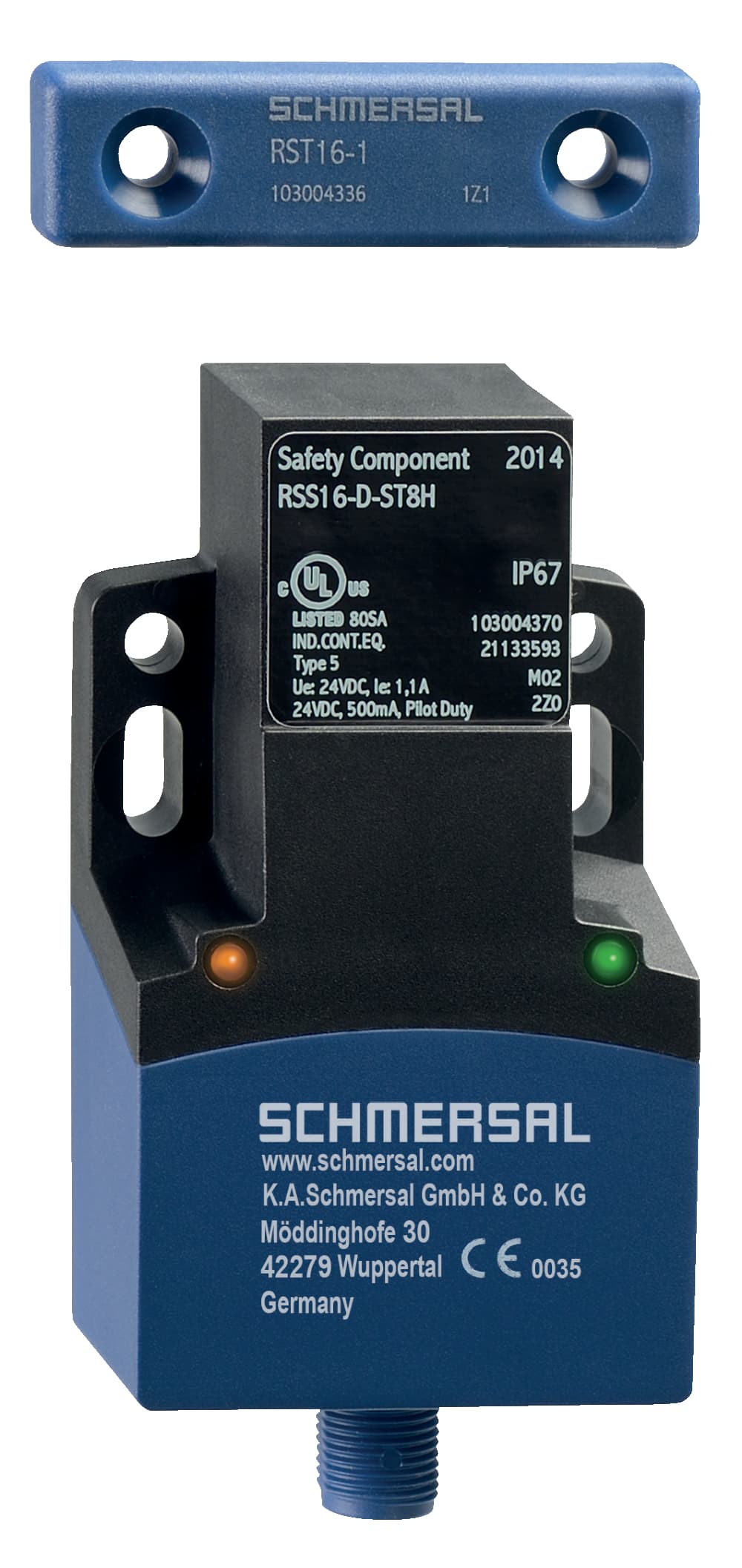

RSS16-I2-D-CC Schmersal Safety Switches
Part#:RSS16-I2-D-CC
Manufacturer:Schmersal
Alt. Part#:103004351
Product Lifecycle:Active
Get a quick Quote!
RSS16-I2-D-CC Schmersal - Safety sensors; Electronic safety sensors; Repeated individual coding with RFID technology; Coding level "High" according to ISO 14119; Spring pulley connection; Series-wiring unlimited; without latching; Repeated individual coding with RFID technology; T
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RSS16-I2-D-CC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Height of sensor 30 mm
- Rated insulation voltage Ui 32 VDC
- No-load supply current I0 100 mA
- Voltage, Utilisation category DC13 24 VDC
- Hysteresis (Switch distance), maximum 2 mm
- Length of sensor 91 mm
- Rated impulse withstand voltage Uimp 0.8 kV
- Rated operating voltage, minimum 20.4 VDC
- EMC rating IEC 60947-3
- Current, Utilisation category DC13 0.05 A
- Ensured switch distance ON Sao 12 mm
- Ambient temperature, minimum -25 °C
- Storage and transport temperature, minimum -25 °C
- Overvoltage category III
- Output current, (fail-safe output), maximum 1 A
- Interfering radiation IEC 61000-6-4
- Switch distance 15 mm
- Terminal Connector Spring pulley connection
- Voltage type DC (direct current)
- Rated operating current (safety outputs) 1,000 mA
- Voltage drop Ud, maximum 2 V
- Gross weight 275 g
- Tightening torque of nuts, maximum 2 Nm
- Note The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
- Protection rating 0
- Required rated short-circuit current to EN 60947-5-1 100 A
- Versions p-type
- Sensor topology Sensor for series wiring
- Ensured switch distance OFF Sar 30 mm
- Width of sensor 52 mm
- Storage and transport temperature, maximum +85 °C
- Switching frequency, approx. 1 Hz
- Voltage, Utilisation category DC12 24 VDC
- Mounting 2 x M5, Cylinder head screw
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Degree of pollution to VDE 0100 3
- Rated operating voltage, maximum 26.4 VDC
- Current, Utilisation category DC12 0.05 A
- Repeat accuracy R R 0.5 mm
- Restistance to shock 30 g / 11 ms
- Ambient temperature, maximum +70 °C
- Operating current 50 mA
- Current leakage Ir 0.5 mA
- Standards IEC 60947-5-3
- Safety functions Yes
- Active area lateral, front side, cover-side
- Installation conditions (mechanical) not flush
- Short circuit detection Yes
- Number of semi-conductor outputs with signaling function 1
- Coding level according to ISO 14119 High
- Active principle RFID
- Integral System Diagnostics, status Yes
- general information Individual coding, multiple teaching
- Short-circuit recognition Yes
- Number of LEDs 2
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Housing construction form Block
- Cascadable Yes
- Reaction time, maximum 100 ms
- Diagnostic output Yes
- Number of fail-safe digital outputs 2
- Time to readiness, maximum 2,000 ms
- Series-wiring Yes
- Duration of risk, maximum 200 ms
- Actuating panels front side, rear, from head
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
RSS16-I2-D-CC Description
RSS16-I2-D-CC Schmersal - Safety sensors; Electronic safety sensors; Repeated individual coding with RFID technology; Coding level "High" according to ISO 14119; Spring pulley connection; Series-wiring unlimited; without latching; Repeated individual coding with RFID technology; T
Related documents RSS16-I2-D-CC Specs
