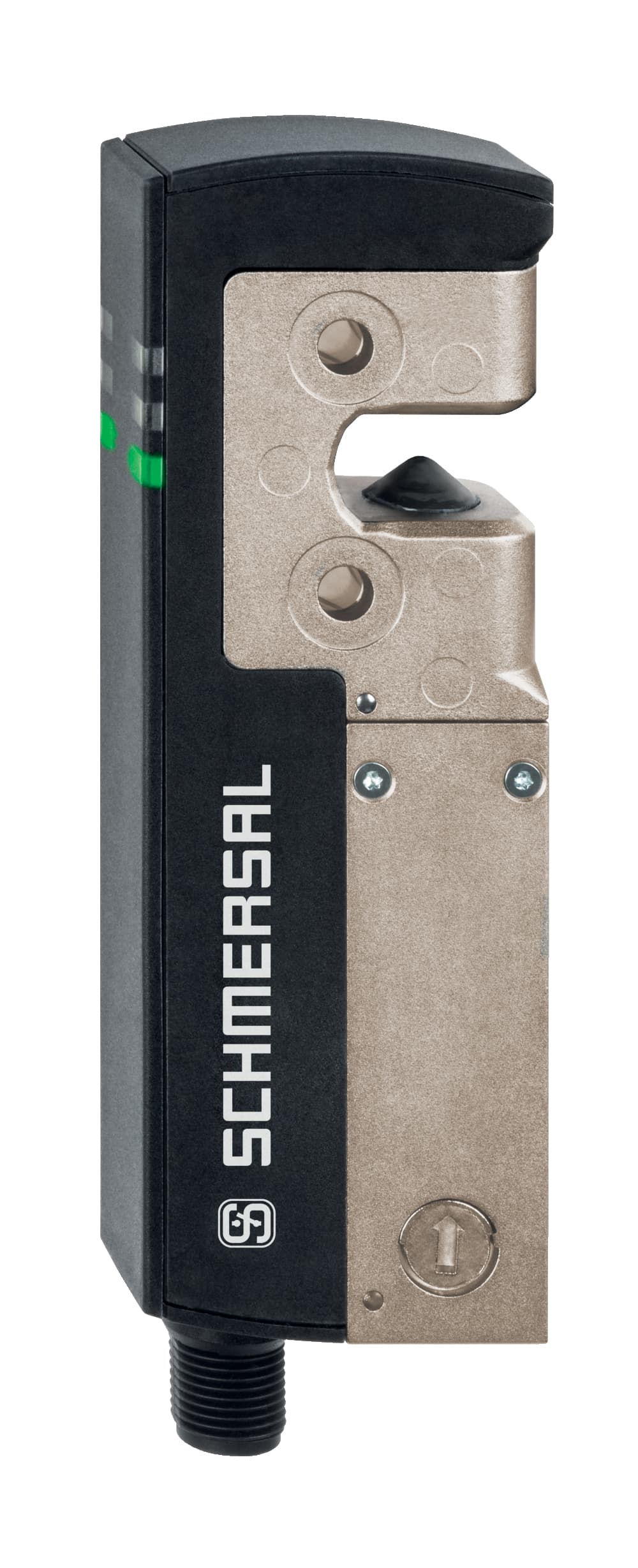

AZM40B-ST-1P2P-PH Schmersal Safety Switches
Part#:AZM40B-ST-1P2P-PH
Manufacturer:Schmersal
Alt. Part#:103037330
Product Lifecycle:Active
Get a quick Quote!
AZM40B-ST-1P2P-PH Schmersal - Solenoid interlocks; Compact, flat design; 119,5 mm x 40 mm x 20 mm; High holding force 2000; Latching force 40 N; RFID-technology for needs-based protection against tampering; Individually coded version with coding level "High" according to ISO 14119; On
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM40B-ST-1P2P-PH Schmersal price in the box on the right side or send a quick quote.
Product Details
- Active principle RFID
- Gross weight 304.1 g
- Actuator monitored Yes
- Integral System Diagnostics, status Yes
- Mechanical life, minimum 200,000 Operations
- Clamping force, maximum Fmax 2,600 N
- Terminal Connector Connector M12, 8-pole, A-coded
- Ambient temperature, maximum +55 °C
- Protection rating III
- Operating current 1,200 mA
- No-load supply current I0 100 mA
- Coding level according to ISO 14119 Low
- Enclosure material Glass-fibre, reinforced thermoplastic and light-alloy diecast
- Series-wiring Yes
- Interlocking principle bistable
- Length of sensor 119.5 mm
- Restistance to shock 30 g / 11 ms
- Switching frequency, maximum 0.3 Hz
- Voltage, Utilisation category DC12 24 VDC
- general information Universal coding
- Short circuit detection Yes
- Safety functions Yes
- Height of sensor 20 mm
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Required rated short-circuit current to EN 60947-5-1 100 A
- Rated operating current (safety outputs) 250 mA
- Voltage drop Ud, maximum 2 V
- Time to readiness, maximum 4,000 ms
- Short-circuit recognition Yes
- Latching force 40 N
- Degree of protection IP66 to EN 60529, IP67 to EN 60529
- Rated impulse withstand voltage Uimp 0.8 kV
- Current consumption at 24V 5 mA
- Current leakage Ir 0.5 mA
- Duration of risk, maximum 200 ms
- Latching Yes
- Clamping force in accordance with ISO14119 Fzh 2,000 N
- Type of the fixing screws DESIGN_MOUNTING_SCREWS11111111111111111112
- Storage and transport temperature, maximum +85 °C
- Rated insulation voltage Ui 32 VDC
- Note Cable length and cable section alter the voltage drop depending on the output current
- Reaction time, maximum 100 ms
- Actuating speed, maximum 0.5 m/s
- Width of sensor 40 mm
- Overvoltage category III
- Classification ZVEI CB24I, Source C2
- Current, Utilisation category DC12 0.05 A
- Standards IEC 61508, EN 60947-5-3, EN ISO 13849-1
- Response time safety outputs in case of switch-off by safety inputs, maximum 1.5 ms
- Manual release Yes
- Ensured switch distance ON Sao 1 mm
- Ambient temperature, minimum +0 °C
- Degree of pollution to VDE 0100 3
- Current consumption solenoid at switching moment, peak 600 mA / 100ms
- Current, Utilisation category DC13 0.05 A
- Rated operating voltage 24 VDC - 15 % / + 10 % (stabilised PELV)
- Switching thresholds −3 V … 5 V (Low), 15 V … 30 V (High)
- Versions short-circuit proof, p-type
- Voltage, Utilisation category DC13 24 VDC
- Storage and transport temperature, minimum -40 °C
- Classification ZVEI CB24I, Sink C1, C2
- Ensured switch distance OFF Sar 8 mm
- Number of safety contacts 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
AZM40B-ST-1P2P-PH Description
AZM40B-ST-1P2P-PH Schmersal - Solenoid interlocks; Compact, flat design; 119,5 mm x 40 mm x 20 mm; High holding force 2000; Latching force 40 N; RFID-technology for needs-based protection against tampering; Individually coded version with coding level "High" according to ISO 14119; On
Related documents AZM40B-ST-1P2P-PH Specs
