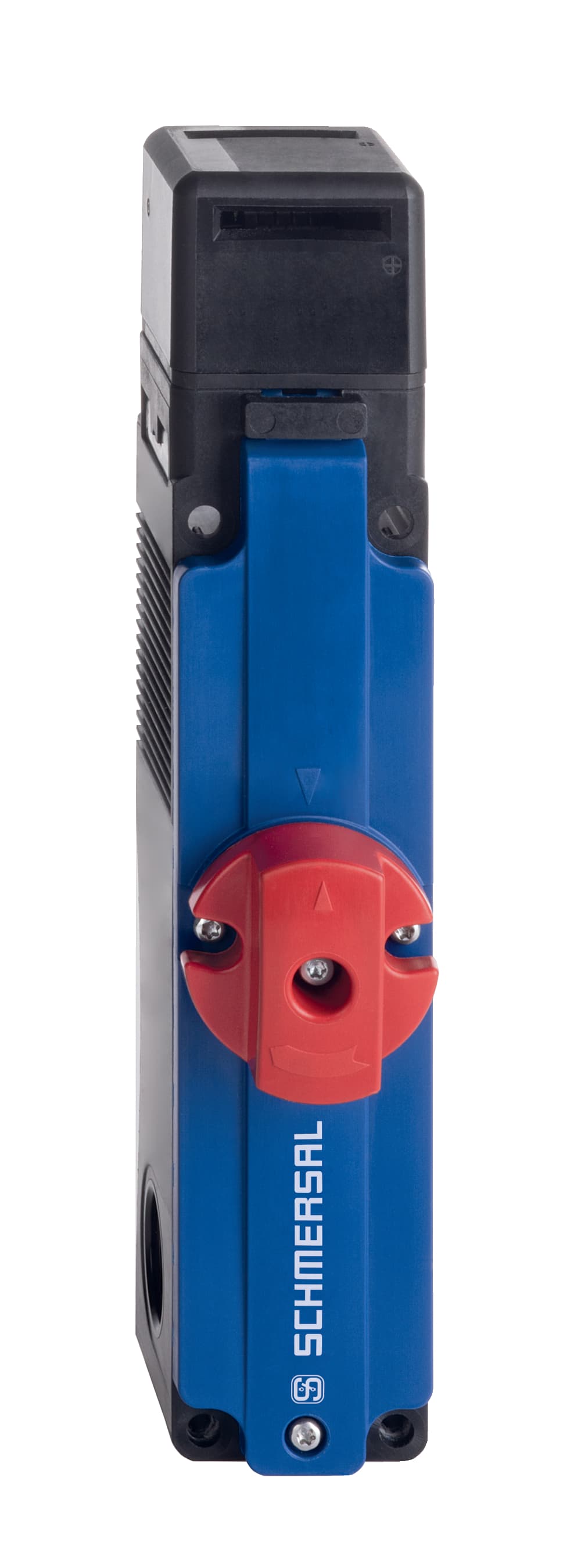

AZM150SK-02/11RT-024 Schmersal Safety Switches
Part#:AZM150SK-02/11RT-024
Manufacturer:Schmersal
Alt. Part#:153032169
Product Lifecycle:Active
Get a quick Quote!
AZM150SK-02/11RT-024 Schmersal - Solenoid interlocks; Thermoplastic enclosure; Eight approach levels thanks to rotating head; Individually coded version with coding level "High" according to ISO 14119; Simple fitting, especially on 40 mm profiles
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM150SK-02/11RT-024 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Number of actuating directions 2
- Number of safety contacts 3
- Terminal Connector Screw terminals
- Ambient temperature, maximum +55 °C
- Rated control voltage 24 VDC
- Switching frequency 1,000 /h
- Power to unlock Yes
- Clamping force, maximum Fmax 1,950 N
- Cable section, minimum 1 x 0.25 mm²
- Rated impulse withstand voltage Uimp 4 kV
- Emergency exit Yes
- Positive break force, minimum 40 N
- Cable section, maximum 1 x 2.5 mm²
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Required rated short-circuit current to EN 60947-5-1 400 A
- Enclosure material Thermoplastic, Polyamide PA 6 GF
- Number of auxiliary contacts 1
- Rated insulation voltage Ui 300 V
- Width of sensor 40 mm
- Electrical power consumption, maximum 8.5 W
- Coding level according to ISO 14119 Low
- Latching force, approx. 50 N
- Cable entry 3 x M20 x 1,5
- Height of sensor 204 mm
- Thermal test current 5 A
- Switching element NC contact, NO contact
- Standards EN 60947-5-1, EN ISO 14119
- Material of the contacts, electrical Silver
- Mechanical life, minimum 1,000,000 Operations
- Mounting Screws
- Ambient temperature, minimum -25 °C
- Switching principle Creep circuit element
- Utilisation category DC-13 2.5 A
- Gross weight 600.6 g
- Clamping force in accordance with ISO14119 Fzh 1,500 N
- Actuating speed, maximum 0.2 m/s
- Storage and transport temperature, minimum -40 °C
- Utilisation category AC-15 3 A
- Length of sensor 64 mm
- positive break travel 10 mm
- Active principle electromechanical
- Storage and transport temperature, maximum +85 °C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
AZM150SK-02/11RT-024 Description
AZM150SK-02/11RT-024 Schmersal - Solenoid interlocks; Thermoplastic enclosure; Eight approach levels thanks to rotating head; Individually coded version with coding level "High" according to ISO 14119; Simple fitting, especially on 40 mm profiles
