2576100 Rittal Electronic Components
Part#:2576100
Manufacturer:Rittal
Product Lifecycle:Active
Get a quick Quote!

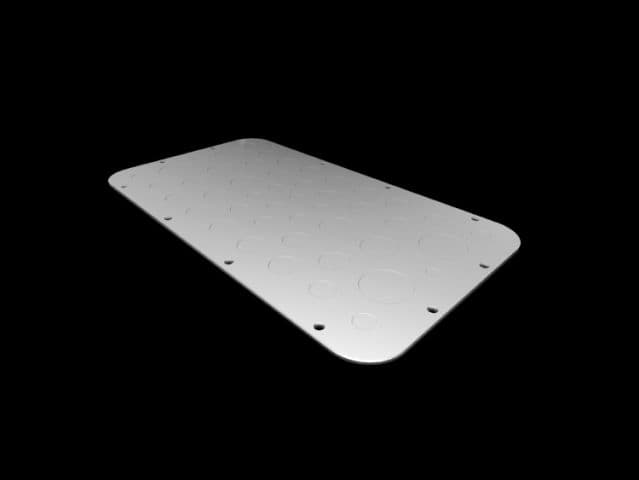

SZ Metal gland plate, for AX, with metric knockouts, WD: 401x221 mm, for gland plates size 6
About the manufacturer: Rittal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Rittal is renowned for producing high-quality industrial and IT enclosures, racks, and accessories, along with efficient power management and climate control systems for a range of applications including industrial, data center, outdoor, and hybrid environments.
Check out the 2576100 Rittal price in the box on the right side or send a quick quote.
Product Details
- Product modification From April 2021, the metal gland plates with metric knockouts for AX and KX will been given an optimized design with micro ridges for easy removal of the breakouts.
- Material Carbon steel
- Cable entry Number x metric diameter: 2 x M12 , Number x metric diameter: 10 x M16 , Number x metric diameter: 8 x M20 , Number x metric diameter: 18 x M25 , Number x metric diameter: 4 x M32 , Number x metric diameter: 4 x M40
- Customs tariff number 73269098
- Suitable for Enclosure type: AX
- EAN 4028177925281
- Flange plate, size 6
- ETIM 7.0 EC000211
- Protection category IP to IEC 60 529 IP 66 if correctly installed
- eCl@ss 8.0/8.1 27142421
- Note The assignment of the flange plate size can be found on the respective housings
- Packaging unit 1 pc(s)
- eCl@ss 6.0/6.1 27189190
- Color RAL 7035
- Weight/packaging unit 1.41 kg ( 3.1lb. )
- Dimensions Width: 401 mm, Depth: 221 mm
- ETIM 6.0 EC000211
- Product description SZ Metal gland plate, for AX, with metric knockouts, WD: 401x221 mm, for gland plates size 6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 2576100 Specs
