2500320 Rittal Electronic Components

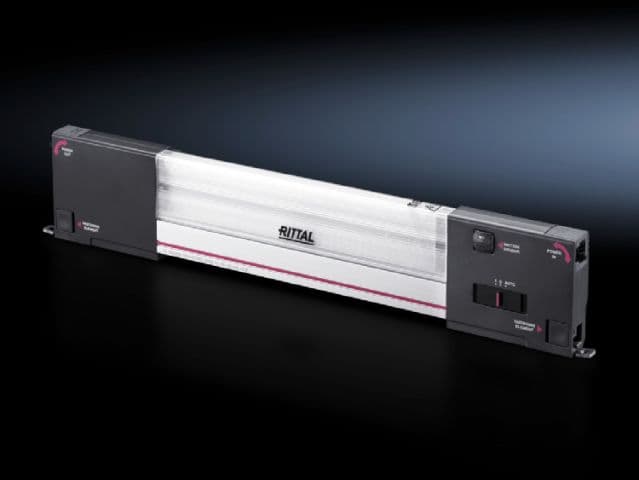

Rittal 2500320 SZ System Light LED, 1200 Lumen, L: 437 mm, 24 V DC, with integral motion sensor
Rittal

Part#:2500320

Manufacturer:Rittal

Product Lifecycle:Active

Get a quick Quote!

SZ System Light LED, 1200 Lumen, L: 437 mm, 24 V DC, with integral motion sensor

About the manufacturer: Rittal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Rittal is renowned for producing high-quality industrial and IT enclosures, racks, and accessories, along with efficient power management and climate control systems for a range of applications including industrial, data center, outdoor, and hybrid environments.

Check out the 2500320 Rittal price in the box on the right side or send a quick quote.

Product Details

  • Dimensions
    Width: 437 mm ( 17" ), Height: 85 mm ( 3.3" ), Depth: 37 mm ( 1.5" )
  • Motion sensor
    yes
  • Light color
    4000 K (neutral white)
  • Color
    Enclosure: RAL 7016
  • Connection options
    Power Supply, 2-pole, Through-wiring, 2-pole
  • eCl@ss 6.0/6.1
    27189241
  • Note
    Connection accessories should be ordered separately
  • Luminous flux
    1,200 lm
  • Product description
    SZ System Light LED, 1200 Lumen, L: 437 mm, 24 V DC, with integral motion sensor
  • Rated operating voltage
    24 V - 56 V (DC)
  • Protection category IP to IEC 60 529
    IP 20
  • Power consumption
    13 W
  • Customs tariff number
    94054099
  • Version
    with motion detector
  • Packaging unit
    1 pc(s)
  • ETIM 7.0
    EC000321
  • ETIM 6.0
    EC000321
  • Installation options
    Directly onto the enclosure section with 25 mm pitch pattern
  • Material
    Light body: Extruded aluminum, Light cover: Polycarbonate (halogen-free), Light ends: PC-ABS (halogen-free)
  • Light – installation type
    Screw fastening, Clip fastening, Magnetic fastener (accessories)
  • Fittings
    Motion sensor, 90° rotating connector, Adjustable light direction, Adjustable light distribution
  • Weight/packaging unit
    0.65 kg ( 1.4lb. )
  • Benefits
    Optimum illumination of the entire enclosure, Option of clip-on, screw or magnetic attachment, A configuration to suit every application
  • Operating temperature
    Operation (environment): -20 °C...+55 °C
  • Supply includes
    Assembly screws
  • Protection category
    II (total insulation)
  • eCl@ss 8.0/8.1
    27189241
  • EAN
    4028177918818

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents 2500320 Specs

2500320 UL__C_UL_EN.pdf
2500320 Declaration_of_conformity_EN_DE.pdf
