1575000 Rittal Electronic Components
Part#:1575000
Manufacturer:Rittal
Product Lifecycle:Active
Get a quick Quote!

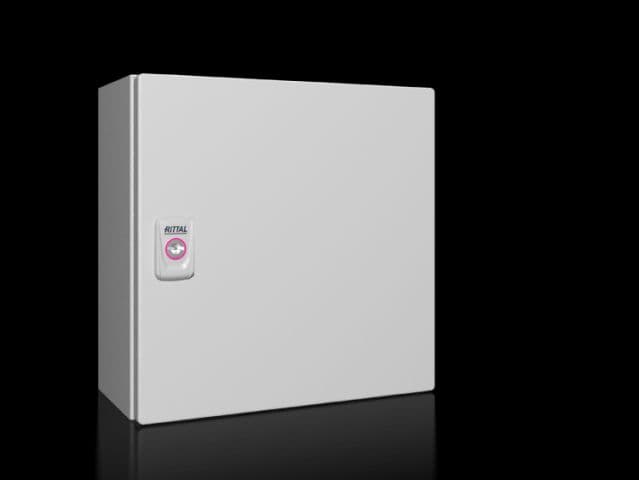

KX E-Box, WHD: 300x300x155 mm, sheet steel, with mounting plate, with door
About the manufacturer: Rittal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Rittal is renowned for producing high-quality industrial and IT enclosures, racks, and accessories, along with efficient power management and climate control systems for a range of applications including industrial, data center, outdoor, and hybrid environments.
Check out the 1575000 Rittal price in the box on the right side or send a quick quote.
Product Details
- Supply includes Housing with door, Mounting plate, Cam lock with 3 mm double-bit insert, 180° hinge
- EAN 4028177816619
- Protection category IP to IEC 60 529 IP 66
- Dimensions Width: 300 mm ( 12" ), Height: 300 mm ( 12" ), Depth: 155 mm ( 6.1" )
- IK code IK08
- Material thickness: Housing: 1.25 mm ( 0.05" ), Door: 1.25 mm ( 0.05" ), Mounting plate: 2 mm ( 0.08" )
- eCl@ss 6.0/6.1 27180101
- Base material Carbon steel
- No. of locks 1
- Product description KX E-Box, WHD: 300x300x155 mm, sheet steel, with mounting plate, with door
- Color RAL 7035
- Material Housing: Carbon steel, Door: Carbon steel, all-round foamed-in PU seal
- Mounting plate Width: 275 mm ( 11" ), Height: 285 mm ( 11" )
- Protection category NEMA NEMA 1, 3R, 4, 12
- ETIM 7.0 EC000261
- ETIM 6.0 EC000261
- Type rating according to UL 50E Type 1, 3R, 4, 12
- Weight/packaging unit 5.5 kg ( 12.1lb. )
- Surface finish Housing and door: Dipcoat primed, powder-coated on the outside, textured paint, Mounting plate: Zinc-plated
- eCl@ss 8.0/8.1 27180101
- Packaging unit 1 pc(s)
- Customs tariff number 94032080
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
1-year warranty
