108TX-MDR Red Lion Industrial Automation Components

Name: 108TX-MDR
Brand: Red Lion

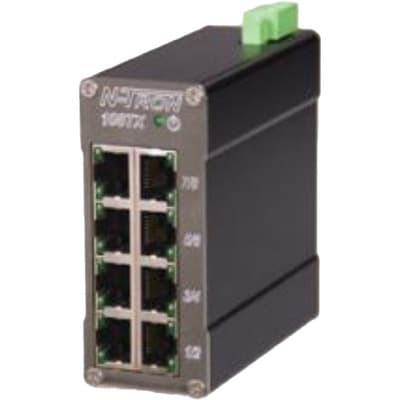

Red Lion 108TX-MDR Red Lion 108TX-MDR is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance reliability in various industrial environments. This model features 8 RJ45 ports supporting 10/100BaseTX for network connections. Encased in a tall, metallic DIN rail (MDR) enclosure, it ensures durability and ease of installation in demanding settings. The 108TX-MDR operates within an ambient air temperature range of -40 to +70°C and offers a maximum throughput of 1.6Gbit/s, catering to high-speed data transmission requirements. With an IP30 degree of protection, it is safeguarded against solid objects larger than 2.5mm. This switch uses Ethernet as its communication protocol and is part of the N-Tron 100 series, indicating its suitability for a wide range of industrial applications.

Part#:108TX-MDR

Manufacturer:Red Lion

Product Lifecycle:Active

Get a quick Quote!

Red Lion 108TX-MDR is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance reliability in various industrial environments. This model features 8 RJ45 ports supporting 10/100BaseTX for network connections. Encased in a tall, metallic DIN rail (MDR) enclosure, it ensures durability and ease of installation in demanding settings. The 108TX-MDR operates within an ambient air temperature range of -40 to +70°C and offers a maximum throughput of 1.6Gbit/s, catering to high-speed data transmission requirements. With an IP30 degree of protection, it is safeguarded against solid objects larger than 2.5mm. This switch uses Ethernet as its communication protocol and is part of the N-Tron 100 series, indicating its suitability for a wide range of industrial applications.

About the manufacturer: Red Lion is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. Red Lion Controls has been a reliable supplier to customers globally for over 40 years. Our highly regarded industrial automation and networking solutions provide vital information and controls to improve efficiency, seamlessly integrating with various devices and applications.

Check out the 108TX-MDR Red Lion price in the box on the right side or send a quick quote.

Product Details

Secondary brand
N-Tron
Sub-range name
N-Tron 100 series
Degree of protection
IP30
Contents
Metal DIN rail clip
Primary brand
Red Lion
Main function
Ethernet Switch
Design
tall encl. (MDR - Metal DIN Rail)
Communication protocol
Ethernet
Material
Metallic case
Functions
Industrial Ethernet switch
Mounting mode
DIN rail
Ambient air temperature for operation
-40...+70 °C
Order code / Manufacturer SKU
108TX-MDR
Product series / family name
Ethernet switches
Connection type
8 x RJ45 ports (10/100BaseTX)
Speed
Maximum throughput 1.6Gbit/s
Equivalent to
108TXMDR
Supply voltage (DC)
10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
Connection capacity
8-ports
Compliant with standard(s)
CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-6-4 RoHS compliant UL Class 1 Division 2 Hazardous locations

Benefits

Compact Size / Small Footprint Extended environmental specifications Hardened metal DIN rail enclosure High Performance High MTBF >2M Hours ESD Protection Diodes on all Ports Surge Protection Diodes on Power Inputs Plug & Play Operation Auto Sensing 10/10

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
