SLA4.100 Puls AC/DC Power Supplies

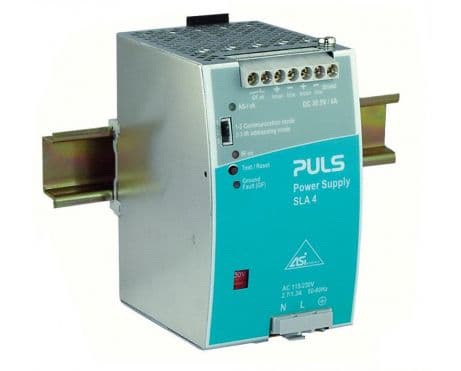

Puls SLA4.100 PULS SLA4.100 is a power supply unit designed with a PFC compliant to EN 61000-3-2 standards, featuring a DC-OK relay contact output. It serves as an AS-Interface power supply unit (PSU) encased in a robust metal housing. This unit offers screw-clamp connections for secure installation and measures W73mm x H124mm x D102mm. It supports a wide range of supply voltages, including AC inputs from 85Vac-132Vac / 187Vac-264Vac across various nominal values and a DC input range of 240Vdc-300Vdc, with a rated current of 4A at 30.5Vdc. Designed for DIN rail mounting, it operates efficiently within an ambient air temperature range of -10...+70 °C. The SLA4.100 experiences a peak inrush current consumption of 49.7A at 230Vac input and 44.7A at 120Vac input, suitable for single-phase (1AC) or DC networks. It incorporates multiple protection functions, including output overvoltage protection up to 55Vdc max., NTC for input inrush current limiting, and overload/short-circuit protection with a current range of min. 4.2A to max. 6.5A, though it does not support series or parallel operation or ground-fault monitoring. The output voltage is fixed at 30.5Vdc, with an efficiency of 0.9 at 230Vac input, a hold time of 30ms at 100Vac input, power dissipation/losses at 13.5 W under full output load at 230Vac input, and a ripple of 50mVpp across 20Hz to 20MHz at 50Ω.
Puls

Part#:SLA4.100

Manufacturer:Puls

Product Lifecycle:Active

Get a quick Quote!

PULS SLA4.100 is a power supply unit designed with a PFC compliant to EN 61000-3-2 standards, featuring a DC-OK relay contact output. It serves as an AS-Interface power supply unit (PSU) encased in a robust metal housing. This unit offers screw-clamp connections for secure installation and measures W73mm x H124mm x D102mm. It supports a wide range of supply voltages, including AC inputs from 85Vac-132Vac / 187Vac-264Vac across various nominal values and a DC input range of 240Vdc-300Vdc, with a rated current of 4A at 30.5Vdc. Designed for DIN rail mounting, it operates efficiently within an ambient air temperature range of -10...+70 °C. The SLA4.100 experiences a peak inrush current consumption of 49.7A at 230Vac input and 44.7A at 120Vac input, suitable for single-phase (1AC) or DC networks. It incorporates multiple protection functions, including output overvoltage protection up to 55Vdc max., NTC for input inrush current limiting, and overload/short-circuit protection with a current range of min. 4.2A to max. 6.5A, though it does not support series or parallel operation or ground-fault monitoring. The output voltage is fixed at 30.5Vdc, with an efficiency of 0.9 at 230Vac input, a hold time of 30ms at 100Vac input, power dissipation/losses at 13.5 W under full output load at 230Vac input, and a ripple of 50mVpp across 20Hz to 20MHz at 50Ω.

About the manufacturer: Puls is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Puls specializes in AC/DC power supplies, dedicating its efforts solely to the development of premium DIN rail power supplies. As a leading authority in power conversion, Puls distinguishes itself through focused engineering and an unwavering commitment to quality, positioning itself as the top leader in the field. This dedication ensures the highest standard in the industry, reflecting in every product they offer.

Check out the SLA4.100 Puls price in the box on the right side or send a quick quote.

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents SLA4.100 Specs

SLA4.100 Datasheet

1-year warranty
