PIM36.241 Puls AC/DC Power Supplies

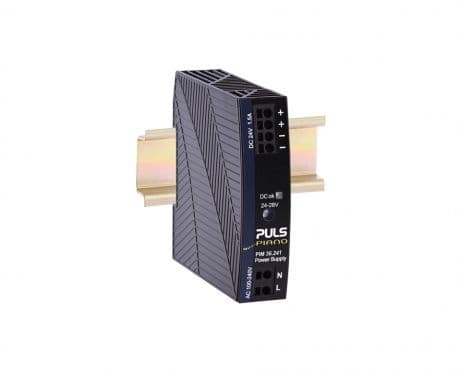

PULS PIM36.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion capabilities. It operates within an ambient air temperature range of -10 to +60°C with linear derating up to +70°C. The unit is equipped with a NEC Class 2 DC-OK relay contact output and provides a rated current of 5A at 12Vdc within the -10 to +60°C range and 3.8A at 12Vdc at +70°C. Connection is facilitated through push-in spring connections. The supply voltage (AC) spans from 90Vac to 264Vac for nominal inputs like 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at a frequency of 47-63Hz, with an input overvoltage tolerance of 264-300Vac for up to 500ms, a turn-ON voltage of 75Vac, and a shutdown voltage of 54Vac. This part of the PIM-series measures W36mm x H90mm x D91mm, has an IP20 degree of protection, and is housed in polycarbonate (PC). It supports a single-phase (1AC) network, has a net width of 36mm, and offers a rated power of 60W at -10 to +60°C, which derates linearly to 45.6W at +70°C. The output voltage (DC) is adjustable between 12Vdc and 15Vdc, with protection functions including output overvoltage protection and overload/short-circuit protection. Efficiency rates are 0.907 at 230Vac input and 0.902 at 120Vac input. Current consumption is 0.6A at 230Vac input (full output), 1A at 120Vac input (full output), and 1.15A at 100Vac input (full output), with a peak inrush of 44A at 230Vac input and 18A at 120Vac input. The unit has a start-up delay of 50-60ms, a rise time of 18ms max at nominal input with full constant current load and 0mF load capacitance, and a hold time of 107ms at 230Vac input. Power dissipation/losses are 6.2W at 230Vac input and 6.5W at 120Vac input under full output load. Electrical durability is noted at various conditions, with the highest being 724000 hours at 25°C, 2.5A, 1AC 230Vac input. Ripple is specified at 100mVpp (20Hz...20MHz; 50Ω), and the output stage capacitance is 2200µF.

About the manufacturer: Puls is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Puls specializes in AC/DC power supplies, dedicating its efforts solely to the development of premium DIN rail power supplies. As a leading authority in power conversion, Puls distinguishes itself through focused engineering and an unwavering commitment to quality, positioning itself as the top leader in the field. This dedication ensures the highest standard in the industry, reflecting in every product they offer.
