ML100.200 Puls AC/DC Power Supplies

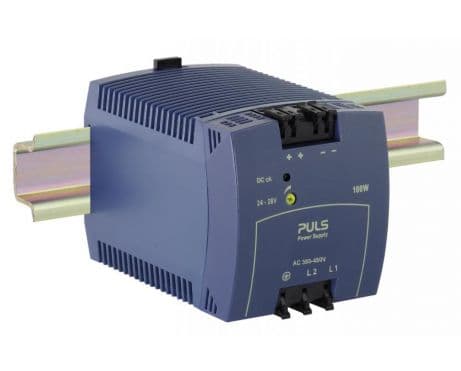

Puls ML100.200 PULS ML100.200 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 4.2A at 24Vdc, with a derating of 2.5W from +60°C to +70°C. The unit features spring-clamp connections for secure installation and supports a wide supply voltage range of 323Vac to 576Vac, accommodating various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac across a frequency range of 47-63Hz, suitable for 2-phase input networks. With dimensions of W72.5mm x H75mm x D103mm and constructed from a PC/ABS blend housing, the ML100.200 has a net width of 72.5 mm. It delivers a rated power of 100W and an adjustable output voltage range of 24Vdc to 28Vdc. The unit is equipped with an NTC for input inrush current limitation, achieving efficiencies of 0.895 and 0.89 at 400Vac and 480Vac inputs, respectively. It has a maximum inrush current consumption of 36A at 2x400Vac input and 45A peak at 2x480Vac input, with power dissipation/losses of 11.7W and a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.
Puls

Part#:ML100.200

Manufacturer:Puls

Product Lifecycle:Active

Get a quick Quote!

PULS ML100.200 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 4.2A at 24Vdc, with a derating of 2.5W from +60°C to +70°C. The unit features spring-clamp connections for secure installation and supports a wide supply voltage range of 323Vac to 576Vac, accommodating various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac across a frequency range of 47-63Hz, suitable for 2-phase input networks. With dimensions of W72.5mm x H75mm x D103mm and constructed from a PC/ABS blend housing, the ML100.200 has a net width of 72.5 mm. It delivers a rated power of 100W and an adjustable output voltage range of 24Vdc to 28Vdc. The unit is equipped with an NTC for input inrush current limitation, achieving efficiencies of 0.895 and 0.89 at 400Vac and 480Vac inputs, respectively. It has a maximum inrush current consumption of 36A at 2x400Vac input and 45A peak at 2x480Vac input, with power dissipation/losses of 11.7W and a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

About the manufacturer: Puls is one of the manufacturers that offers AC/DC Power Supplies that you can order at marketplace.quotebeam.com. Puls specializes in AC/DC power supplies, dedicating its efforts solely to the development of premium DIN rail power supplies. As a leading authority in power conversion, Puls distinguishes itself through focused engineering and an unwavering commitment to quality, positioning itself as the top leader in the field. This dedication ensures the highest standard in the industry, reflecting in every product they offer.

Check out the ML100.200 Puls price in the box on the right side or send a quick quote.

Product Details

  • Current Output4.2 A
  • Power100 W
  • Phase3 Phase
  • Current Input0.46 A
  • Efficiency89.5 %
  • Width73 mm
  • Height75 mm
  • Depth103 mm
  • UL File No.E198865

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging



Related documents ML100.200 Specs
