LR6-2M2LJBW-RY Patlite Signal Towers

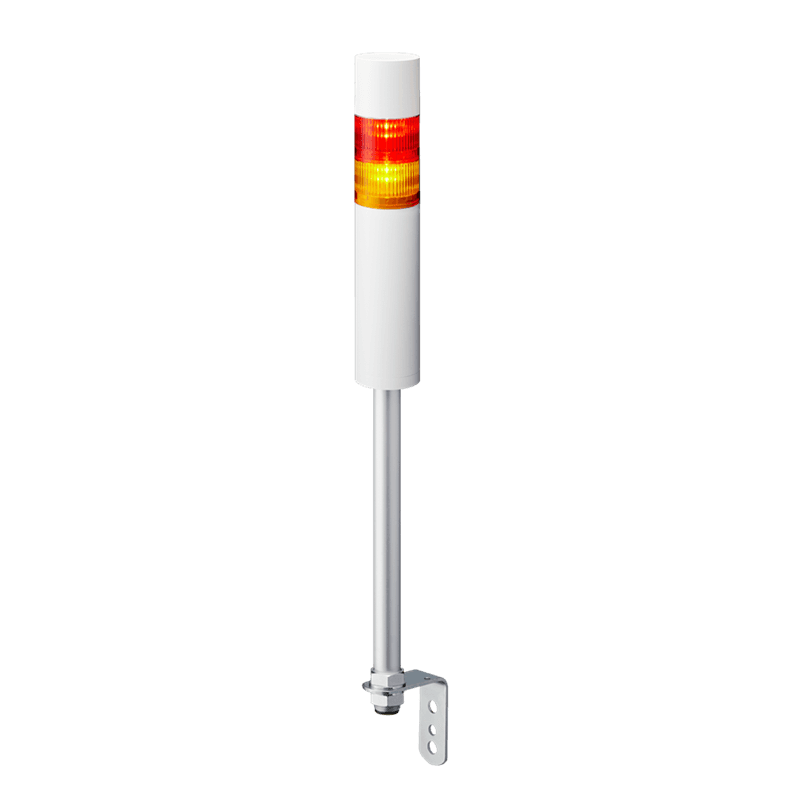

Patlite LR6-2M2LJBW-RY 60mm 2-tier Signal Tower, 100-240V AC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Off-white
Patlite

Part#:LR6-2M2LJBW-RY

Manufacturer:Patlite

Product Lifecycle:Active

Get a quick Quote!

60mm 2-tier Signal Tower, 100-240V AC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Off-white

Check out the LR6-2M2LJBW-RY Patlite price in the box on the right side or send a quick quote.

Product Details

  • Number of Tiers2
  • Voltage100-240 VAC
  • Size60 mm
  • ColorRed, Amber
  • BuzzerYES
  • Light SourceLED
  • TypeLED Signal Tower
  • Weight720 g
  • Country Of OriginJapan
  • HTS Code8531809051
  • Mounting Location
    Indoor Use
  • Withstand Voltage
    M2: 1500V AC applied for 1 minute between live part and non-current carrying metallic part without breaking insulation
  • Environmental Conditions
    Upright Position
  • Mounting Direction
    Upright Position
  • Insulation Resistance
    More than 1MΩ at 500V DC between live part and non-current carrying metallic part
  • Protection Rating
    IP54
  • Sound Level
    88dB; Buzzer Sound No.4 (Sweep) from all directions at a 1m distance
  • Storage Temperature Range
    -30℃ - +60℃
  • Transistor Output
    NPN / PNP (AC100 - 240V is NPN only)
  • Operating Humidity Range
    90% RH or less, no condensation
  • Operating Ambient Temperature
    -20℃ - +50℃
  • Buzzer Sound
    4 patterns* No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound
  • Sound Reduction*
    ab. -10dB reduction
  • Flash Rate
    60 ±2 Flashes / min
  • Storage Humidity Range
    90% RH or less, no condensation
  • Conformity Standards
    - UL 508, CSA-C22.2 No.14 ; - FCC Part 15 Subpart B Class A; - RoHS Directive (EN 50581); - EMC Directive (EN 61000-6-4, EN 61000-6-2); - Low Voltage Directive (IEN/EN60947-5-1,EN62471)

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

LR6-2M2LJBW-RY Description

60mm 2-tier Signal Tower, 100-240V AC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Off-white

Related documents LR6-2M2LJBW-RY Specs

LR6-2M2LJBW-RY LR_Specifications_BuzzerUnit(En).pdf.pdf
LR6-2M2LJBW-RY LR_Specifications_100-240V_ACType(En)(1).pdf.pdf
LR6-2M2LJBW-RY LR_Specifications_LEDUnit(En).pdf.pdf
