PI2714 ifm Electronic Electronic Components
Part#:PI2714
Manufacturer:ifm Electronic
Product Lifecycle:Active
Get a quick Quote!

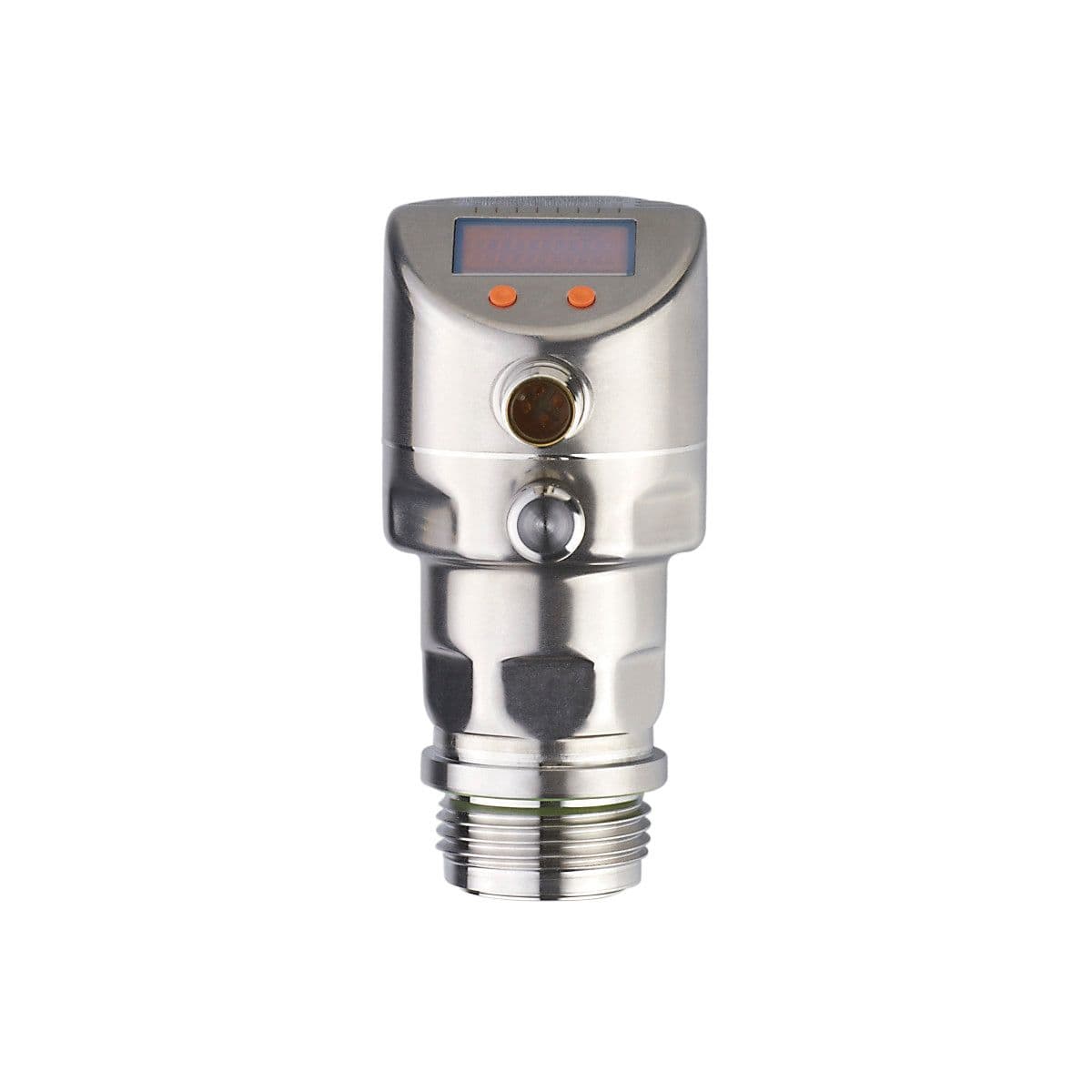

Flush pressure sensor with display, Output signal: switching signal; analog signal; IO-Link; (configurable), Measuring range: -1...16 bar -14.6...232 psi -0.1...1.6 MPa, Process connection: threaded connection G 1 external thread Aseptoflex Vario, System:
About the manufacturer: ifm Electronic is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Through years of working closely with our customers, we have established ourselves as experts in sensor technology, dedicated to delivering outstanding service. Currently, our company operates in more than 85 countries and employs a team of over 7,000 individuals. Despite our expansion, our dedication to customer satisfaction remains unwavering.
Check out the PI2714 ifm Electronic price in the box on the right side or send a quick quote.
Product Details
- Vacuum resistance [mbar] -1000
- Output signal switching signal; analog signal; IO-Link; (configurable)
- Output function normally open / closed; (configurable)
- Current consumption [mA] < 45
- Operating voltage [V] 18...32 DC
- Number of digital outputs 2
- Measuring range -1...16 bar -14.6...232 psi -0.1...1.6 MPa
- Medium temperature [°C] -25...125; (145 max. 1h)
- Integrated watchdog yes
- Total number of outputs 2
- Short-circuit protection yes
- Power-on delay time [s] 0.5
- Number of analog outputs 1
- Max. load [Ω] (Ub - 10 V) / 20 mA
- System gold-plated contacts
- Type of pressure relative pressure; vacuum
- Analog current output [mA] 4...20, invertible; (scalable)
- Media viscous media and liquids with suspended particles; liquids and gases
- Pressure rating 75 bar 1085 psi 7.5 Mpa
- Reverse polarity protection yes
- Switching frequency DC [Hz] 125
- Type of short-circuit protection yes (non-latching)
- Application flush mountable for the food and beverage industry
- MAWP (for applications according to CRN) [bar] 60
- Overload protection yes
- Protection class III
- No dead space yes
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
- Electrical design PNP/NPN
- Min. bursting pressure 250 bar 3625 psi 25 MPa
- Process connection threaded connection G 1 external thread Aseptoflex Vario
- Max. voltage drop switching output DC [V] 2
- Permanent current rating of switching output DC [mA] 250
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
1-year warranty
