YKA282N Hubbell Electronic Components
Part#:YKA282N
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

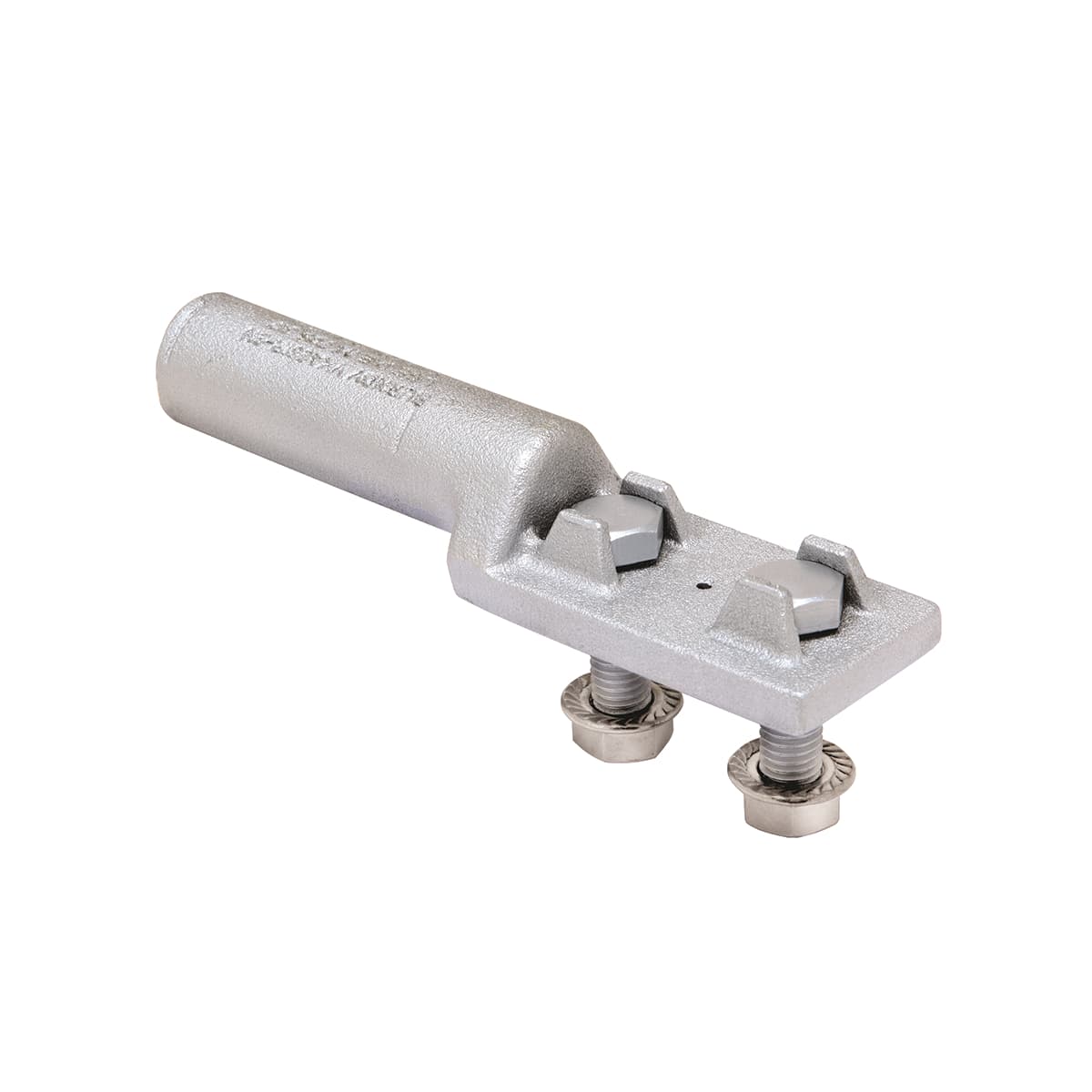

HYLUG™, Copper Disconnectable Compression Terminal, With Fixed H/W, 2 Holes, 4/0 Str Cu, 1/2" Stud.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YKA282N Hubbell price in the box on the right side or send a quick quote.
Product Details
- Physical Attribute - Number of Crimps Required 1
- Trade Name HYLUG™
- Die Index 168;208
- Plating Type Tin
- Dimension - L Length Overall mm 136 mm
- Dimension - Outside Diameter inch 0.89 in
- Certification - cULus No
- Dimension - B Length fraction 1-31/50 in
- Connector Type Terminal
- Prefilled Oxide Inhibitor N
- Dimension - Stud Size inch 1/2 in
- Certification - CSA Approved No
- Dimension - N inch 0.63 in
- Dimension - Pad Width inch 1.22 in
- Dimension - B Length inch 1.62 in
- Conductor - Copper Str Size Range 4/0 AWG
- Standards - RoHS Compliance Status EX
- Physical Attribute - Number of Holes 2
- UPC 781810014899
- Plated Y
- Dimension - Strip Length inch 1- 11/16 in
- Conductor - Copper Str Size 4/0 AWG
- Certification - ETL No
- Certification - UL Recognized No
- Dimension - Length Overall inch 5.35 in
- Minimum Pack Quantity 1
- Dimension - E Spacing between Holes fraction 1-3/4 in
- Physical Attribute - Tongue Angle Straight
- UL Listed No
