540863 Festo Grippers
Part#:540863
Manufacturer:Festo
Alt. Part#:HGDT-35-A-G1
Product Lifecycle:Active
Get a quick Quote!

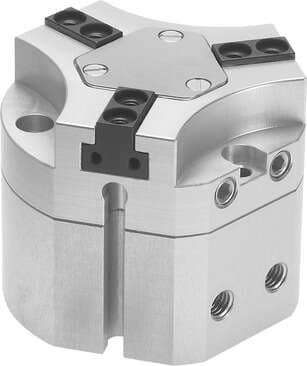

three-point gripper HGDT-35-A-G1 Sturdy, can be used as internal and external gripper, for position sensing. With gripping force retention when opening ...-G1. Size: 35, Stroke per gripper jaw: 4 mm, Max. replacement accuracy: <: 0,2 mm, Max. angular gri
About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 540863 Festo price in the box on the right side or send a quick quote.
Product Details
- Max. interchangeability ≤ 0.2 mm
- Type code HGDT
- Operating pressure 4 bar ... 8 bar
- Min. closing time at 6 bar 56 ms
- Mass moment of inertia 1.37 kgcm²
- Sealing air pneumatic connection M5
- Size 35
- Rotational symmetry ≤ 0.2 mm
- Max. gripper jaw backlash Sz ≤ 0.05 mm
- Mode of operation Double-acting
- Symbol 00995947
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Maximum torque on gripper jaw, My static 10 Nm
- Relubrication interval for guidance elements 5 MioCyc
- Pneumatic connection M5
- Housing material Wrought aluminum alloy COMPCOTE-coated
- Number of gripper jaws 3
- Max. gripper jaw angular play ax, ay ≤ 0.1 deg
- Mounting position Any
- Gripper function 3-point
- Min. opening time at 6 bar 32 ms
- Maximum torque on gripper jaw, Mx static 15 Nm
- Product weight 337 g
- Type of mounting Optionally: With internal thread and dowel pin
- Gripping force backup On opening
- Design Inclined plane Positively driven motion sequence
- Max. operating frequency of pneumatic gripper ≤ 4 Hz
- Ambient temperature 5 °C ... 60 °C
- Maximum force on gripper jaw Fz, static 400 N
- Max. mass per external gripper finger 30 g
- Note on materials Free of copper and PTFE
- Gripper jaw material Steel Hardened
- Stroke per gripper jaw 4 mm
- Pneumatic gripper repetition accuracy ≤ 0.03 mm
- Position sensing For proximity sensor
- Operating pressure for sealing air 0 bar ... 0.5 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Maximum torque on gripper jaw, Mz static 10 Nm
- Cover cap material High-alloy stainless steel
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 540863 Specs
1-year warranty
