192373 Festo Compressed Air Preparation Units
Part#:192373
Manufacturer:Festo
Alt. Part#:LFR-1/2-D-7-O-DI-MAXI
Product Lifecycle:Active
Get a quick Quote!

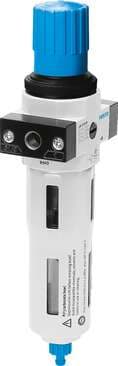

filter regulator LFR-1/2-D-7-O-DI-MAXI Output pressure max. 7 bar, with metal bowl guard, without pressure gauge. With manual condensate drain. With directly-controlled pressure regulator. Size: Maxi, Series: D, Actuator lock: Rotary knob with lock, Assem
About the manufacturer: Festo is one of the manufacturers that offers Compressed Air Preparation Units that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 192373 Festo price in the box on the right side or send a quick quote.
Product Details
- Symbol 00991590
- Size Maxi
- Mounting position Vertical +/- 5°
- Bowl guard Metal bowl guard
- Pressure regulation range 0.5 bar ... 7 bar
- Standard nominal flow rate 7600 l/min
- Storage temperature -10 °C ... 60 °C
- Pneumatic connection 1 G1/2
- Housing material Die-cast zinc
- Type code LFR
- Grade of filtration 40 µm
- Max. pressure hysteresis 0.4 bar
- Ambient temperature -10 °C ... 60 °C
- Temperature of medium -10 °C ... 60 °C
- Actuator lock Rotary knob with detent
- Max. condensate volume 43 ml
- Operating pressure 1 bar ... 16 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
- Product weight 1600 g
- Note on materials Free of copper and PTFE RoHS-compliant
- Series D
- Design Filter regulator without pressure gauge
- Pressure gauge G1/4 prepared
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Type of mounting Line installation
- Pneumatic connection 2 G1/2
- Material of bowl PC
- Maritime classification See certificate
- Condensate drain Manually rotating
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 192373 Specs
