184513 Festo Directional Control Valves
Part#:184513
Manufacturer:Festo
Alt. Part#:MEBH-5/3B-D-3-ZSR-C
Product Lifecycle:Active
Get a quick Quote!

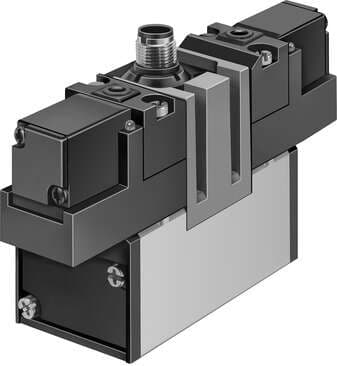

solenoid valve MEBH-5/3B-D-3-ZSR-C With central plug connector Valve function: 5/3 pressurised, Type of actuation: electrical, Width: 65 mm, Standard nominal flow rate: 4000 l/min, Operating pressure: 3 - 10 bar
About the manufacturer: Festo is one of the manufacturers that offers Directional Control Valves that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 184513 Festo price in the box on the right side or send a quick quote.
Product Details
- Degree of protection IP65
- Type code MEBH
- On switching time 38 ms
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting With through-hole
- Pneumatic connection 5 Sub-base, size 3 as per ISO 5599-1
- Standard nominal flow rate 4000 l/min
- Operating pressure 3 bar ... 10 bar
- Width dimension 71 mm
- Conforms to standard ISO 5599-1
- ISO code 358
- Symbol 00991083
- Temperature of medium -10 °C ... 50 °C
- Pneumatic connection 1 Sub-base, size 3 as per ISO 5599-1
- Pneumatic connection 4 Sub-base, size 3 as per ISO 5599-1
- Valve function 5/3, pressurized
- Design Piston gate valve
- Sealing principle Soft
- Type of control Pilot-controlled
- Switching time off 130 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pilot exhaust air port 82 Not ducted
- Pneumatic connection 3 Sub-base, size 3 as per ISO 5599-1
- Seals material NBR
- Actuation type Electrical
- Pneumatic working port Sub-base, size 3 as per ISO 5599-1 G1/2
- Reset method Mechanical spring
- Exhaust air function With flow control option
- Pilot air supply port Internal
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature -10 °C ... 50 °C
- Product weight 1120 g
- Pilot exhaust air port 84 Not ducted
- Width 65 mm
- Operating voltage 24V DC
- Nominal width 14.5 mm
- Mounting position Any
- Manual override Non-detenting
- Flow direction Non-reversible
- Coil characteristics 24 V DC: 2.5 W
- Electrical connection M12x1 Round design
- Pneumatic connection 2 Sub-base, size 3 as per ISO 5599-1
- Housing material Die-cast aluminum
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 184513 Specs
