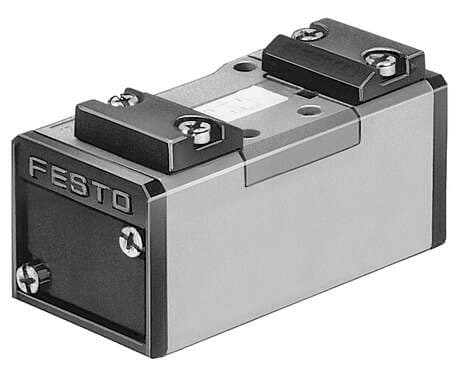

151008 Festo Directional Control Valves
Part#:151008
Manufacturer:Festo
Alt. Part#:JD-5/2-D-1-C
Product Lifecycle:Active
Get a quick Quote!
pneumatic valve JD-5/2-D-1-C 5/2-way valve, bistable, dominant, pneumatically operated. Valve function: 5/2 bistable-dominant, Type of actuation: pneumatic, Width: 42 mm, Standard nominal flow rate: 1200 l/min, Operating pressure: -0,9 - 16 bar
About the manufacturer: Festo is one of the manufacturers that offers Directional Control Valves that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 151008 Festo price in the box on the right side or send a quick quote.
Product Details
- Valve function 5/2, bistable, dominant
- Width 42 mm
- Design Piston gate valve
- Certification UL - Recognized (OL)
- Width dimension 43 mm
- Manual override None
- ISO code 103
- Switching time changeover (dominant) 4 ms
- Temperature of medium -10 °C ... 60 °C
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 3 Sub-base, size 1 as per ISO 5599-1
- Pneumatic connection 5 Sub-base, size 1 as per ISO 5599-1
- Type code JD
- Actuation type Pneumatic
- Pneumatic working port Sub-base, size 1 as per ISO 5599-1 G1/4
- Nominal width 8 mm
- Conforms to standard ISO 5599-1
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pneumatic connection 4 Sub-base, size 1 as per ISO 5599-1
- Housing material Die-cast aluminum
- Sealing principle Soft
- Type of control Direct
- Pilot pressure 2 bar ... 16 bar
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Type of mounting On sub-base With through-hole
- Pneumatic connection 1 Sub-base, size 1 as per ISO 5599-1
- Note on materials RoHS-compliant
- Lap Overlap
- Standard nominal flow rate 1200 l/min
- Operating pressure -0.9 bar ... 16 bar
- Exhaust air function With flow control option
- Mounting position Any
- Symbol 00991042
- Changeover time 6 ms
- Noise level 85 dB(A)
- Pilot air port 12 Sub-base, size 1 as per ISO 5599-1
- Pneumatic connection 2 Sub-base, size 1 as per ISO 5599-1
- Flow direction Reversible
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 290 g
- Pilot air port 14 Sub-base, size 1 as per ISO 5599-1
- Seals material HNBR NBR
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 151008 Specs
