WLS27XWR-145DSQ Banner Signal Towers
Part#:WLS27XWR-145DSQ
Manufacturer:Banner
Alt. Part#:802206
Product Lifecycle:Active
Get a quick Quote!

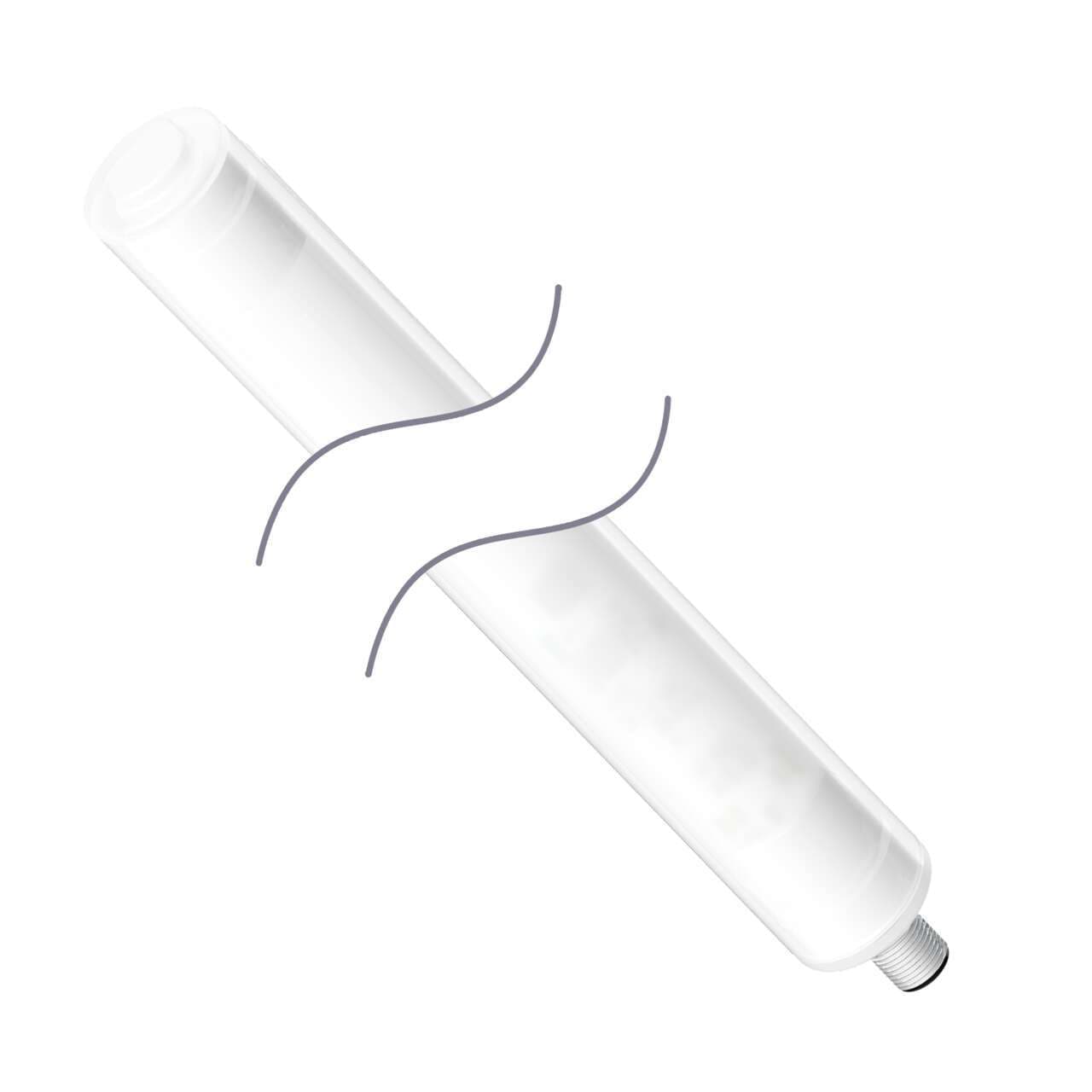

WLS27 Dual Color Light Strip; Length: 145 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White (100%) Red (100%); 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XWR-145DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight272.1552 g
- Country Of OriginMX
- Housing Style Linear Strip
- Color Option 1 White
- Number of Input Pins/Conductors 4
- Power Source DC
- Color Technology Standard LED
- Max Current Color (mA) 400
- Primary Window Material Copolyester Diffused
- Pro-Editor Compatible (Discrete) No
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Power DC
- Connection Integral QD
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Feature: Hazardous Area No
- Mounting Thread No Thread
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 210.5
- Modbus RTU No
- Product Size (mm) 27
- Animation Option 2 Solid On
- Min Op. Temperature (°C) -40
- IO Link No
- Number of Colors / Segments 1
- Lumens Color 2 100
- Feature: Washdown Rated Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Illuminated Length (LxWxH mm) 145.0
- Feature: Chemical Resistant Yes
- Primary Housing Material FDA Copolyester
- Animation Option 1 Solid On
- Color Option 2 Red
- Max Op. Temperature (°C) 70
- Feature: Quick Disconnect Yes
- Illumination Yes
- Lumens Color 1 238
- Dimming Option High-Low-Off
- Environmental Rating IP66; IP67; IP69
- Storage Temp (°C) -40 to 70
- Wireless No
- Multi-Color Device Single Color On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XWR-145DSQ Description
Banner Engineering WLS27XWR-145DSQ is a dual color series industrial sealed LED task light designed for a variety of applications. It features a diffused window with a 2-color white/red (W/R) color pattern LED illumination, suitable for tasks requiring clear visibility. This model operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has dimensions of L145mm x D27mm. The light is constructed from FDA-grade copolyester for both the diffused window and the outer housing, ensuring durability and compliance with health standards. It has a cylindrical linear strip shape with a diameter of 27mm and is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The WLS27XWR-145DSQ offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it resistant to dust, water, and high-pressure washdowns. It can operate in ambient air temperatures ranging from -40°C to +70°C. Additionally, it features 2 digital inputs (12-30Vdc) for color control and has a current consumption of 400mA.
