WLS27XWORXX3-0285DS24Q Banner Signal Towers

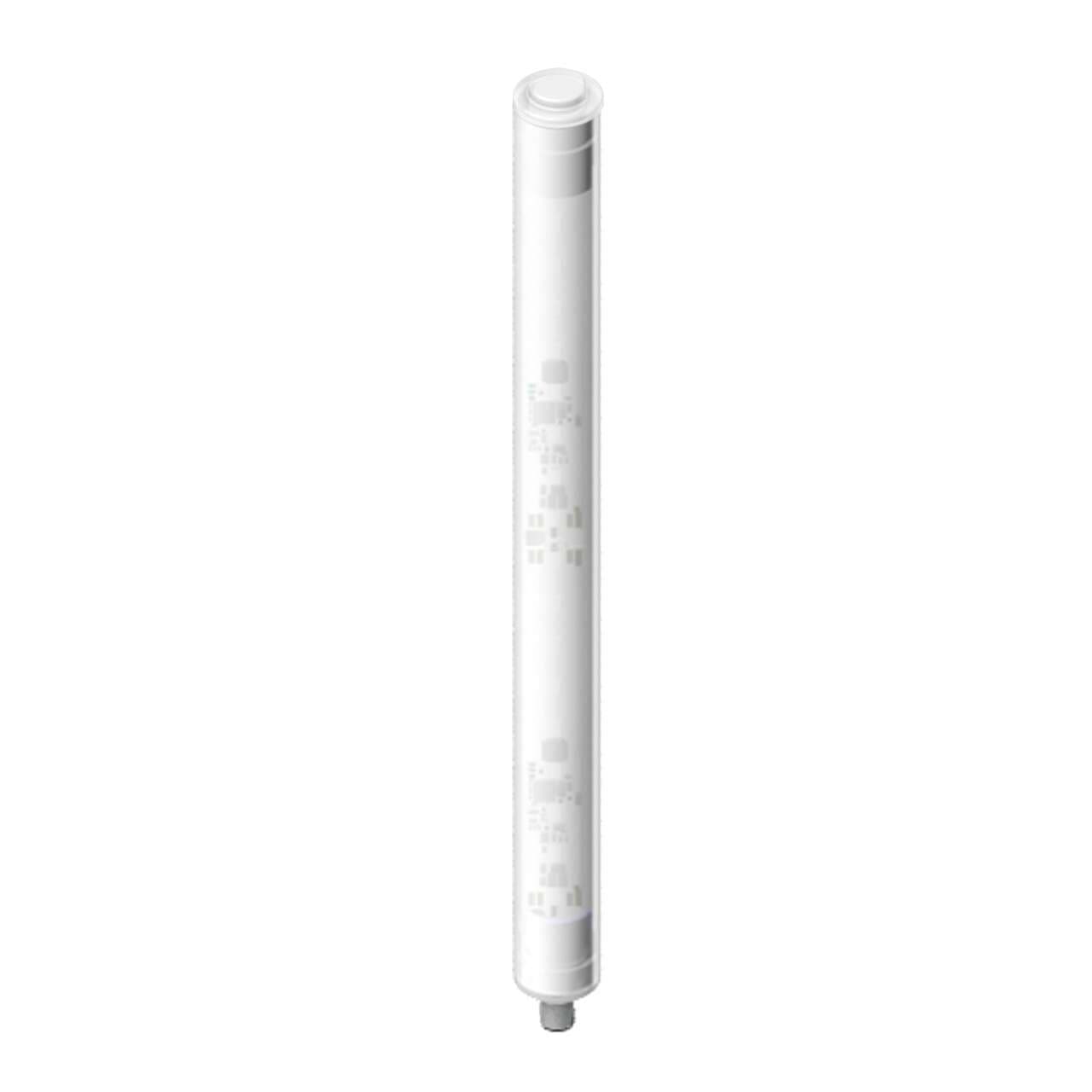

Banner WLS27XWORXX3-0285DS24Q WLS27 Multicolor Light Strip; Length: 285 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White, Orange, Red; Non-Cascadable; 4-pin M12 Integral QD
Banner

Part#:WLS27XWORXX3-0285DS24Q

Manufacturer:Banner

Alt. Part#:807199

Product Lifecycle:Active

Get a quick Quote!

WLS27 Multicolor Light Strip; Length: 285 mm; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White, Orange, Red; Non-Cascadable; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS27XWORXX3-0285DS24Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight272.1552 g
  • Country Of OriginMX
  • Power Source
    DC
  • Animation Option 1
    Solid On
  • Color Option 2
    Orange
  • Mounting Thread
    No Thread
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 3
    185
  • Environmental Rating
    IP66; IP67; IP69
  • Feature: Chemical Resistant
    Yes
  • Color Technology
    Standard LED
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Animation Option 3
    Solid On
  • Physical Dimensions (LxWxH or DxH mm)
    27.0 x 351.5
  • Feature: Quick Disconnect
    Yes
  • Cable Length (m)
    0.15
  • Color Option 1
    White
  • Animation Option 2
    Solid On
  • Primary Window Material
    Copolyester Diffused
  • Modbus RTU
    No
  • Indication
    Yes
  • Connection
    Integral QD
  • Color 2 - Wavelength/Color Temp/Coordinates
    620 nm
  • Illuminated Length (LxWxH mm)
    285.0
  • Feature: Audible
    No
  • Primary Housing Material
    FDA Copolyester
  • Product Size (mm)
    27
  • Color Option 3
    Red
  • Storage Temp (°C)
    -40 to 70
  • Wireless
    No
  • Illumination
    Yes
  • Number of Colors / Segments
    3
  • Max Current Color (mA)
    400
  • Max Op. Temperature (°C)
    50
  • Multi-Color Device
    Single Color On
  • Housing Style
    Linear Strip
  • Lumens Color 1
    650
  • Color 3 - Wavelength/Color Temp/Coordinates
    625 nm
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Power
    DC
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Number of Input Pins/Conductors
    4
  • Feature: Washdown Rated
    Yes
  • Supply Voltage
    24 V dc
  • Feature: Hazardous Area
    No
  • Pro-Editor Compatible (Discrete)
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLS27XWORXX3-0285DS24Q Description

WLS27 Multicolor Light Strip; Length: 285 mm;, Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K, Colors: White, Orange, Red; Non-Cascadable, Euro 4-pin Integral Connector

Related documents WLS27XWORXX3-0285DS24Q Specs

WLS27XWORXX3-0285DS24Q 201895.pdf
