WLS27XWGRYB5-0285HS24Q Banner Signal Towers
Part#:WLS27XWGRYB5-0285HS24Q
Manufacturer:Banner
Alt. Part#:805141
Product Lifecycle:Active
Get a quick Quote!

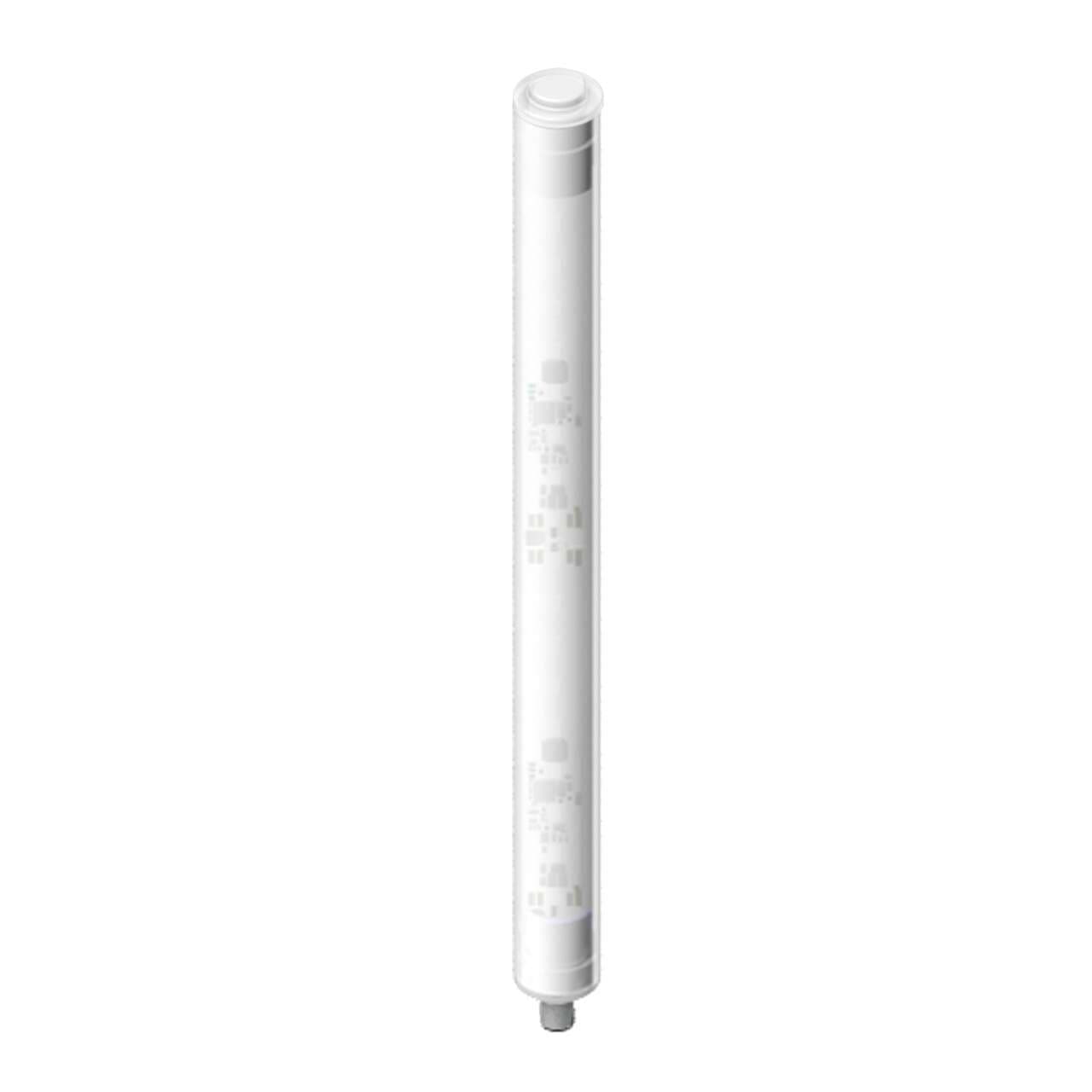

WLS27 Multicolor Light Strip; Length: 285 mm; Heavy Diffuse Window; Voltage: 24 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: White, Green, Red, Yellow, Blue; Non-Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XWGRYB5-0285HS24Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight255.372296 g
- Country Of OriginMX
- Number of Colors / Segments 5
- Lumens Color 1 520
- Color 4 - Wavelength/Color Temp/Coordinates 580 nm
- Max Op. Temperature (°C) 50
- IO Link No
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Quick Disconnect Type M12 (Euro)
- Lumens Color 3 148
- Max Current Color (mA) 400
- Primary Window Material Copolyester Heavy Diffused
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Animation Option 5 Solid On
- Primary Housing Material FDA Copolyester
- Connection Integral QD
- Color Option 4 Yellow
- Illuminated Length (LxWxH mm) 285.0
- Feature: Hazardous Area No
- Housing Style Linear Strip
- Color Option 2 Green
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Color 5 - Wavelength/Color Temp/Coordinates 470 nm
- Storage Temp (°C) -40 to 70
- Wireless No
- Illumination Yes
- Color Option 1 White
- Animation Option 3 Solid On
- Lumens Color 5 100
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Power DC
- Product Size (mm) 27
- Color Option 3 Red
- Lumens Color 4 456
- Supply Voltage 24 V dc
- Feature: Chemical Resistant Yes
- Feature: Washdown Rated Yes
- Power Source DC
- Animation Option 1 Solid On
- Lumens Color 2 320
- Color Option 5 Blue
- Environmental Rating IP66; IP67; IP69
- Pro-Editor Compatible (Discrete) No
- Indication Yes
- Color Technology Standard LED
- Animation Option 2 Solid On
- Animation Option 4 Solid On
- Number of Input Pins/Conductors 4
- Multi-Color Device Single Color On
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 351.5
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XWGRYB5-0285HS24Q Description
Banner Engineering WLS27XWGRYB5-0285HS24Q is a task light from the EZ-STATUS series designed for harsh environments. This product features a shatterproof LED strip light with binary control and a heavy diffused window, offering 5-color W/G/R/Y/B color pattern LED illumination. It comes in a black housing made from anodized aluminum for the inner housing and FDA-grade copolyester for the outer housing, ensuring durability. The light operates on a 24Vdc supply voltage and measures L285mm x D27mm with a 27mm tube diameter. It is pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The cylindrical linear strip shape of this light is engineered to withstand demanding conditions, boasting a degree of protection rated at IP66, IP67, and IP69K. It can operate in ambient air temperatures ranging from -40°C to +50°C and includes 3 x digital inputs (24Vdc) for color control.
Related documents WLS27XWGRYB5-0285HS24Q Specs
