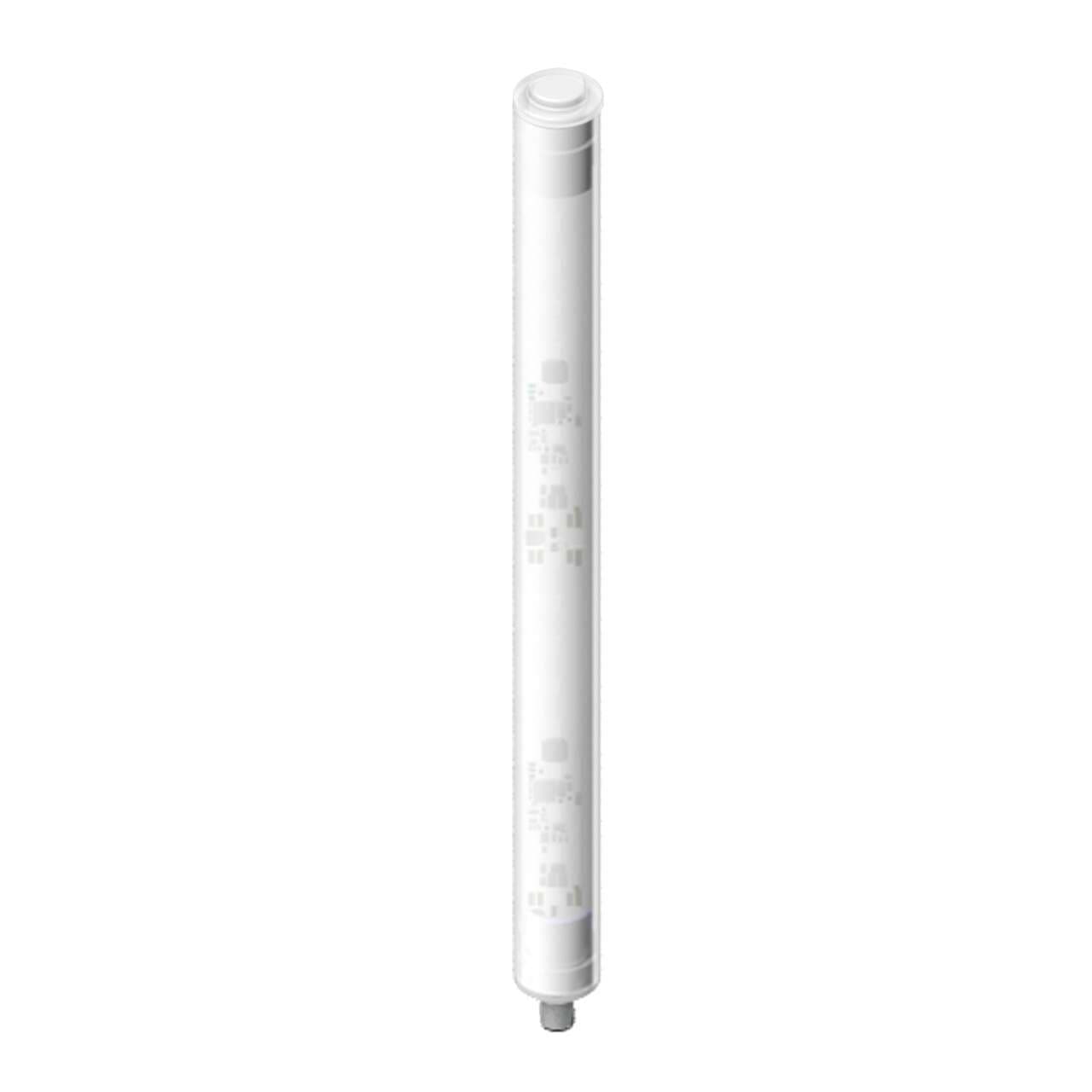

WLS27XGR-285HSQ Banner Signal Towers
Part#:WLS27XGR-285HSQ
Manufacturer:Banner
Alt. Part#:805127
Product Lifecycle:Active
Get a quick Quote!
WLS27 Dual Color Light Strip; Length: 285 mm; Heavy Diffuse; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green (100%) Red (100%); Non-Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XGR-285HSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight263.08336 g
- Country Of OriginMX
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 351.5
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 1 Green
- Number of Input Pins/Conductors 4
- Storage Temp (°C) -40 to 70
- Connection Integral QD
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Feature: Hazardous Area No
- Wireless No
- Number of Colors / Segments 2
- Color Option 2 Red
- Environmental Rating IP66; IP67; IP69
- Feature: Audible No
- Housing Style Linear Strip
- Product Size (mm) 27
- Animation Option 2 Solid On
- Max Op. Temperature (°C) 70
- IO Link No
- Power DC
- Animation Option 1 Solid On
- Supply Voltage 12-30 V dc
- Feature: Washdown Rated Yes
- Primary Housing Material FDA Copolyester
- Color Technology Standard LED
- Lumens Color 2 160
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Power Source DC
- Lumens Color 1 240
- Max Current Color (mA) 800
- Primary Window Material Copolyester Heavy Diffused
- Illumination Yes
- Quick Disconnect Type M12 (Euro)
- Illuminated Length (LxWxH mm) 285.0
- Feature: Chemical Resistant Yes
- Illumination Switch Function I=Color 1; O=OFF; II=Color 2
- Feature: Quick Disconnect Yes
- Multi-Color Device Single Color On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XGR-285HSQ Description
Banner Engineering WLS27XGR-285HSQ is a dual color series industrial sealed LED task light designed for a variety of applications. It features a heavy diffused window with a 2-color G/R color pattern LED illumination, suitable for tasks requiring clear visibility. This model operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has dimensions of L285mm x D27mm. The light is constructed with a copolyester diffused window and an FDA-grade copolyester outer housing, making it durable and suitable for environments requiring stringent cleanliness. With a 27mm tube diameter, it adopts a cylindrical linear strip shape. It is pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The WLS27XGR-285HSQ offers a high degree of protection with ratings of IP66, IP67, and IP69K, ensuring its operation in diverse environments with temperatures ranging from -40°C to +70°C. It includes 2 x digital inputs (12-30Vdc) for color control and has a current consumption of 800mA.
