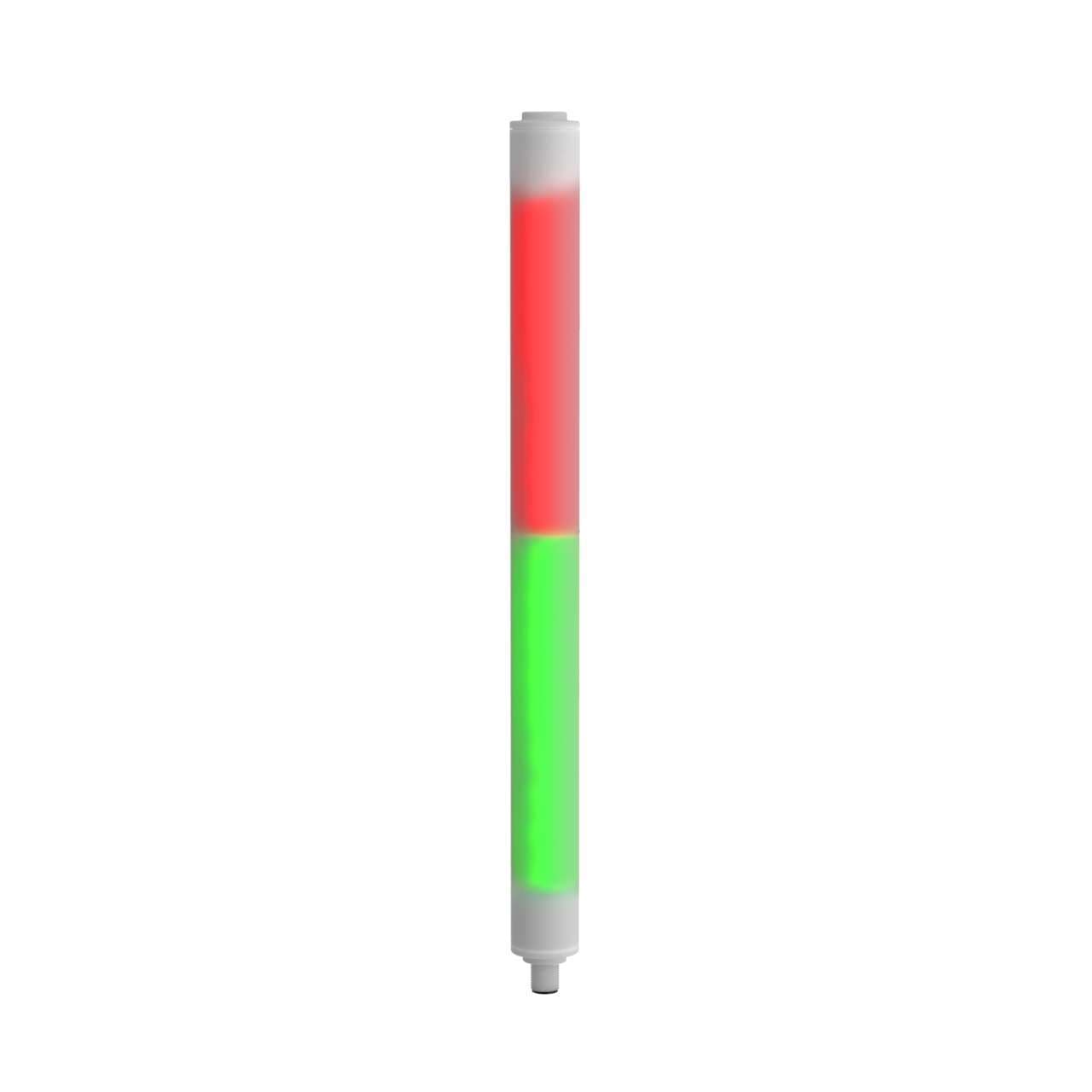

WLS27XG2R2-570DSQ Banner Signal Towers
Part#:WLS27XG2R2-570DSQ
Manufacturer:Banner
Alt. Part#:805119
Product Lifecycle:Active
Get a quick Quote!
WLS27 Dual Color Light Strip; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green (50%) Red (50%); 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27XG2R2-570DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight453.592 g
- Country Of OriginMX
- Number of Colors / Segments 2
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Feature: Audible No
- Wireless No
- Feature: Hazardous Area No
- Modbus RTU No
- Housing Style Linear Strip
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 633.5
- Feature: Quick Disconnect Yes
- Product Size (mm) 27
- Quick Disconnect Type M12 (Euro)
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power DC
- Connection Integral QD
- Color Technology Standard LED
- Primary Housing Material FDA Copolyester
- Color Option 2 Red
- Max Op. Temperature (°C) 70
- Multi-Color Device Single Color On
- Animation Option 2 Solid On
- Supply Voltage 12-30 V dc
- Pro-Editor Compatible (Discrete) No
- Lumens Color 2 200
- Min Op. Temperature (°C) -40
- IO Link No
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Mounting Thread No Thread
- Illumination Yes
- Lumens Color 1 300
- Illuminated Length (LxWxH mm) 570.0
- Storage Temp (°C) -40 to 70
- Power Source DC
- Animation Option 1 Solid On
- Max Current Color (mA) 1600
- Feature: Chemical Resistant Yes
- Environmental Rating IP66; IP67; IP69
- Primary Window Material Copolyester Diffused
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27XG2R2-570DSQ Description
Banner Engineering WLS27XG2R2-570DSQ is a dual color series industrial sealed LED task light designed for a variety of applications. It features a diffused window with a 2-color G2(50%)/R2(50%) color pattern LED illumination, operating on a supply voltage range of 12Vdc-30Vdc with a nominal 24Vdc. The task light measures L570mm x D27mm, with a 27mm tube diameter, and is constructed from FDA-grade copolyester for both the diffused window and the outer housing. It is pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. The cylindrical linear strip shape of this light is engineered to withstand harsh conditions, boasting a degree of protection rated at IP66, IP67, and IP69K. It can operate in ambient air temperatures ranging from -40°C to +70°C. Additionally, it features 2 x digital inputs (12-30Vdc) for color control and has a current consumption of 1.6A.
