WLS27PXRGBW430HSQ Banner Signal Towers

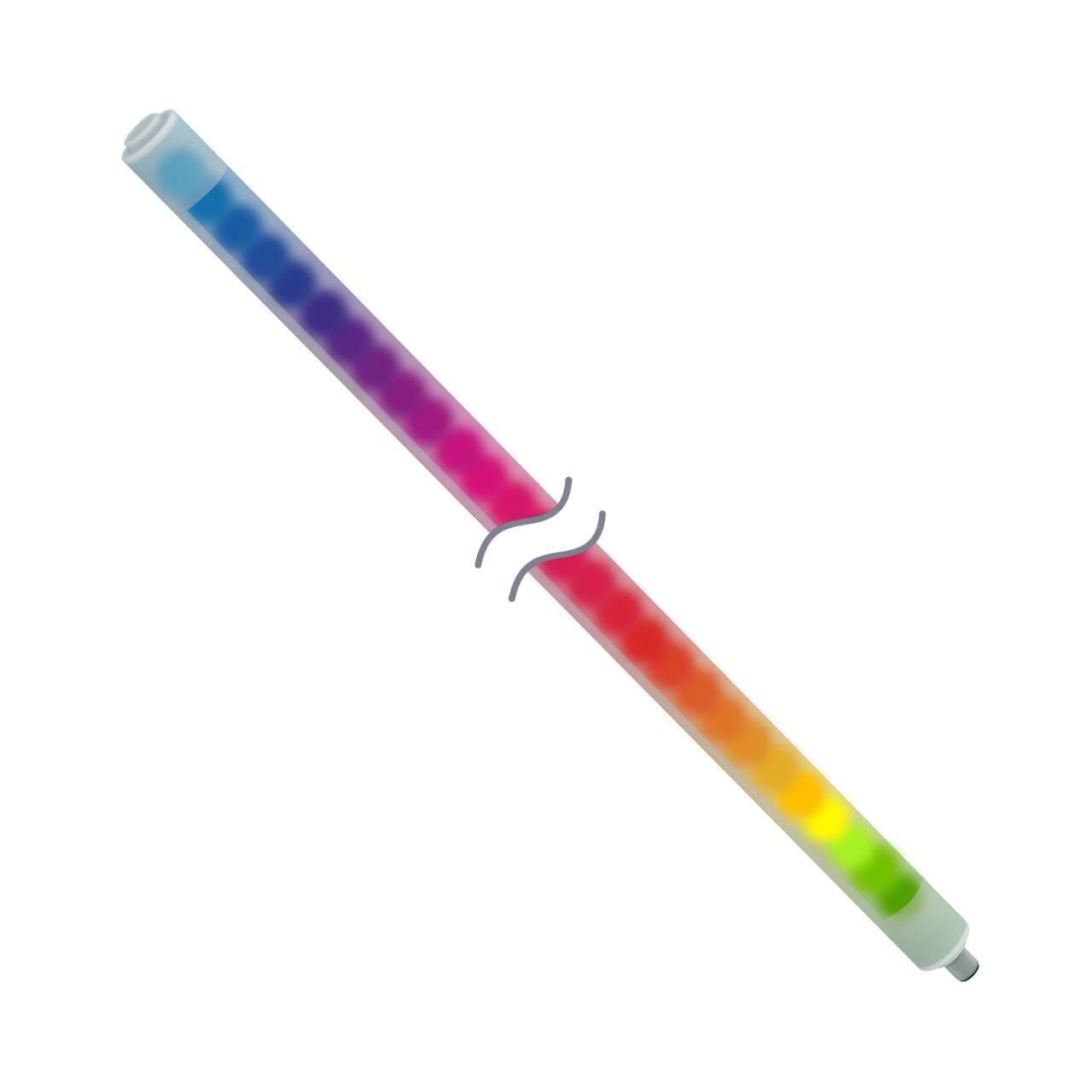

Banner WLS27PXRGBW430HSQ WLS27 Pro Light Strip; Heavy Diffuse Window; Length: 430 mm; Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: RGBW; Non-Cascadable; 4-pin M12 Integral QD
Banner

Part#:WLS27PXRGBW430HSQ

Manufacturer:Banner

Alt. Part#:807464

Product Lifecycle:Active

Get a quick Quote!

WLS27 Pro Light Strip; Heavy Diffuse Window; Length: 430 mm; Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: RGBW; Non-Cascadable; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS27PXRGBW430HSQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight362.8736 g
  • Country Of OriginMX
  • Power Source
    DC
  • Number of Tower Light Segments
    Programmable
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    27.0 x 492.5
  • Mounting Thread
    No Thread
  • Number of Input Pins/Conductors
    4
  • Environmental Rating
    IP66; IP67; IP69
  • Feature: Hazardous Area
    No
  • Color Input Control
    Multiple (One or more wires/color, enables more colors than input wires)
  • Product Size (mm)
    27
  • Supply Voltage
    18-30 V dc
  • IO Link
    No
  • PFM Input
    Yes
  • Number of Colors / Segments
    19
  • Max Current Color (mA)
    860
  • Min Op. Temperature (°C)
    -40
  • Illumination
    Yes
  • Quick Disconnect Type
    M12 (Euro)
  • Max Input Response Time (ms)
    300
  • Multi-Color Device
    Simultaneous Colors On
  • Housing Style
    Linear Strip
  • Color Technology
    RGB Configurable
  • Dimming Option
    Programmable
  • Primary Housing Material
    FDA Copolyester
  • Animation Option 1
    See Configuration File
  • I/O Block Compatible
    Yes
  • Indication
    Yes
  • Connection
    Integral QD
  • Illuminated Length (LxWxH mm)
    430.0
  • Primary Window Material
    Copolyester Heavy Diffused
  • Power
    DC
  • Color Option 1
    RGBW
  • Wire Selectable Function
    Programmable
  • Feature: Audible
    No
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    Yes
  • Feature: Washdown Rated
    Yes
  • Feature: Chemical Resistant
    Yes
  • Indication Intensity
    High Brightness & Daylight Visible
  • Storage Temp (°C)
    -40 to 70
  • Modbus RTU
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

WLS27PXRGBW430HSQ Description

WLS27 Pro Light Strip; Heavy Diffuse Window; Length: 430 mm, Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; IP69K, Color: RGBW; Non-Cascadable, Euro 4-pin Quick Disconnect

Related documents WLS27PXRGBW430HSQ Specs

WLS27PXRGBW430HSQ 206059.pdf
