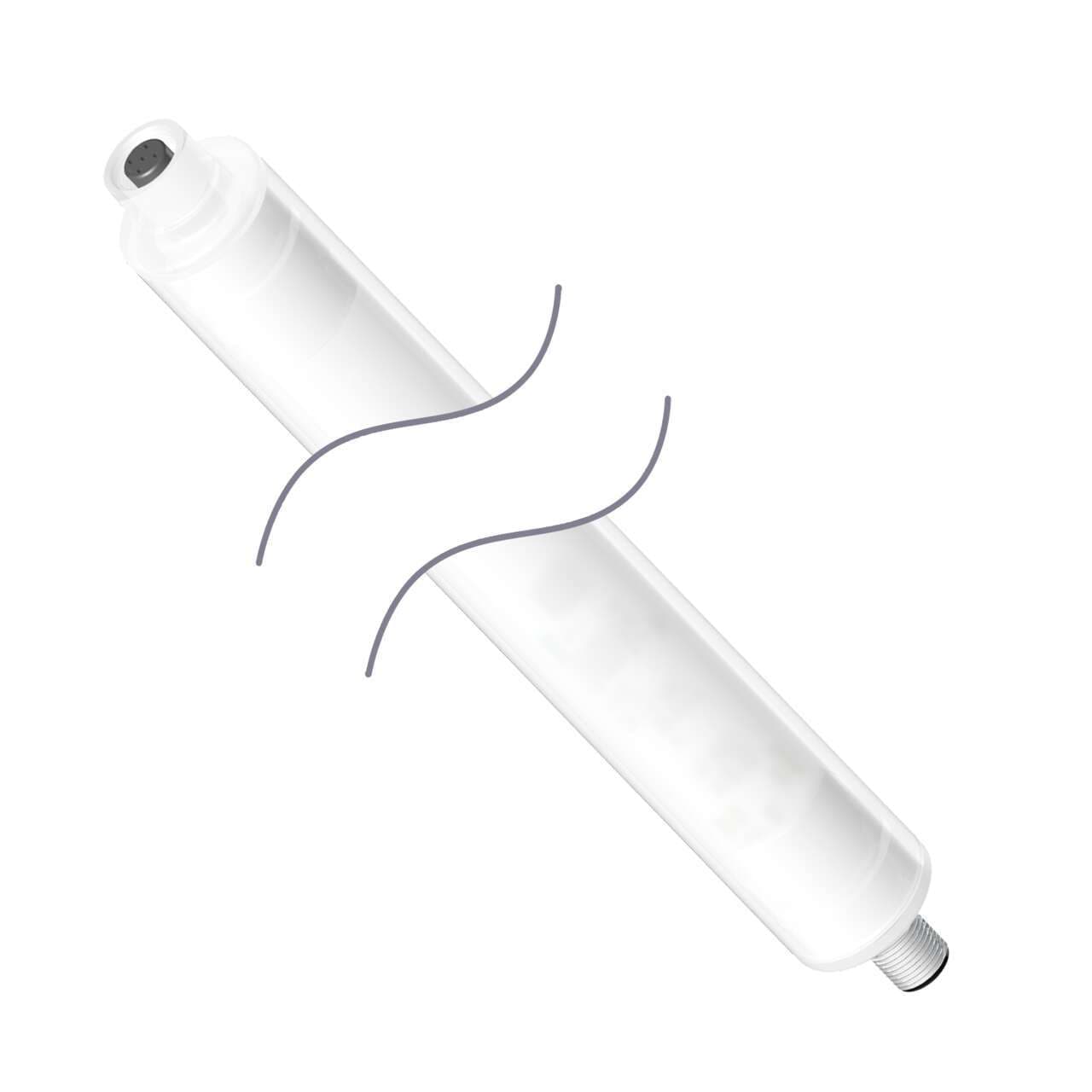

WLS27CR570DSQ Banner Signal Towers
Part#:WLS27CR570DSQ
Manufacturer:Banner
Alt. Part#:95952
Product Lifecycle:Active
Get a quick Quote!
WLS27 Work Light Strip; Diffused Window; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Color: Red; Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CR570DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight453.592 g
- Country Of OriginMX
- Product Size (mm) 27
- Mounting Thread No Thread
- Max Op. Temperature (°C) 70
- Multi-Color Device Single Color On
- Housing Style Linear Strip
- Quick Disconnect Type M12 (Euro)
- Illuminated Length (LxWxH mm) 570.0
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 642.5
- Feature: Audible No
- Illumination Yes
- Color Option 1 Red
- Supply Voltage 12-30 V dc
- Storage Temp (°C) -40 to 70
- Primary Housing Material FDA Copolyester
- Lumens Color 1 220
- Min Op. Temperature (°C) -40
- Number of Colors / Segments 1
- Max Current Color (mA) 1600
- Feature: Washdown Rated Yes
- Power DC
- Number of Input Pins/Conductors 4
- Connection Integral QD
- Primary Window Material Copolyester Diffused
- Cable Length (m) 2
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Environmental Rating IP66; IP67; IP69
- Feature: Chemical Resistant Yes
- Color Technology Standard LED
- Power Source DC
- Dimming Option High-Low-Off
- Feature: Cascade Yes
- IO Link No
- Modbus RTU No
- Feature: Hazardous Area No
- Feature: Quick Disconnect Yes
- Pro-Editor Compatible (Discrete) No
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CR570DSQ Description
Banner Engineering WLS27CR570DSQ is a single color series industrial sealed LED task light designed for a variety of applications requiring illumination. This task light features a diffused window cascadable 1-color Red LED illumination, suitable for environments needing focused or localized lighting. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L570mm x D27mm, with a cylindrical linear strip shape and a 27mm tube diameter, making it compact and versatile for installation in limited spaces. The material used for the diffused window and outer housing is FDA-grade copolyester, ensuring durability and suitability for a wide range of environments. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy and quick connection. The WLS27CR570DSQ offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it resistant to dust, water, and high-pressure water jets. It can operate in ambient air temperatures ranging from -40°C to +70°C. This task light also includes 1 x digital input (12-30Vdc) for color control, has a current consumption of 1.6A, and provides a luminous flux of 220 lm.
Related documents WLS27CR570DSQ Specs
