WLS27CGR-285DSQ Banner Signal Towers
Part#:WLS27CGR-285DSQ
Manufacturer:Banner
Alt. Part#:96491
Product Lifecycle:Active
Get a quick Quote!
WLS27 Dual Color Light Strip; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green (100%) Red (100%); Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CGR-285DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight272.1552 g
- Country Of OriginMX
- Primary Housing Material FDA Copolyester
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 360.0
- Feature: Chemical Resistant Yes
- Mounting Thread No Thread
- Color Technology Standard LED
- Lumens Color 2 200
- Feature: Washdown Rated Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Red
- Environmental Rating IP66; IP67; IP69
- IO Link No
- Product Size (mm) 27
- Lumens Color 1 300
- Supply Voltage 12-30 V dc
- Primary Window Material Copolyester Diffused
- Pro-Editor Compatible (Discrete) No
- Power DC
- Color Option 1 Green
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Power Source DC
- Animation Option 2 Solid On
- Max Op. Temperature (°C) 70
- Feature: Cascade Yes
- Illumination Yes
- Animation Option 1 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Feature: Hazardous Area No
- Wireless No
- Housing Style Linear Strip
- Quick Disconnect Type M12 (Euro)
- Illuminated Length (LxWxH mm) 285.0
- Feature: Audible No
- Number of Colors / Segments 2
- Connection Integral QD
- Max Current Color (mA) 800
- Storage Temp (°C) -40 to 70
- Multi-Color Device Single Color On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CGR-285DSQ Description

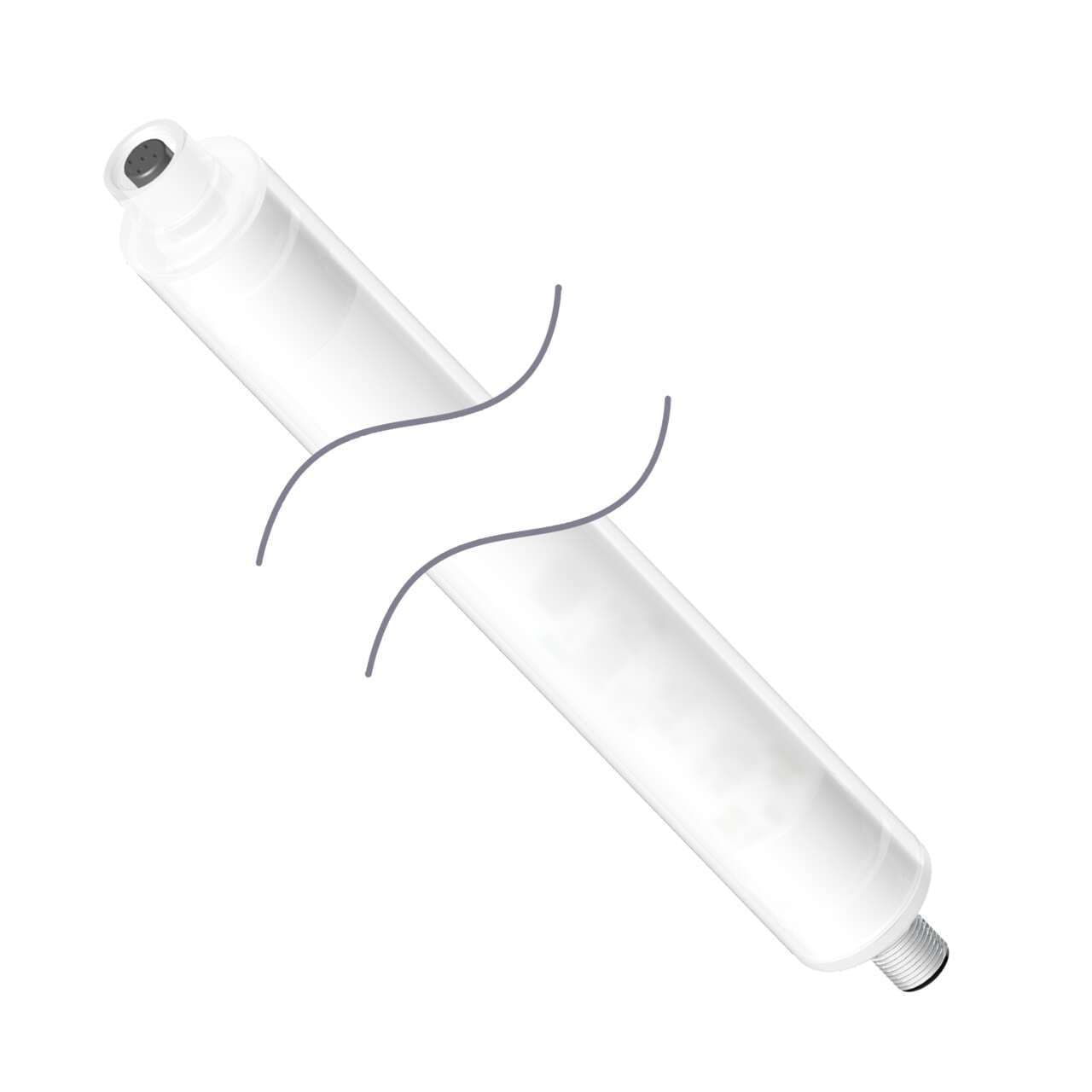

Banner Engineering WLS27CGR-285DSQ is a dual color series industrial sealed LED task light designed for a variety of applications requiring clear illumination. This task light features a diffused window cascadable 2-color G/R color pattern LED illumination, operating on a supply voltage range of 12Vdc to 30Vdc with a nominal 24Vdc. It measures 285mm in length and 27mm in diameter, encased in a copolyester diffused window and FDA-grade copolyester outer housing, maintaining a cylindrical linear strip shape. The WLS27CGR-285DSQ is pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. It offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it suitable for harsh environments. The ambient air temperature for operation ranges from -40°C to +70°C. It includes 2 digital inputs (12-30Vdc) for color control, consumes 800mA of current, and provides a luminous flux of 300 lumens.
Related documents WLS27CGR-285DSQ Specs
