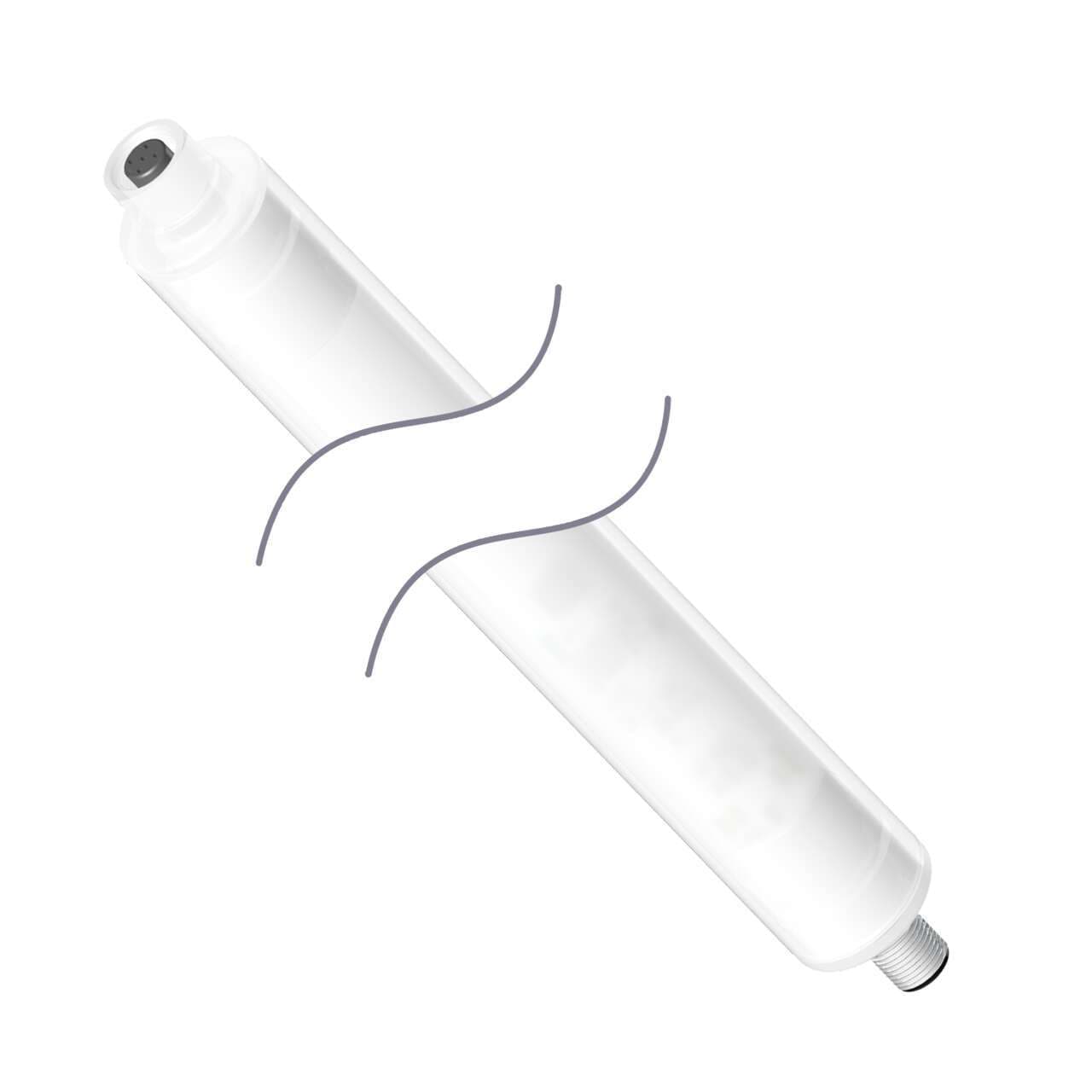

WLS27CGR-1130DSQ Banner Signal Towers
Part#:WLS27CGR-1130DSQ
Manufacturer:Banner
Alt. Part#:802215
Product Lifecycle:Active
Get a quick Quote!
WLS27 Dual Color Light Strip; Length: 1130 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green (100%) Red (100%); Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CGR-1130DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight861.8248 g
- Country Of OriginMX
- Animation Option 1 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 626 nm
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Op. Temperature (°C) 70
- Feature: Chemical Resistant Yes
- Cable Length (m) 2
- Color Option 1 Green
- Supply Voltage 12-30 V dc
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material FDA Copolyester
- Connection Integral QD
- Environmental Rating IP66; IP67; IP69
- Wireless No
- Power DC
- Illumination Yes
- Lumens Color 2 200
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Number of Colors / Segments 2
- Color Option 2 Red
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Mounting Thread No Thread
- Quick Disconnect Type M12 (Euro)
- Illuminated Length (LxWxH mm) 1130.0
- Feature: Cascade Yes
- Power Source DC
- Product Size (mm) 27
- Number of Input Pins/Conductors 4
- Max Current Color (mA) 800
- IO Link No
- Color Technology Standard LED
- Animation Option 2 Solid On
- Feature: Washdown Rated Yes
- Multi-Color Device Single Color On
- Housing Style Linear Strip
- Lumens Color 1 300
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 1192.5
- Primary Window Material Copolyester Diffused
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CGR-1130DSQ Description
Banner Engineering WLS27CGR-1130DSQ is a dual color series industrial sealed LED task light designed for a variety of applications. This task light features a diffused window cascadable 2-color G/R color pattern LED illumination, suitable for providing clear visibility in industrial environments. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L1130mm x D27mm, and it is constructed with a copolyester diffused window and FDA-grade copolyester outer housing, ensuring durability and compliance with health standards. The cylindrical linear strip has a diameter of 27mm and comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. It offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it resistant to dust, water, and high-pressure washdowns. The ambient air temperature for operation ranges from -40°C to +70°C, accommodating a wide range of environmental conditions. This model includes 2 x digital inputs (12-30Vdc) for color control, consumes 3.2A of current, and provides a luminous flux of 300 lm (lumens), ensuring adequate lighting for tasks.
Related documents WLS27CGR-1130DSQ Specs
