WLS27CG2R2-285DSQ Banner Signal Towers
Part#:WLS27CG2R2-285DSQ
Manufacturer:Banner
Alt. Part#:802201
Product Lifecycle:Active
Get a quick Quote!
WLS27 Dual Color Light Strip; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP66; IP67; IP69K; Colors: Green (50%); Red (50%); Cascadable; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLS27CG2R2-285DSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight272.1552 g
- Country Of OriginMX
- Housing Style Linear Strip
- Lumens Color 1 150
- Physical Dimensions (LxWxH or DxH mm) 27.0 x 360.0
- Min Op. Temperature (°C) -40
- Mounting Thread No Thread
- Connection Integral QD
- Illuminated Length (LxWxH mm) 285.0
- Feature: Audible No
- Primary Housing Material FDA Copolyester
- Animation Option 1 Solid On
- Max Current Color (mA) 800
- Feature: Hazardous Area No
- Power Source DC
- Color Technology Standard LED
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Primary Window Material Copolyester Diffused
- Wireless No
- Power DC
- Color Option 1 Green
- Animation Option 2 Solid On
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Illumination Yes
- Color Option 2 Red
- Feature: Washdown Rated Yes
- Feature: Quick Disconnect Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Number of Input Pins/Conductors 4
- Feature: Chemical Resistant Yes
- Supply Voltage 12-30 V dc
- Feature: Cascade Yes
- Product Size (mm) 27
- Cable Length (m) 9
- Lumens Color 2 100
- Max Op. Temperature (°C) 70
- IO Link No
- Number of Colors / Segments 2
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Environmental Rating IP66; IP67; IP69
- Multi-Color Device Single Color On
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLS27CG2R2-285DSQ Description

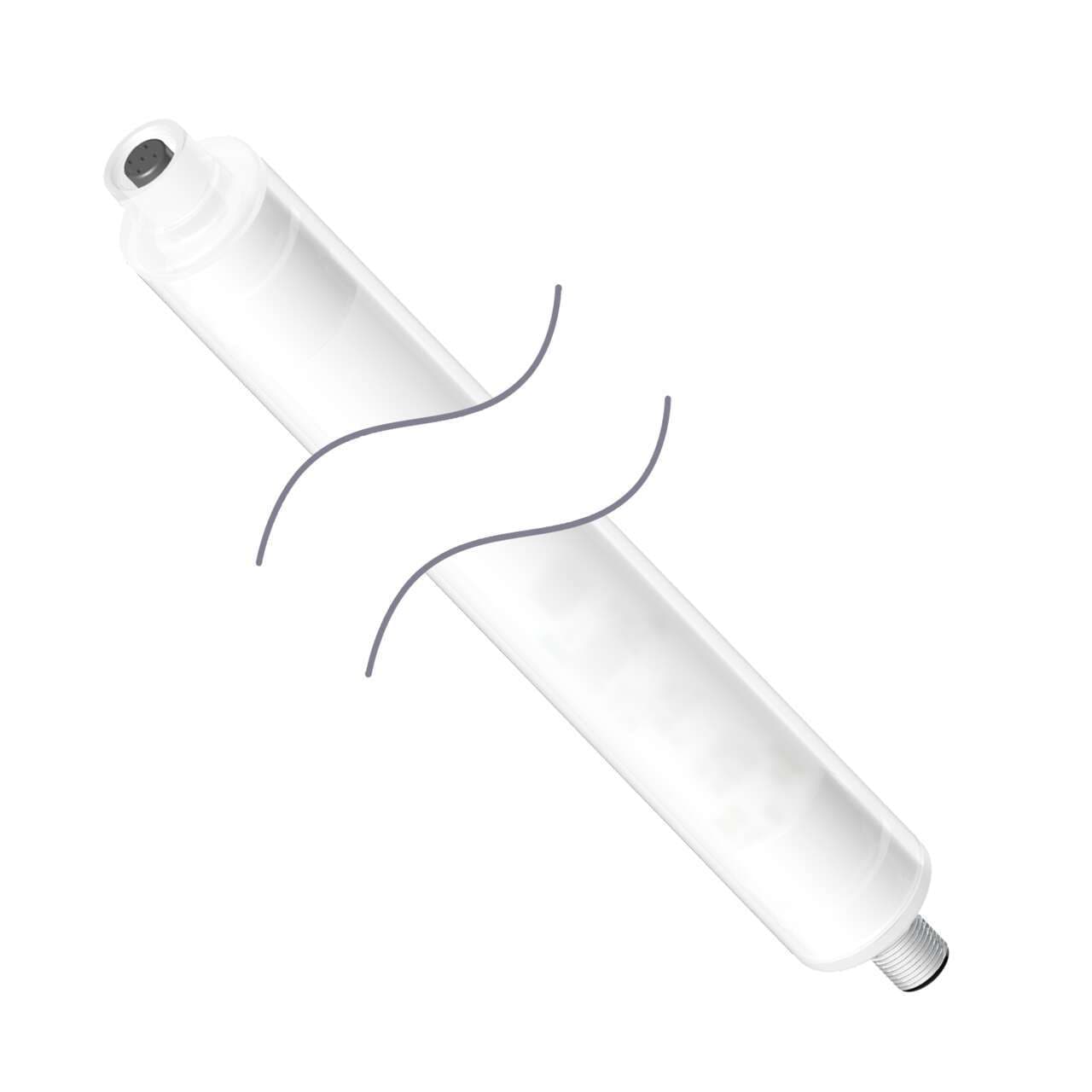

Banner Engineering WLS27CG2R2-285DSQ is an industrial sealed LED task light designed for a variety of applications requiring dual-color illumination. This part of the Dual Color Series features a diffused window cascadable 2-color G2(50%)/R2(50%) color pattern LED illumination, operating on a supply voltage range of 12Vdc-30Vdc with a nominal 24Vdc. It measures L285mm x D27mm with a 27mm tube diameter, constructed from FDA-grade copolyester for both the diffused window and the outer housing, ensuring durability and compliance for use in sensitive environments. The light is pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation and features a cylindrical linear strip shape. It offers a high degree of protection with ratings of IP66, IP67, and IP69K, making it suitable for use in harsh conditions. The operating ambient air temperature range is from -40°C to +70°C. It includes 2 x digital inputs (12-30Vdc) for color control, consumes 800mA of current, and provides a luminous flux of 150 lumens.
Related documents WLS27CG2R2-285DSQ Specs
